HAILIJU High end panel saw
Panel Saw 45 Degree Panel Saw Wood Cutting Saw High end panel saw
High end panel saw
High end panel saw
Product parameter
Machine name Ordinary 45 cutting saw Maximum sawing length 3200mm
Maximum saw blade width 1250mm Main saw motor power 4kw
Small motor power 0.75kw Gross power 5.5kw
product size 3200*1100*900mm Saw blade speed 7000-8000r/min
Maximum sawing thickness 80mm Main saw blade diameter 250-300mm
Main saw shaft speed 4000-6000r/min Spindle diameter 30mm
Slot saw blade size outside 120mminside20mm Main saw blade size outside 300mminside30mm
Saw blade angle 0-45˚ Thickness of fuselage 4mm
Large auxiliary platform 720*480 Small auxiliary platform 600*480
High end panel saw
Product details

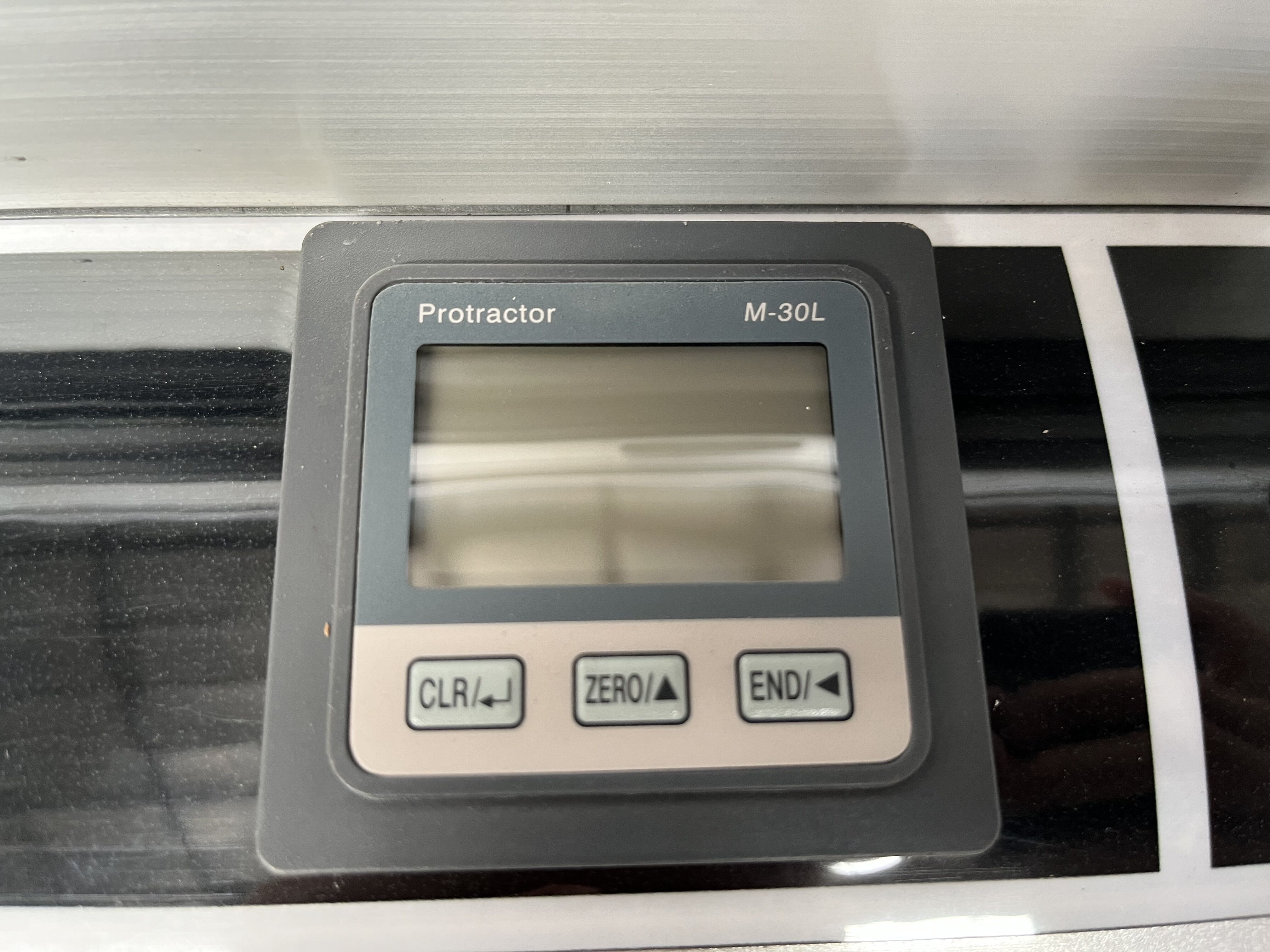

01. Digital display
High digital display can accurately display the angle of saw blade, saving workers' time and being more accurate.

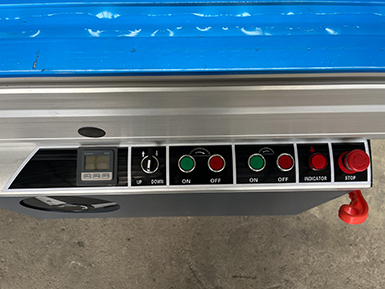

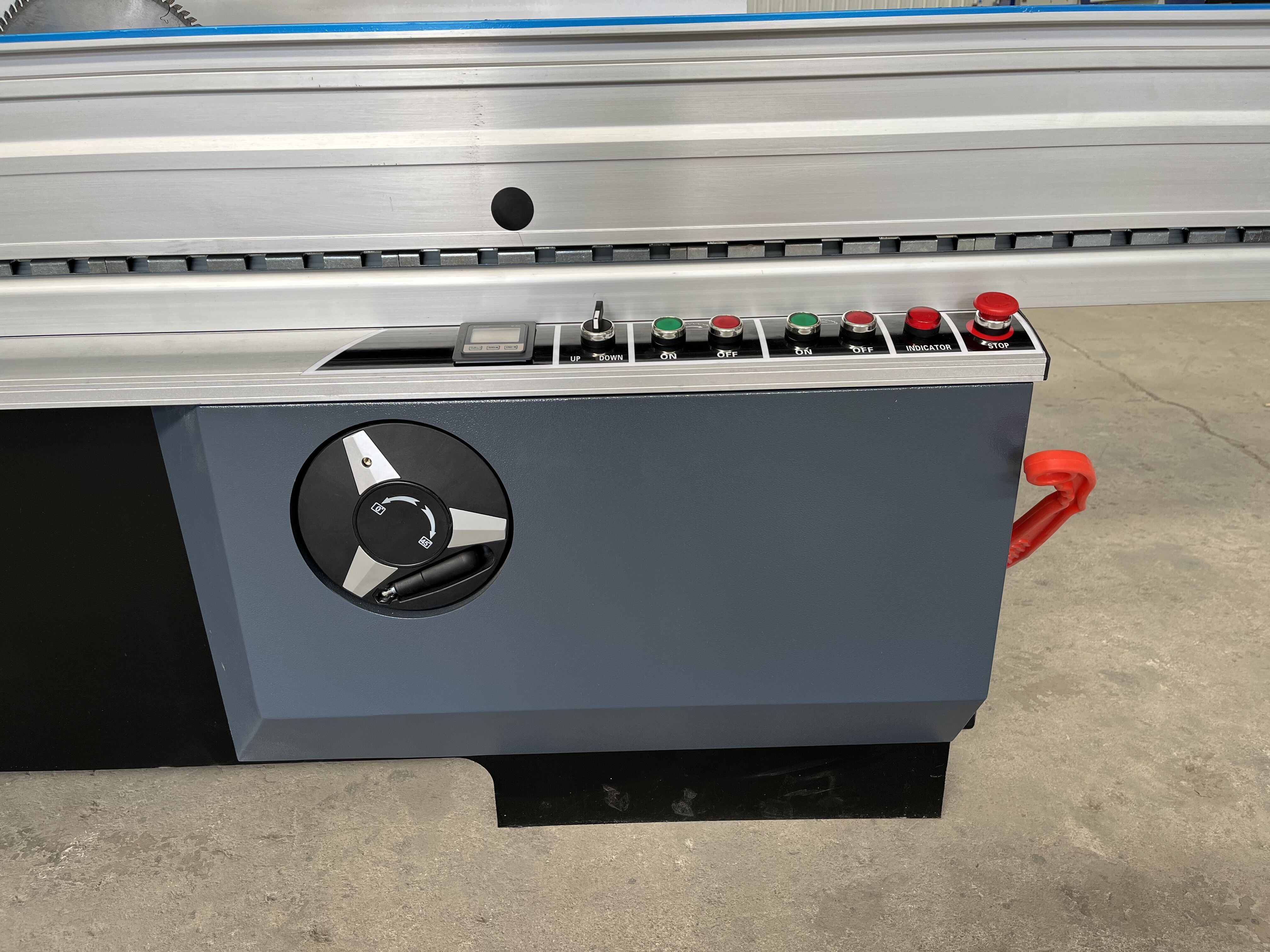

02. Control panel
Digital display plus electric lifting saw blade, and CHINT switch have long service life and high quality.
03.45 degree tilt angle crank
The crank with a 45-degree tilt angle can stop at the 0-90 angle you need. Through the digital display,the precise angle displayed is used for cutting. The error can be controlled at 0.001 degree.
04. European heavy-duty pusher
European thickened heavy-duty pusher, the precision error of pusher is strictly controlled below 20 wires.The design of the corner under the pusher greatly increases the running stability and bearing pressure of the pusher,and the material specification and accuracy of use strictly meet the European export standards.The service life of the pusher is more than 8 years, which is twice that of the ordinary standard pusher.
05. Push the table
The push table adopts the famous domestic brand Yongli push table with 3.2m European seat, which has high strength,is not easy to deform, and has a plated round rod structure, which is treated by oxidation with high strength and has a long service life.

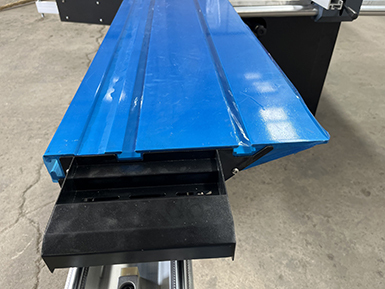

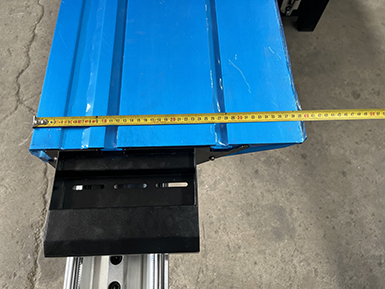

06. Innovation and upgrading
Upgrade the innovative "double-layer widened push table" and adopt the 375mm double-layer push table at 90 degrees;At 45 degrees, a 390mm(415mm) double-layer pusher is used. The load-bearing capacity is increased to 150KG,and the accuracy of running stability in plate cutting is greatly improved compared with the common single-layer pusher.

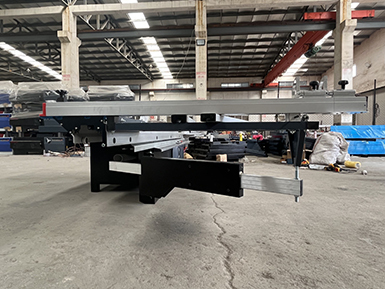

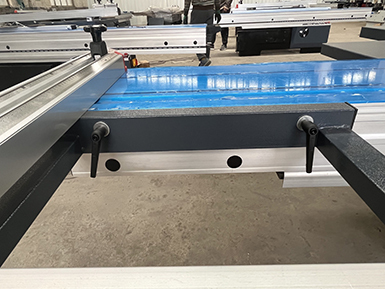

07. Adopt gantry milling.
Working platform base
The pedestal of the pusher is processed by gantry milling with export standard, and the pedestal is milled flat at one time to ensure that there will be no error and jitter on the body of the pusher. High precision and long service life.
08. European standard ruler
European standard ruler, aluminum alloy lifting baffle, more accurate size positioning.

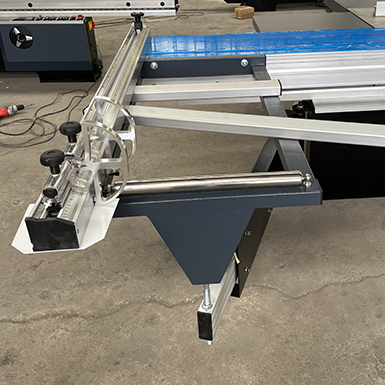

09. European backrest
The ruler adopts the big European ruler, which is stable and does not shift, effectively ensuring the precision in the plate cutting project;
The mold base (also called the backing) adopts a new internal stable structure, which ensures the stability and smooth pushing of the backing.
10. Aluminum core pulling
Aluminum core-pulling is not easy to deform, which makes the pushing table smoother, and the cutting is more accurate and stable.
11. Adjustable handle
Adjustable handle, convenient for users to adjust the material support.

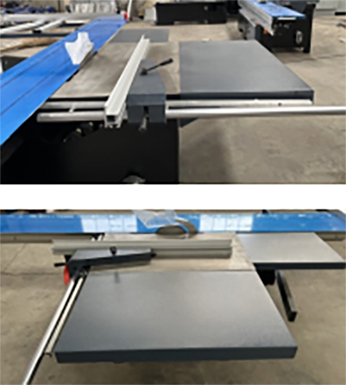

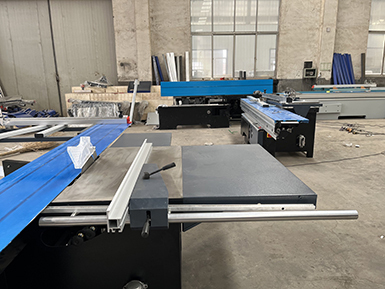

12. Auxiliary workbench
Equipped with the full-size auxiliary workbench, the 1.3-meter long polished rod and the extended template seat can realize the larger-size cutting of the auxiliary workbench, better fix the centering ruler and ensure the stability of cutting.

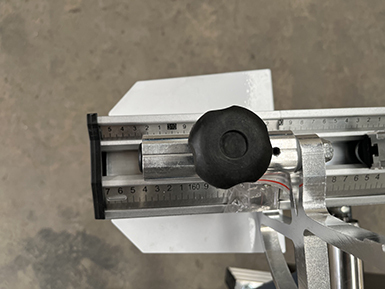

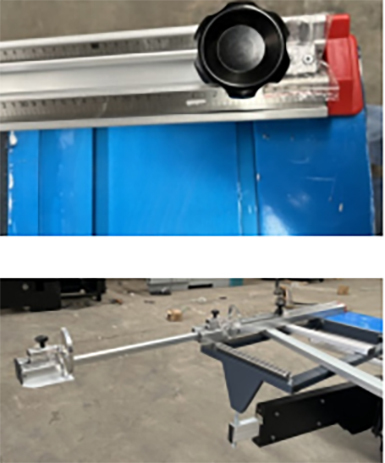

13. Adjusting hand wheel for length of ruler
After loosening, you can freely depend on the ruler length according to the customer's needs,and the longest length can reach 3.15m..Use is more convenient.
14. Plate Fixer
It can be fixed in a certain position according to different plates cut, making cutting more convenient and accurate.

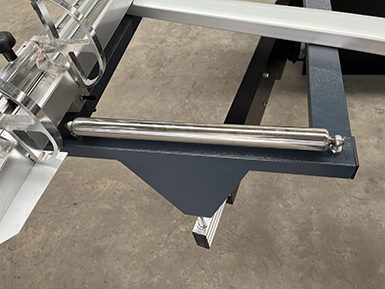

15. Material supporting roller
The material supporting roller makes it effortless to support materials and can move freely.

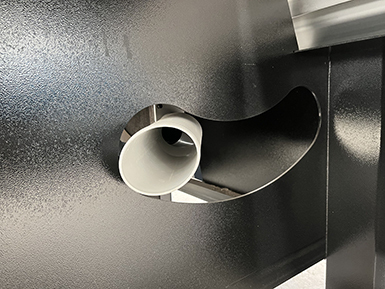

16. Dust suction port
The dust suction port can be equipped with a special vacuum cleaner according to customers' needs to remove dust,so that the production environment is clean and sanitary, and the fire wind can be reduced.

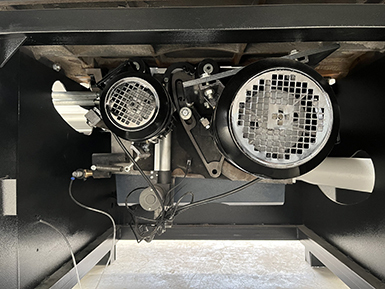

17. Upgrade the big motor
The machines are all made of pure copper motors. By default, the main motor is 4KW, and the auxiliary motor is 0.75KM,with total power.If you need to cut hard wood and other plates, you can freely customize the 5.5KM+1.1W big motor.

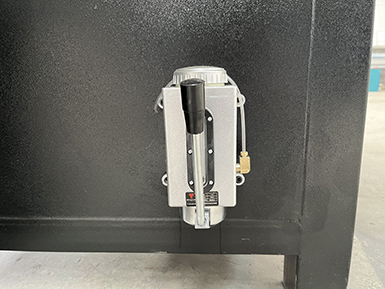

18. Automatic oil filling
The internal structure is equipped with oil lubrication, which can control the linear guide rail and lead screw of motor lifting and tilting. Effectively prevent its corrosion and aging, and prolong the service life of the machine.

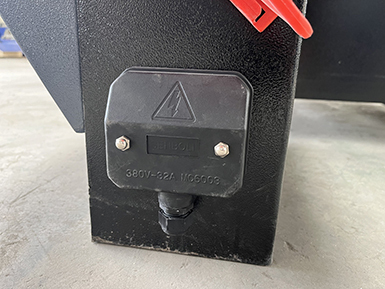

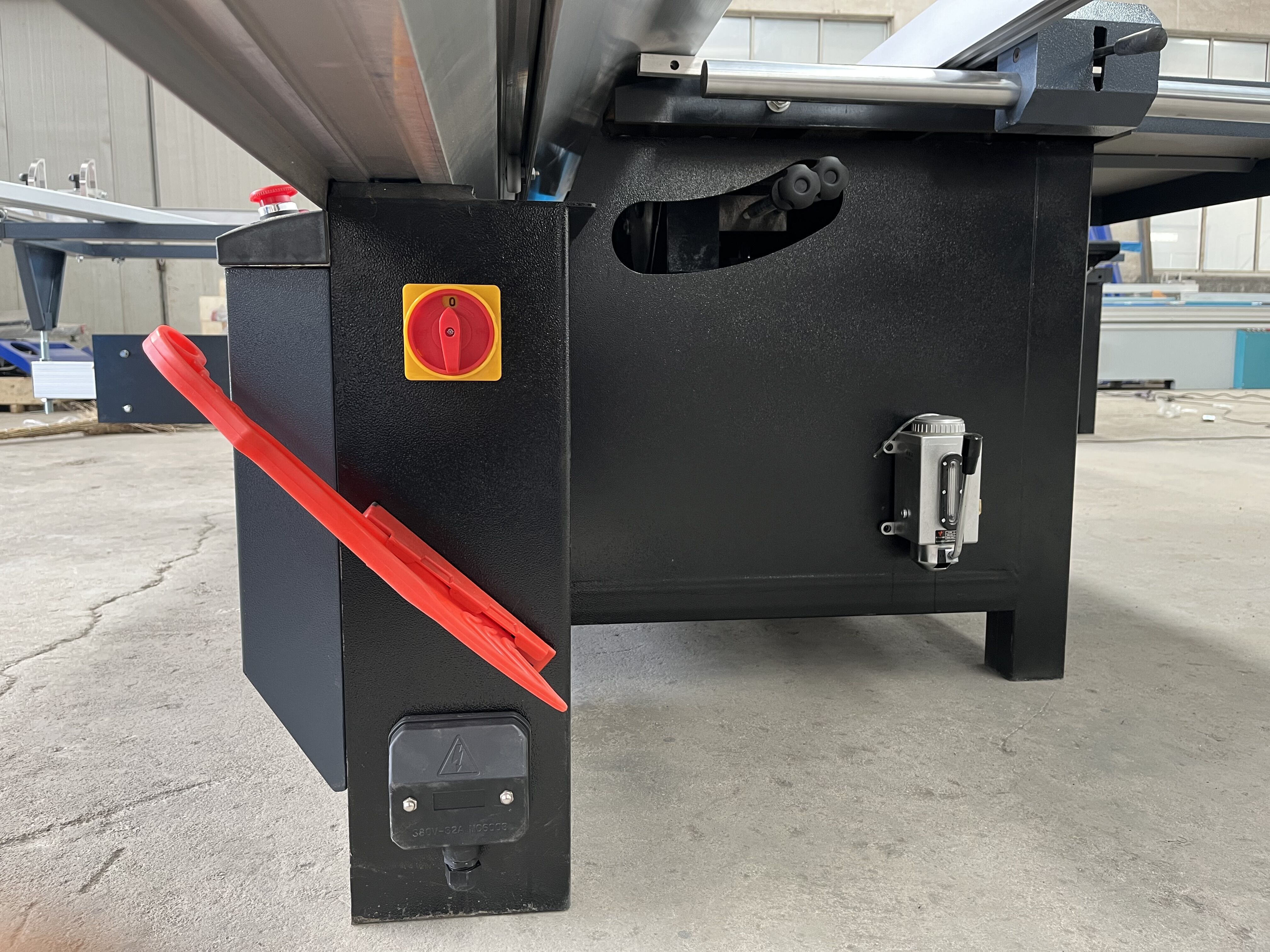

19. Double connection port of main power vacuum cleaner
The vacuum cleaner can be connected to the machine, and the switch of the vacuum cleaner can be controlled by a cutting saw,so that the operation is more humanized.

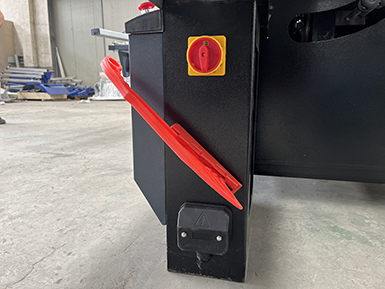

20. Plastic pusher knife
This can keep your hands away from the blade and prevent accidental injury caused by wrong operation.
