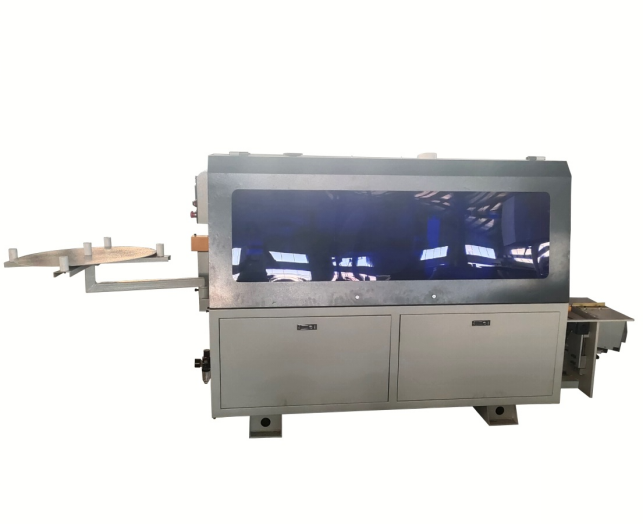

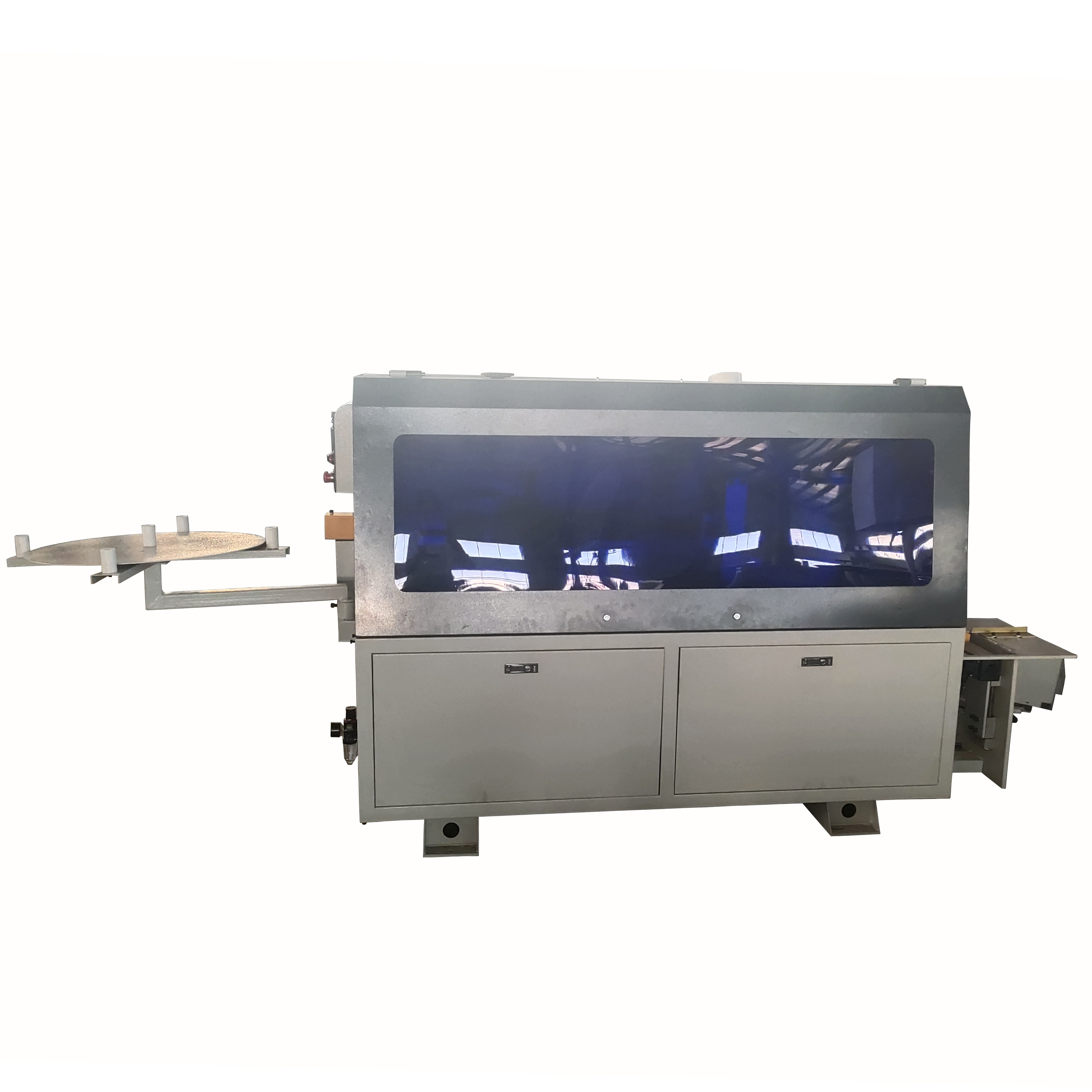

HAILIJU Semi automatic edge banding machine 215t
Semi automatic edge banding machine
Semi automatic edge banding machine
Product parameters
Name of commodity automatic edge banding machine Equipment size 6000*900*1600mm
Machine weight 1200KG Edge thickness 0.3-3mm
Workpiece thickness 8-60mm Minimum length of workpiece 70mm
Workpiece 9conveying speed 18-24m/min Minimum workpiece width 45mm
Gross power 16.9kw Atmospheric pressure 0.6mpa-0.8mpa
Heating power of glue box 18-24m/min Preheating power of plate 0.3kw
Rubber box transmission power 0.55kw Motor power of conveyor belt 1.5kw
Pre-milling motor power 2.2kw*2 Motor power 0.55KW*2 12000R/MIN.200HZ
Copying tracking motor power 0.37kw*2 Roughing motor power 0.75KW*2 12000R/MIN.200HZ
Polishing motor power 0.18KW*2 Finishing motor power 0.75KW*2 12000R/MIN.200HZ

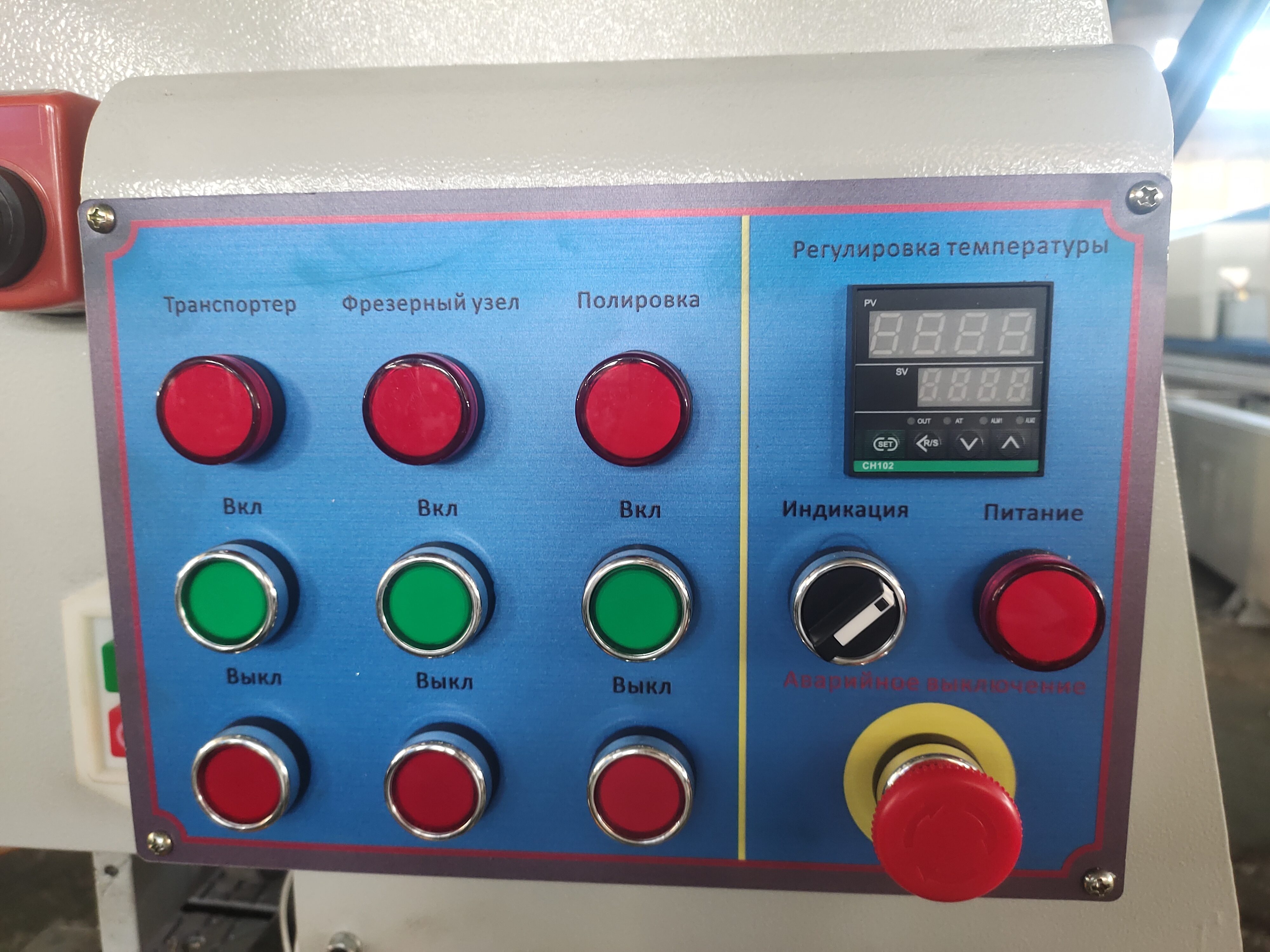

01.Control touch panel
The machine adopts imported control panel, with clear interface, simple operation and durability, so as to improve the working stability of the machine.
02.Edge sealing gluing device
The preheating gluing device of the electrical system makes the gluing of the edge sealing plate and the edge sealing material uniform through a special mechanism to ensure more firm adhesion.

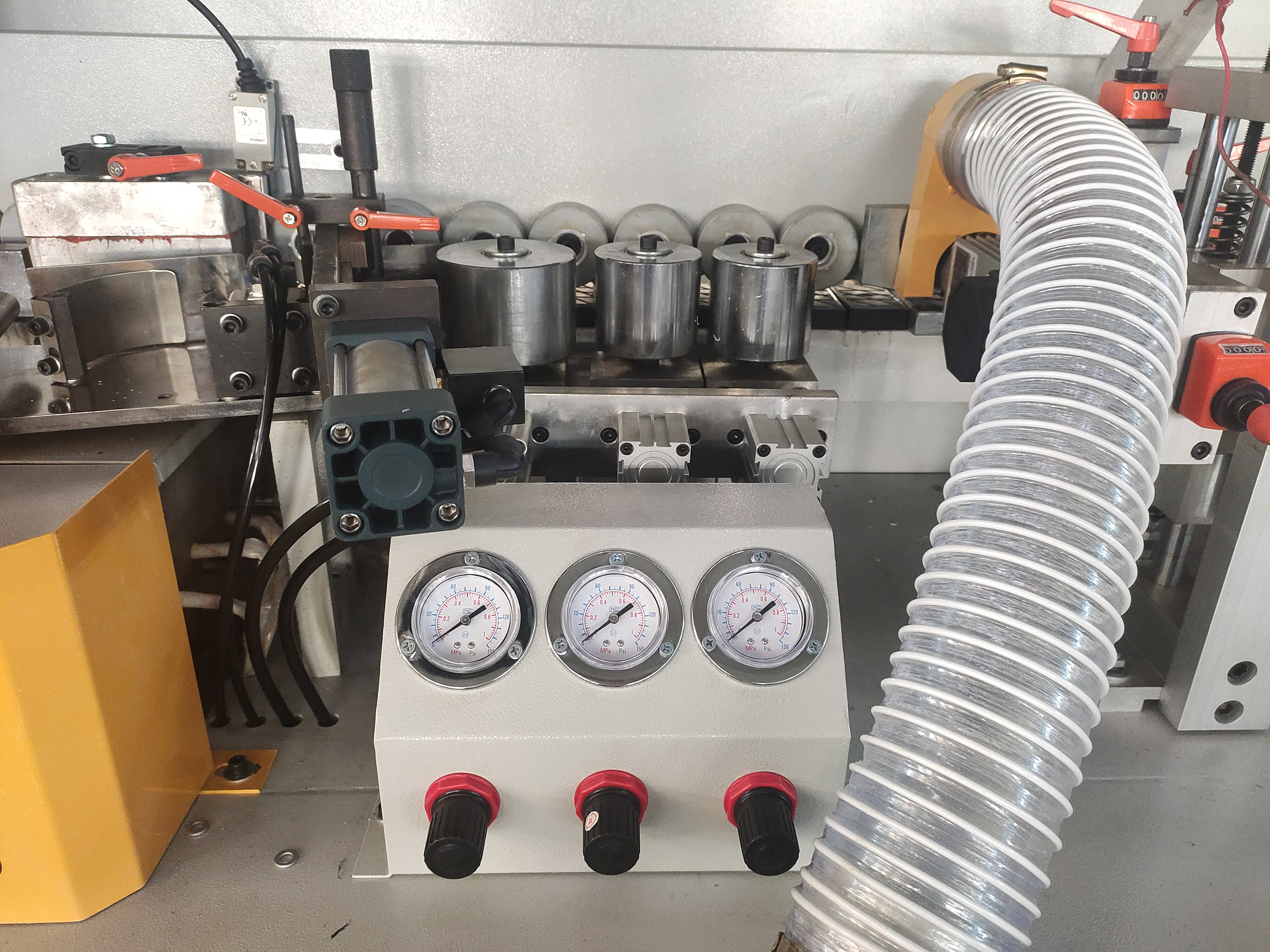

03.Edge pressing device
The spiral structure of the worktable sends glue, and the edge sealing strip and plate are pressed and pasted more firmly through the pressing wheel.

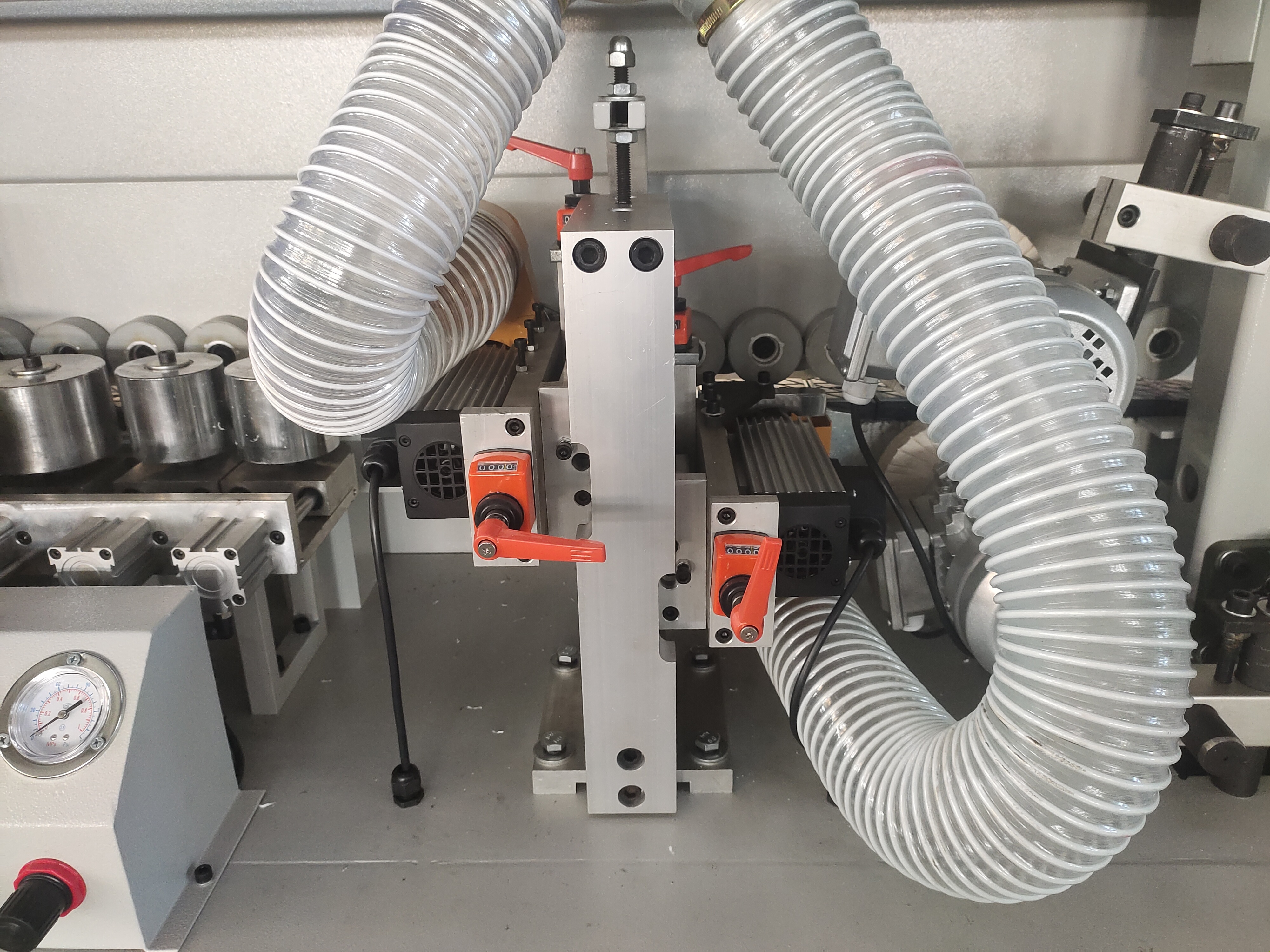

04.Hardcover repair
The precision trimming knife is used for precision trimming, and the high-speed motor realizes fast cutting to ensure the trimming effect.

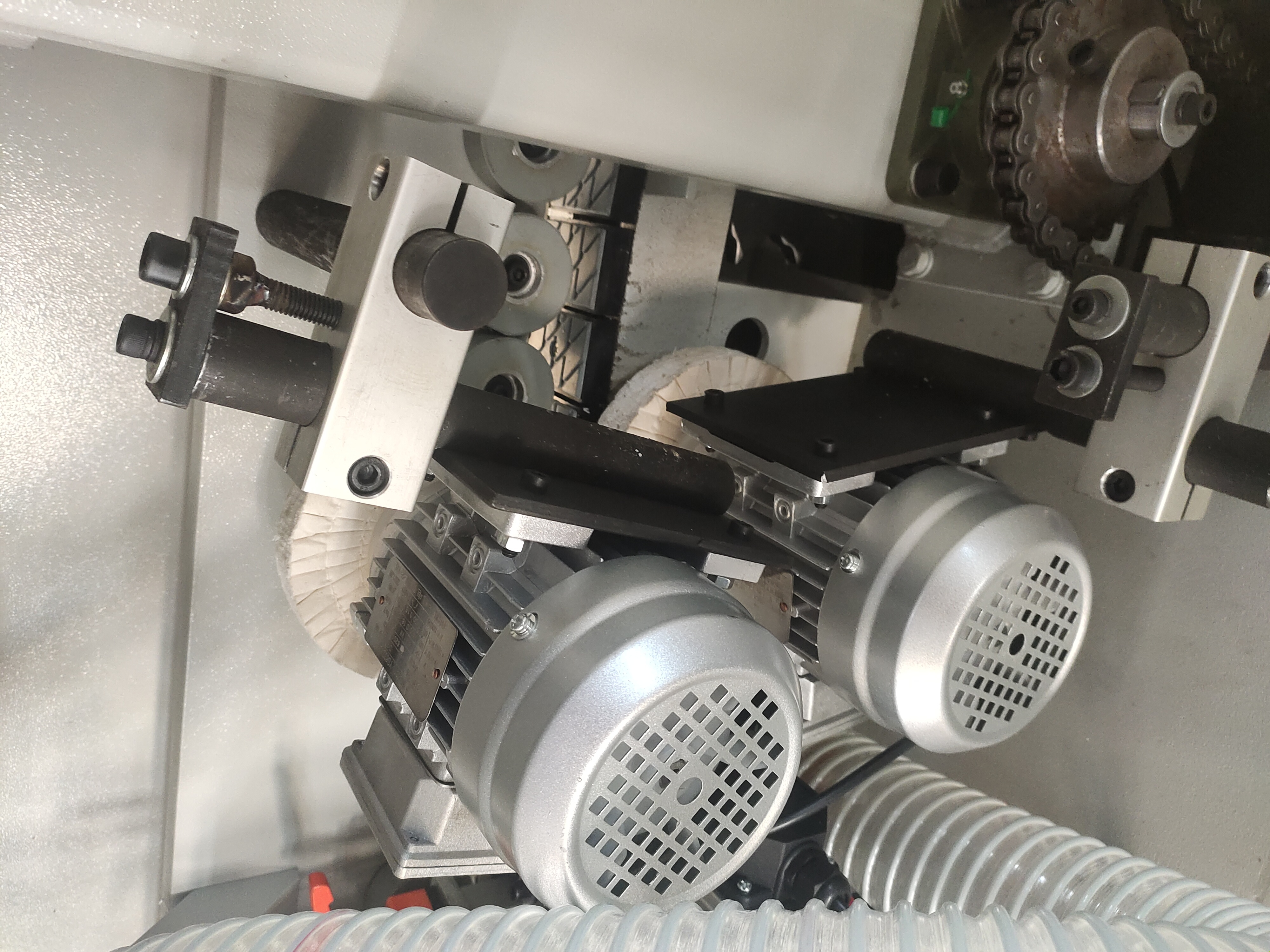

05.Cotton polishing machine
The advanced cotton polishing wheel is used to polish, polish and trim the plate to remove excess glue stains and burrs, so as to make the edge sealing effect of the plate more natural, and the edge sealing strip is integrate with the plate。
06.Preheat
The preheating plate is equipped with simple preheating button, which is easy to operate and use.

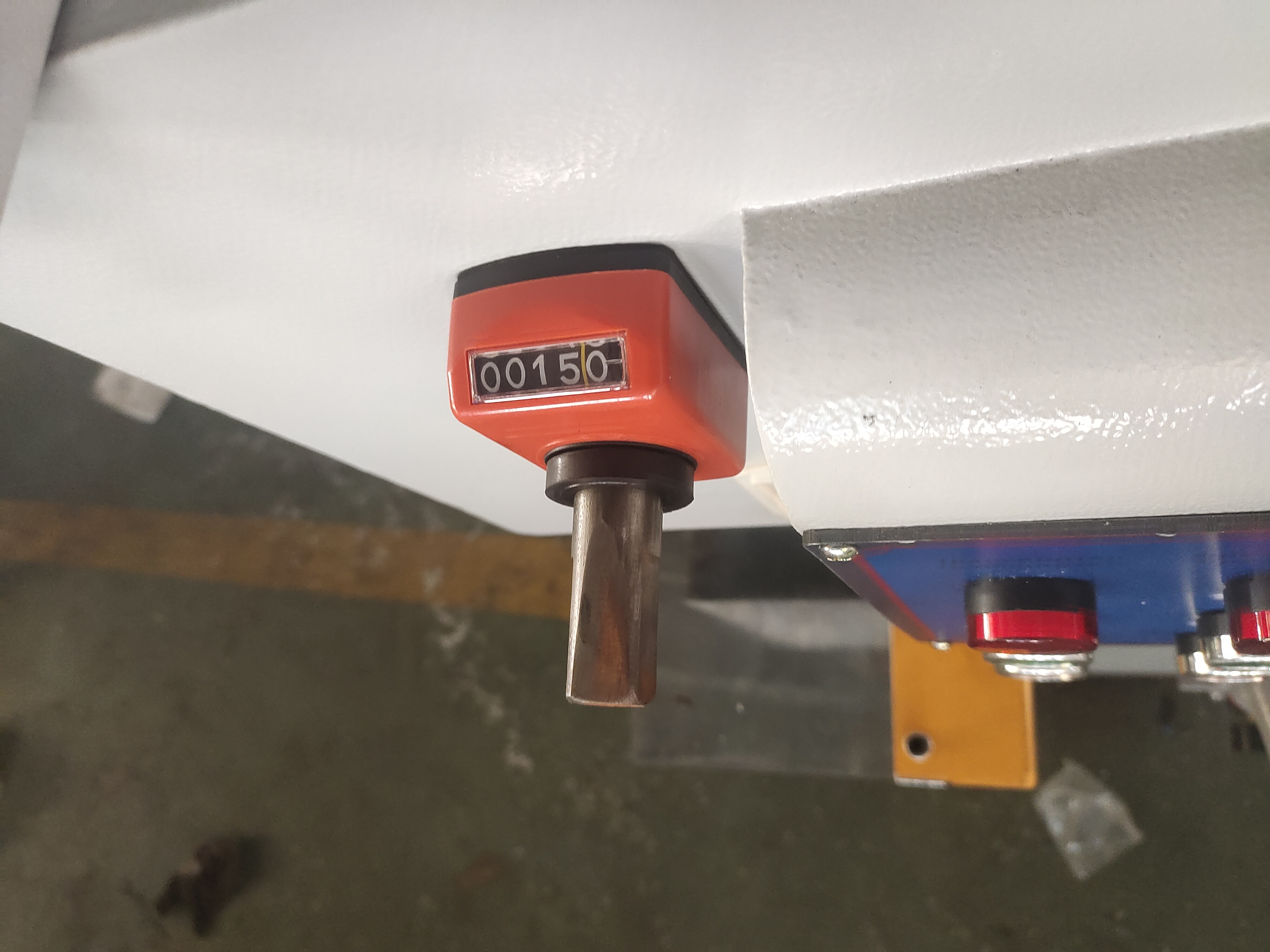

07.Pressure beam lifting
The pressure beam lifting is equipped with digital display, and the thickness can be switched according to the plate at will.

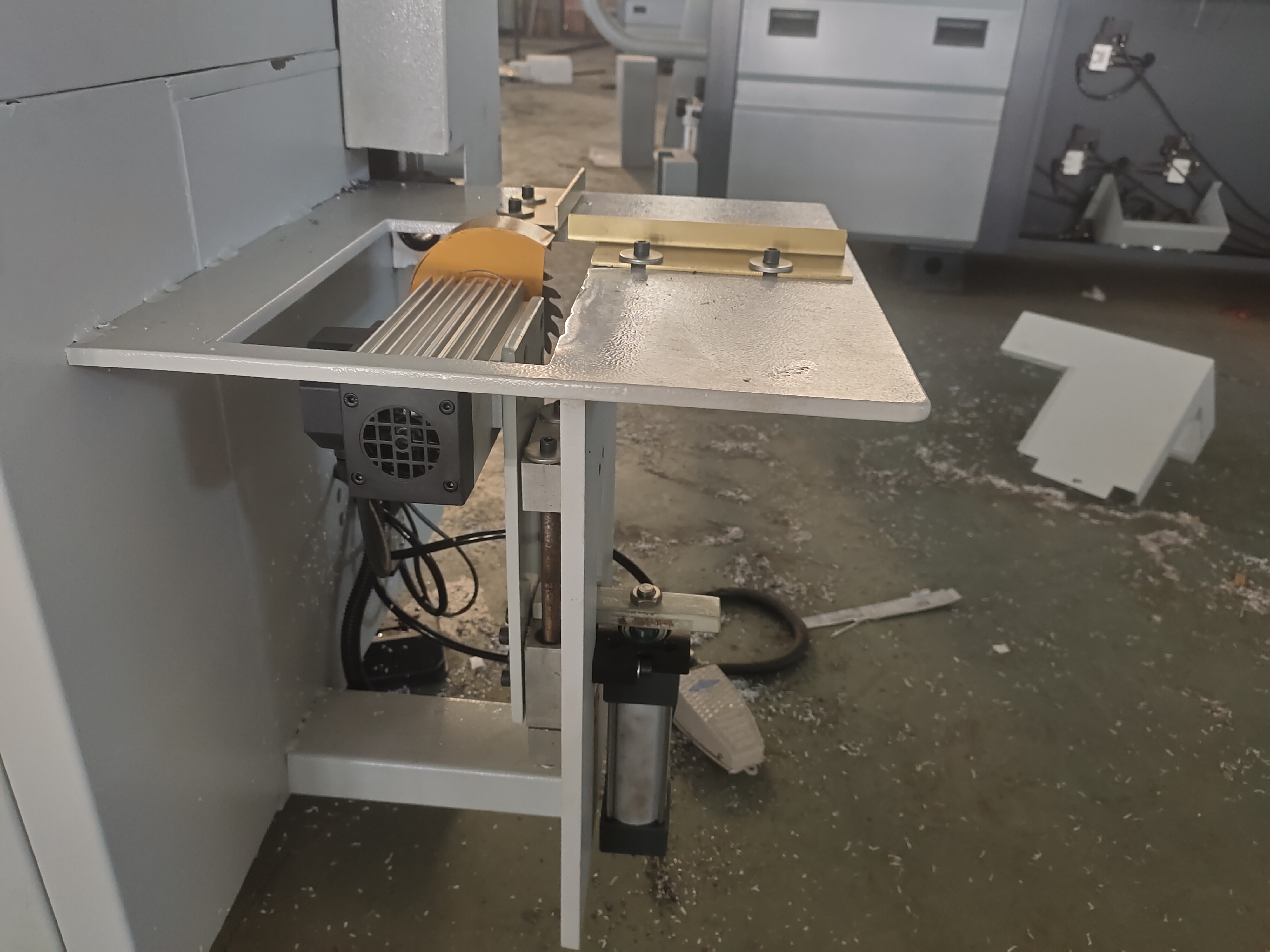

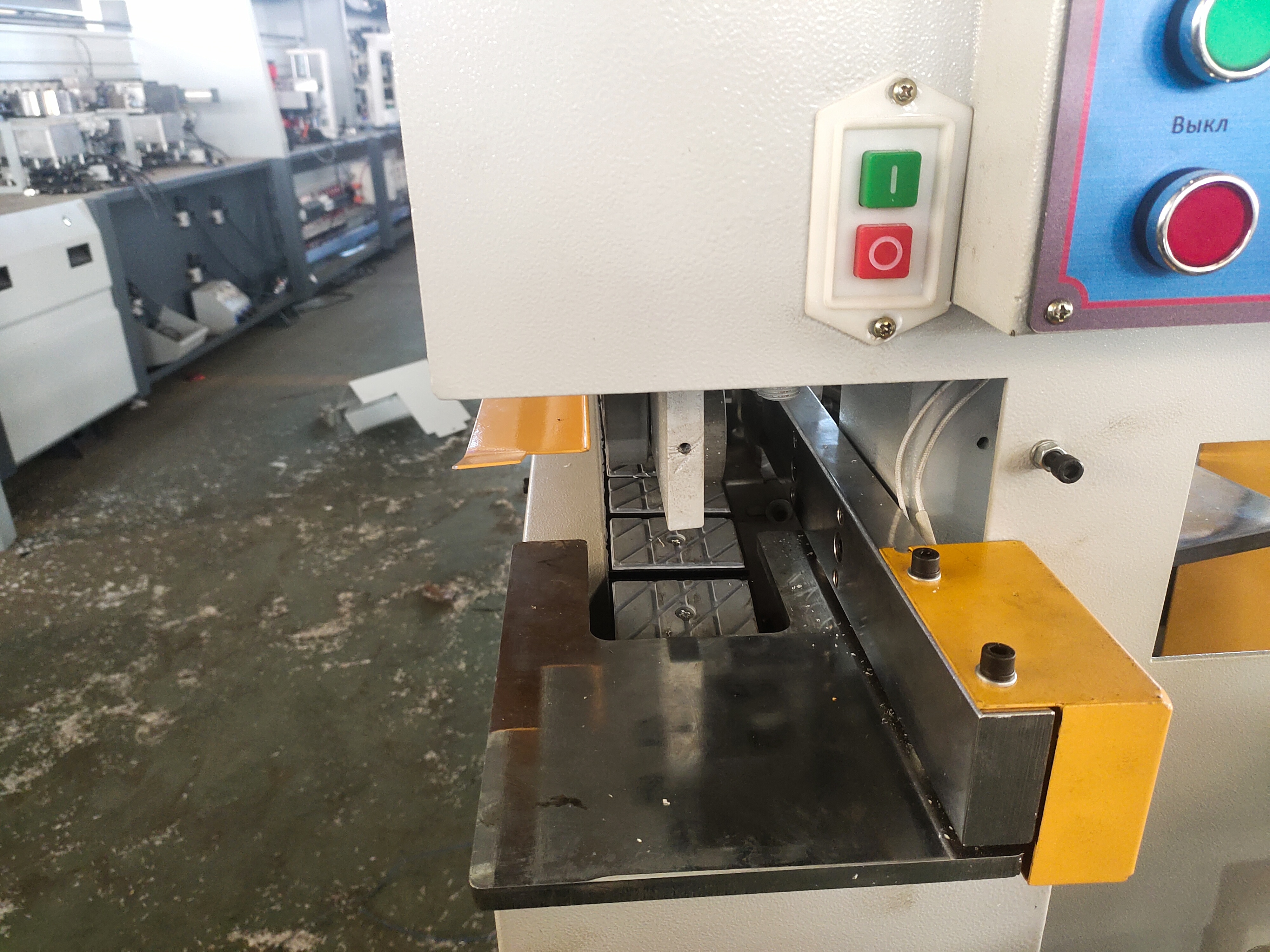

08.Motor manual edge cutting
This kind of machine have a motor edge cutting it with a inverter control for that, other company not have inverter. Inverter insurance this machine long life and use convenient.
