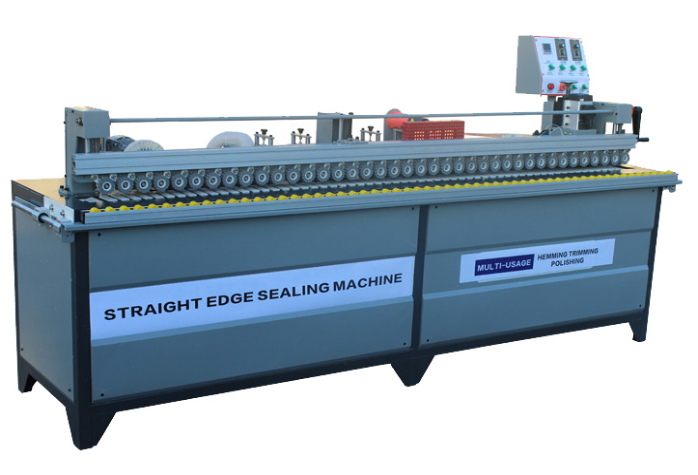

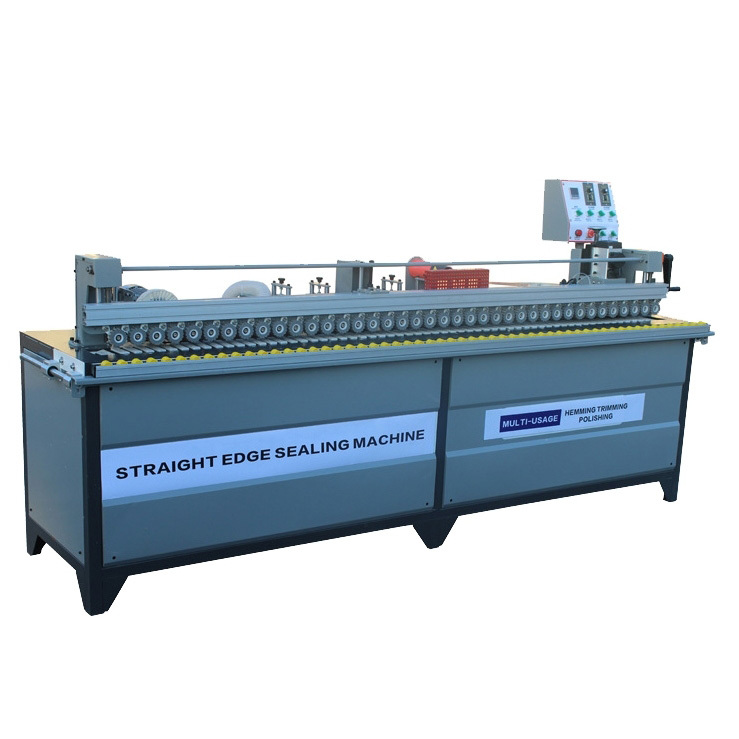

HAILIJU Oblique linear edge banding machine
Oblique linear edge banding machine
Oblique linear edge banding machine
Product parameters
Supply voltage three-phase 380V 50HZ Total power 11KW
Air Pressure 0.5-0.7Mpa Heating power 2000W*2
Pre milling motor 380V 2200W Trimming motor 380V 2200W（2 individual）
Equipment weight 430KG Polishing motor 380V 400W（2 individual）
Glue pot capacity 4000ml Slope angle 30˚-90˚
Plate thickness 5CM Edge banding speed 0-12m/min
Equipment size 2990*650*1300mm Machine features inclined straight dual-purpose edge sealing, trimming and polishing plate hot air gun design,
feeding auxiliary pulley, automatic head and tail alignment,
plate 45 degree pre milling edge sealing belt slotting
Oblique linear edge banding machine
Product details and function introduction

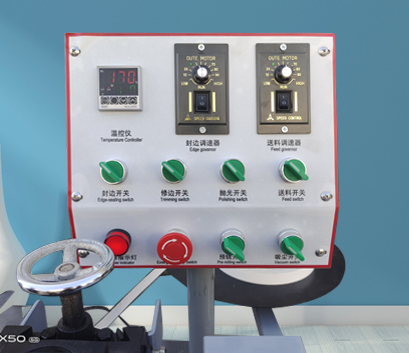

01. CNC control panel
CNC operation, one key start, temperature monitoring at any time.

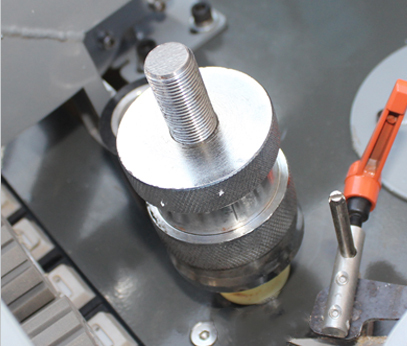

02. Fitting wheel
When sealing the edge of the plate, prevent the edge banding belt from deviation,so that the edge banding belt can better bond the plate.

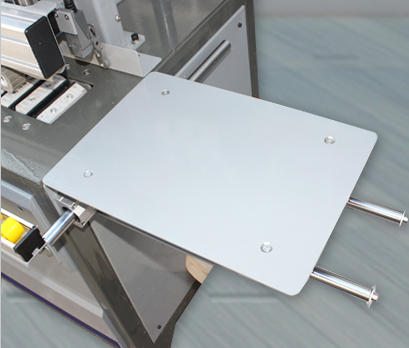

03. Extended auxiliary plate
No fear of large size.

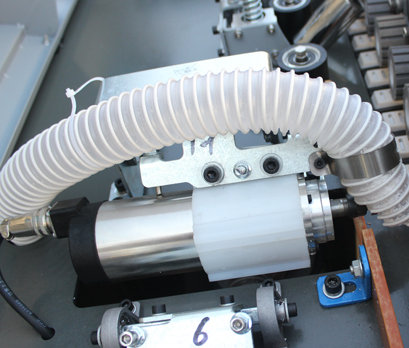

04. Strong dust collection
Strong dust collection, clean and environmental protection, environmental protection.

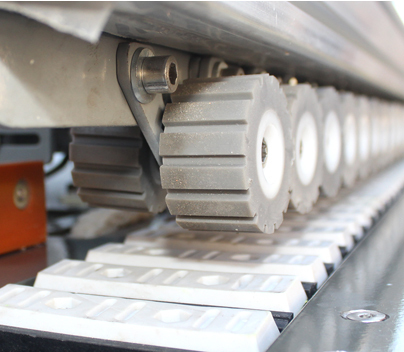

05. Double row pressing wheel
Transmission does not deviate.
Oblique linear edge banding machine
Certificate
