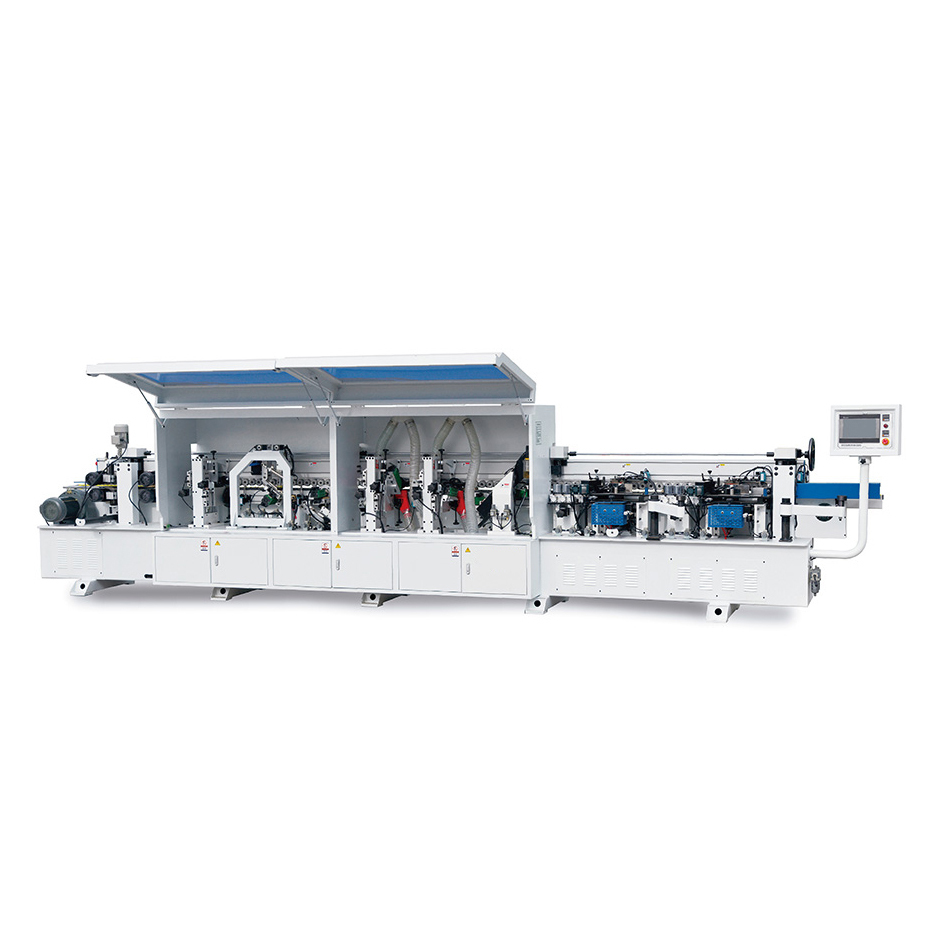

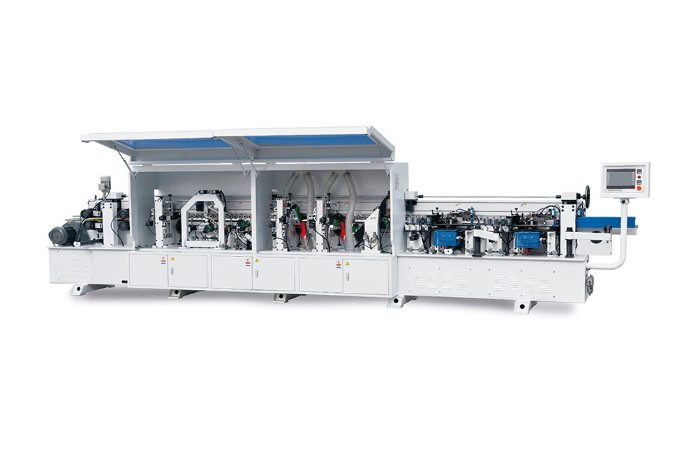

HAILIJU High quality edge banding machine
High quality edge banding machine
High quality edge banding machine
Product parameter
Product name Automatic edge banding machine Working air pressure 0.6Mpa
Panel thickness 8-60MM Machine size 2500*900*1600mm
Min working width ≥45mm Feeder speed 18-24m/min
Min working length ≥70mm Total power 16Kw
Edge bander thickness 0.3-3mm Weight 1800Kg(1.8T)
Voltage 380v/50hz Min edge banding thickness 45mm
High quality edge banding machine
Detailed function introduction

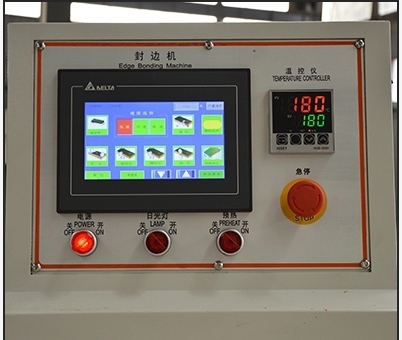

01.PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

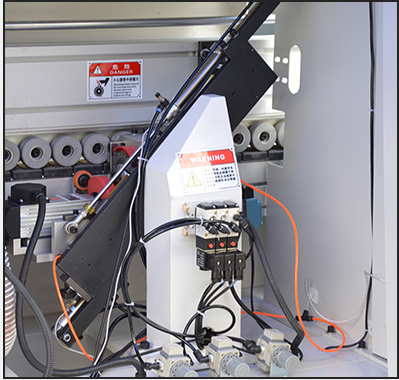

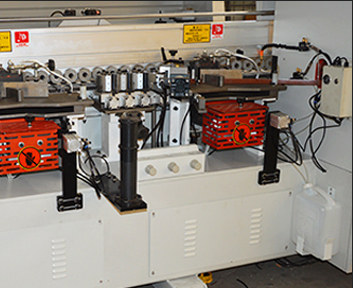

02. Adhesive tape
It is equipped with 2 sets of gluing and pressing devices, which are heated by the glue pot and glued by the imported scientific and technological structure to make the gluing of the rubber plate and the edge banding strip uniform. The edge banding strip and the plate are pressed by the pressure roller and bonded firmly.

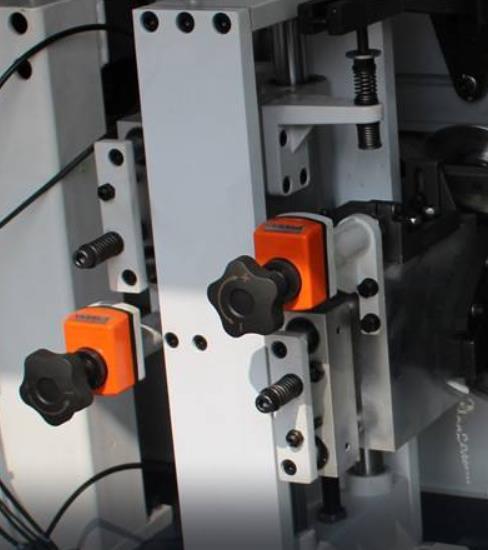

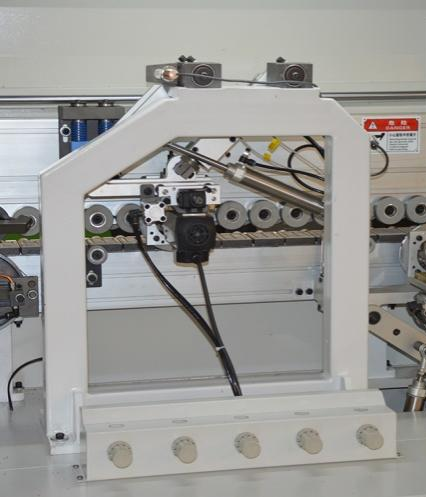

03.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

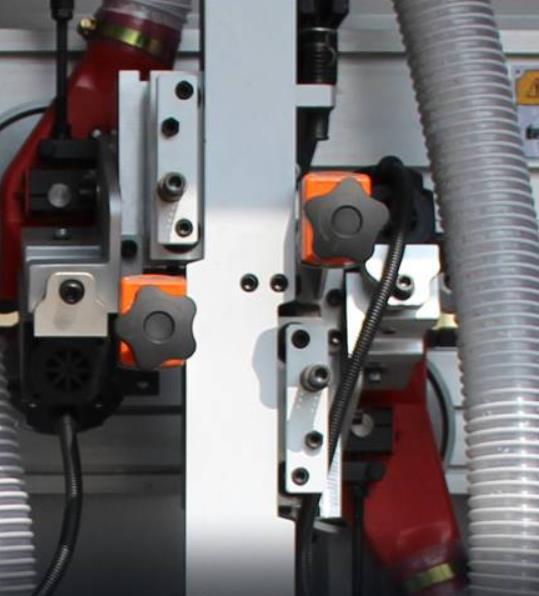

04. Rough repair device
Adopt the structure of automatic follow-up of profiling and high-frequency high-speed motor to repair the upper and lower redundant parts of the processing plate edge banding belt.

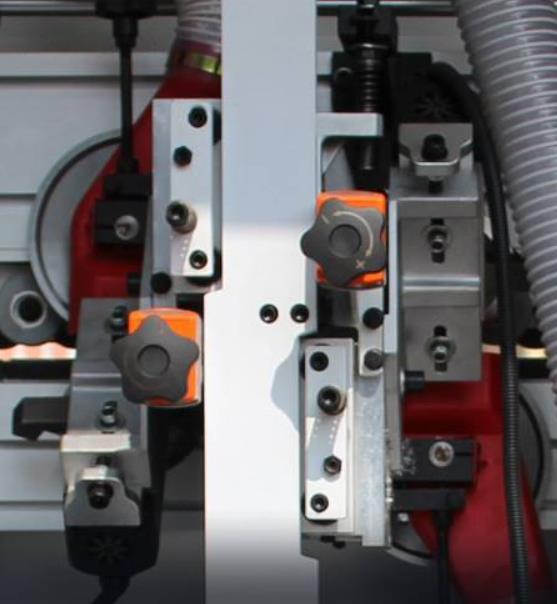

05.Finishing device
Repair the upper and lower redundant parts of the edge banding belt of the processed plate, and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.
06.Profiling tracking chamfer
The profiling tracking chamfering device can make the section of the plate smoother and make the plate look more atmospheric.
07.Edge scraping device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process, so as to make the upper and lower parts of the plate more smooth and tidy.

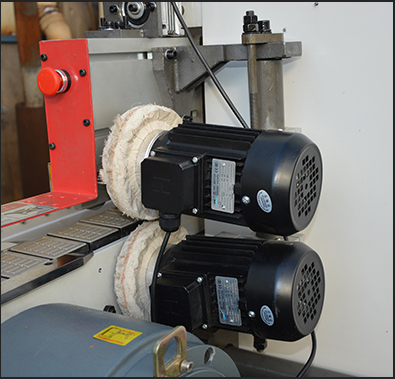

08.Polishing device
Clean the processed plate with a cotton polishing wheel to remove the excess glue, and make the edge sealing end smoother by polishing.
09.Conveying motor
High power pure copper movement transmission motor, gear reducer, large torque, stable transmission.
High quality edge banding machine
Certification
