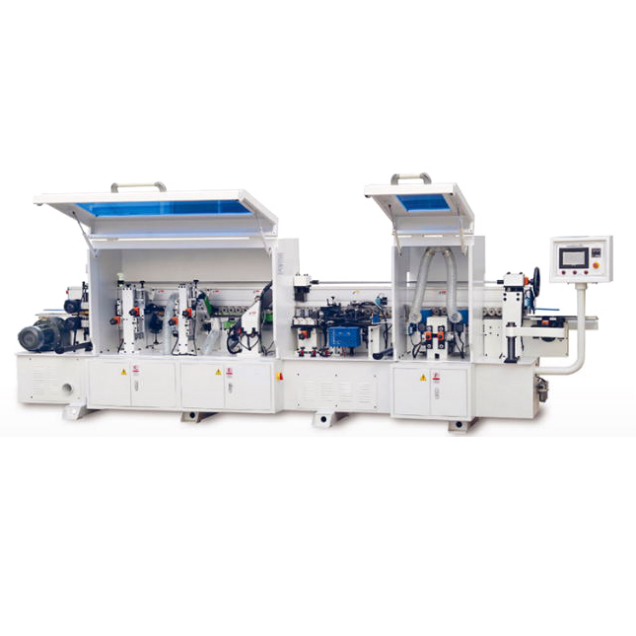

HAILIJU-B621 High quality edge banding machine
HAILIJU-B621 High quality edge banding machine
HAILIJU-B621 High quality edge banding machine
Product parameters
Total power 13.6kw Thickness of edge banding 0.4-3mm
Overall dimension 5100*980*1600mm Sheet width ≥40mm
Feed speed 12-20m/min Working pressure 0.8Mpa
Sheet thickness 10-60mm Weight 1.65T

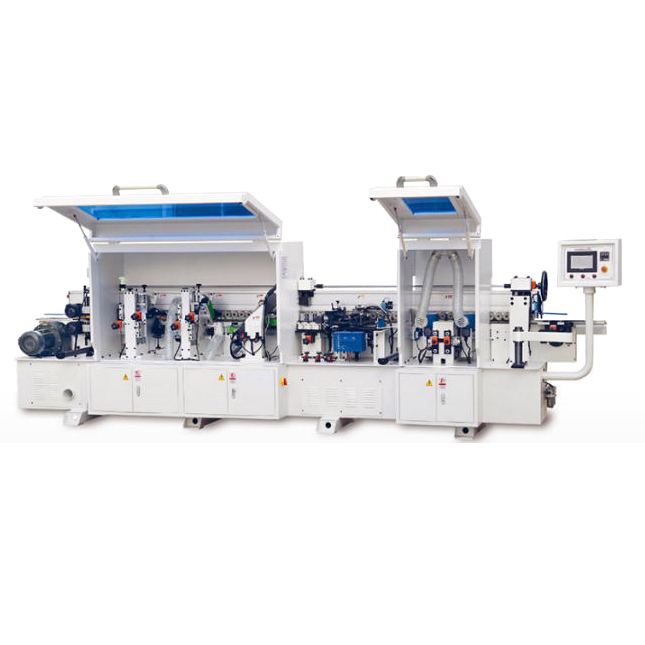

HAILIJU-B621 High quality edge banding machine
Detailed function introduction

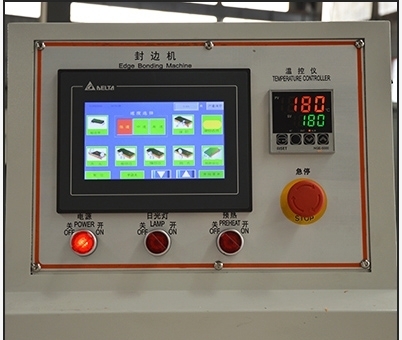

01.Control panel
Taiwan Delta PLC microcomputer control system, as well as touch screen, intelligent control, convenient and fast.

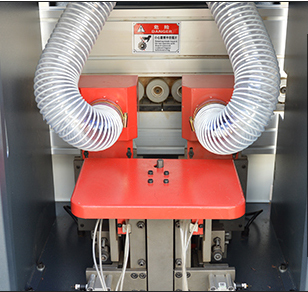

02.Pre milling device
Using double milling cutter to modify the phenomenon of mark and burr has achieved better edge sealing effect.

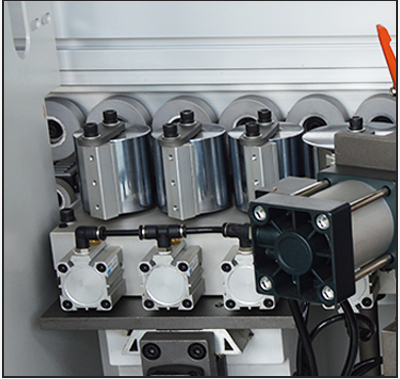

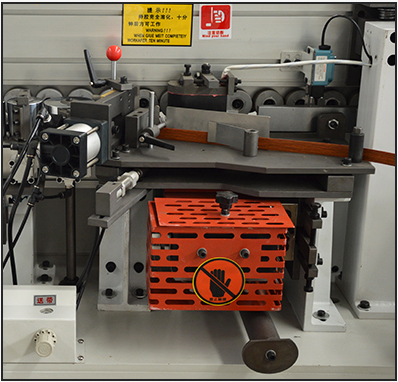

03.Adhesive tape
Apply glue by heating the glue pot and applying glue with imported scientific and technological structure, so that the glue plate and edge banding strip can be evenly applied, and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.

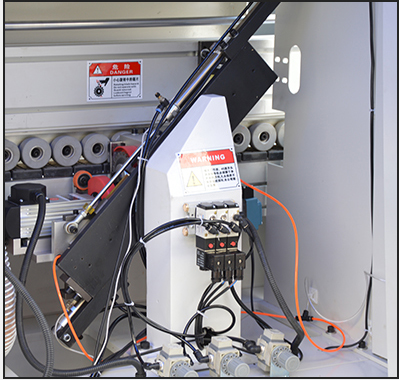

04.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

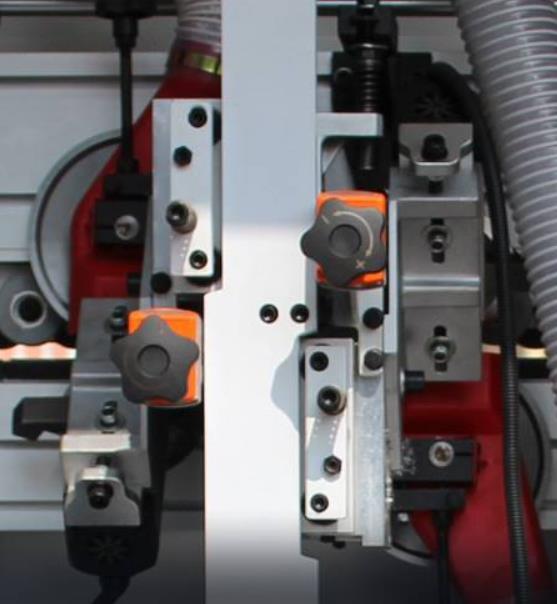

05.Fine trimming device
Repair the upper and lower redundant parts of the edge banding belt of the processed plate, and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.
06.Edge scraping device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process, so as to make the upper and lower parts of the plate more smooth and tidy.

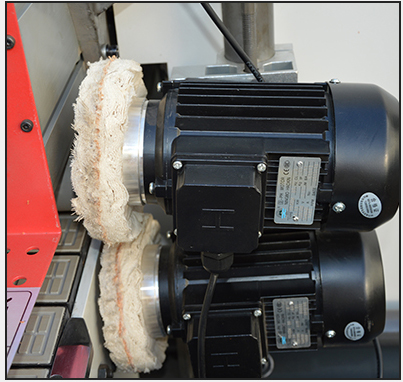

07.Polishing device
Clean the processed plate with a cotton polishing wheel to remove the excess glue, and make the edge sealing end smoother by polishing.
08.Conveying motor
High power pure copper movement transmission motor, gear reducer, large torque, stable transmission.
HAILIJU-B621 High quality edge banding machine
Certification
