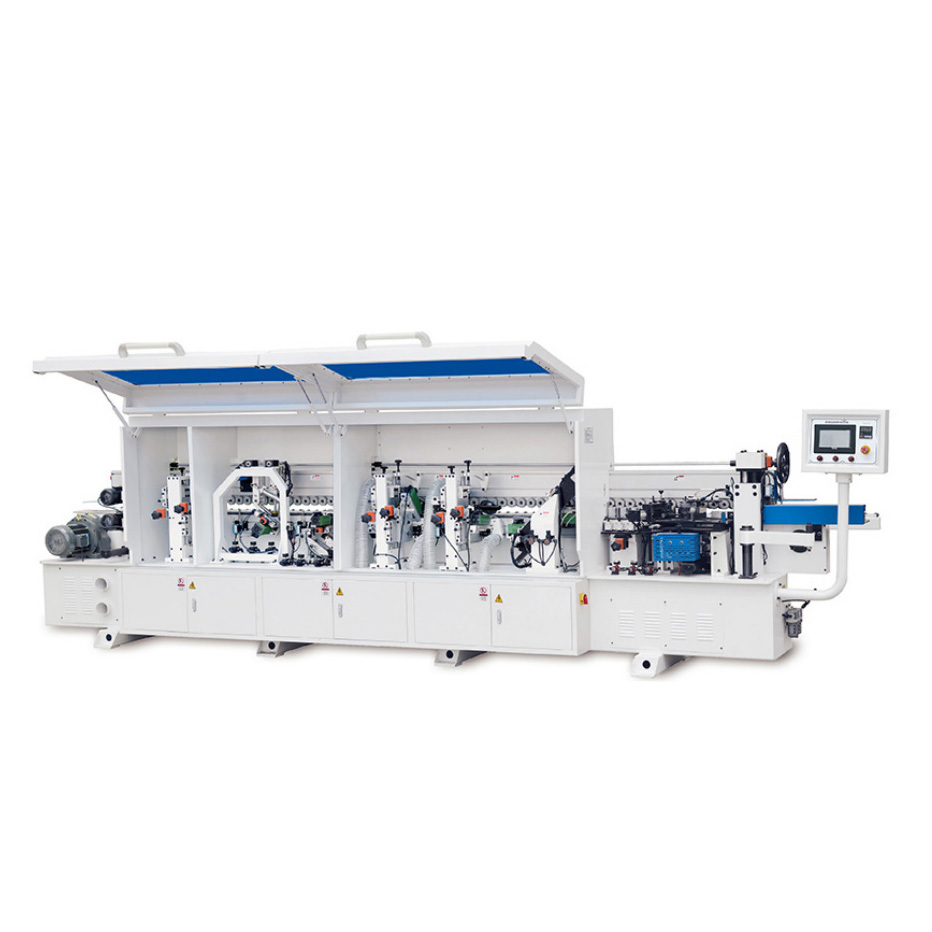

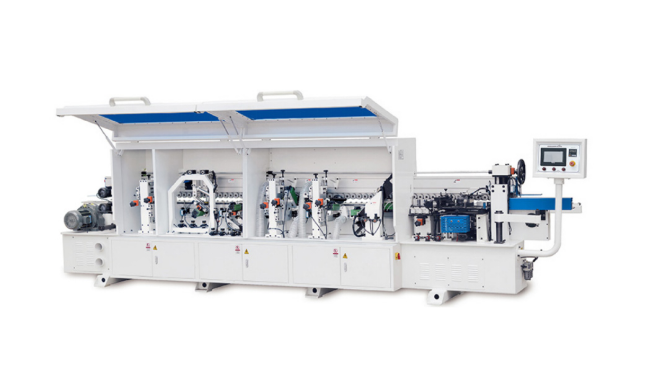

HAILIJU-B642 High quality edge banding machine
HLJ-B642 High quality edge banding machine
HLJ-B642 High quality edge banding machine
Product parameters
Product name Automatic edge banding machine Working air pressure 0.6Mpa
Panel thickness 8-60MM Machine size 2500*900*1600mm
Min working width ≥45mm Feeder speed 18-24m/min
Min working length ≥70mm Total power 16Kw
Edge bander thickness 0.3-3mm Weight 1800Kg(1.8T)
Voltage 380v/50hz Min edge banding thickness 45mm
HLJ-B642 High quality edge banding machine
Detailed function introduction

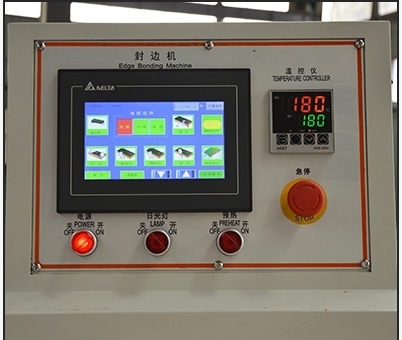

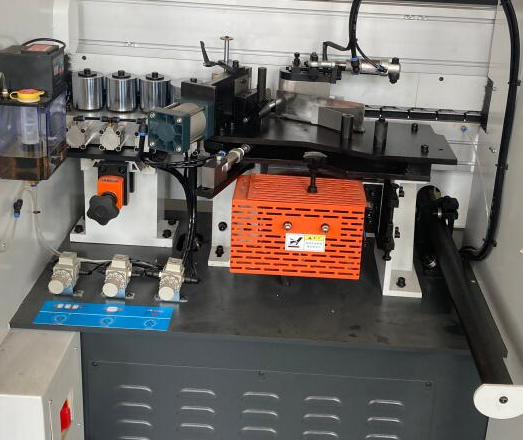

01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine,real-time monitoring, real-time adjustment and more accurate.
02.Adhesive tape
Apply glue by heating the glue pot and applying glue with imported scientific and technological structure,so that the glue plate and edge banding strip can be evenly applied,and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.

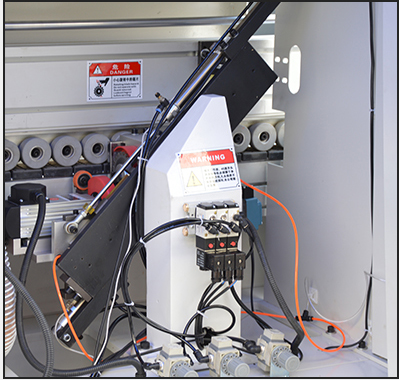

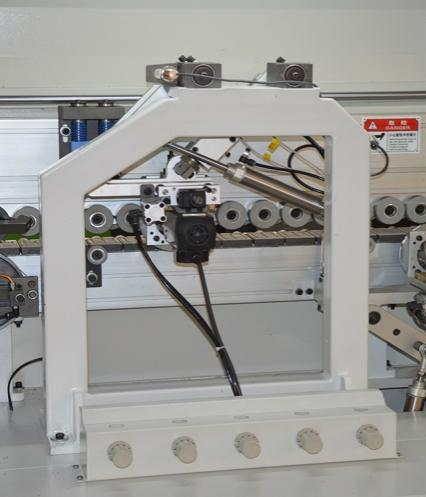

03.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

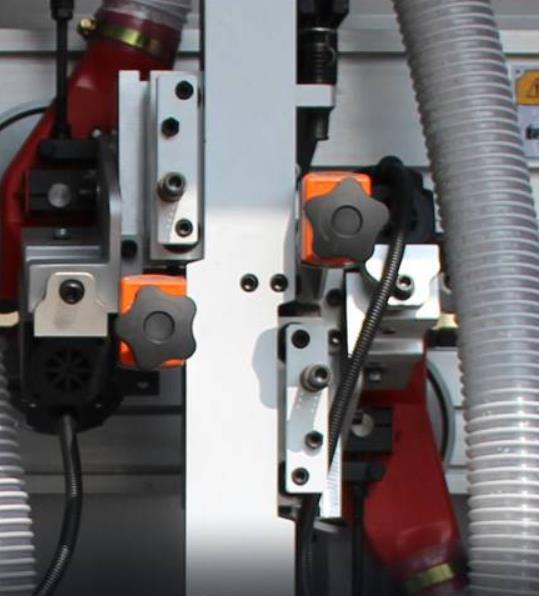

04. Rough trimming device
Adopt the structure of automatic tracing and high-frequency high-speed motor to repair the upper and lower redundant parts of the edge banding belt.

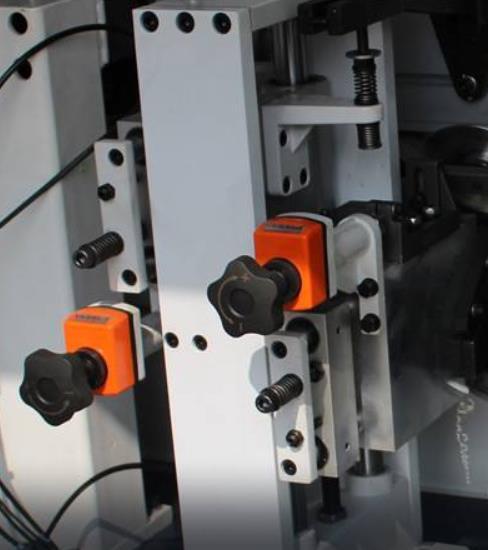

05.Fine trimming device
Repair the upper and lower redundant parts of the edge banding belt of the processed plate,and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.

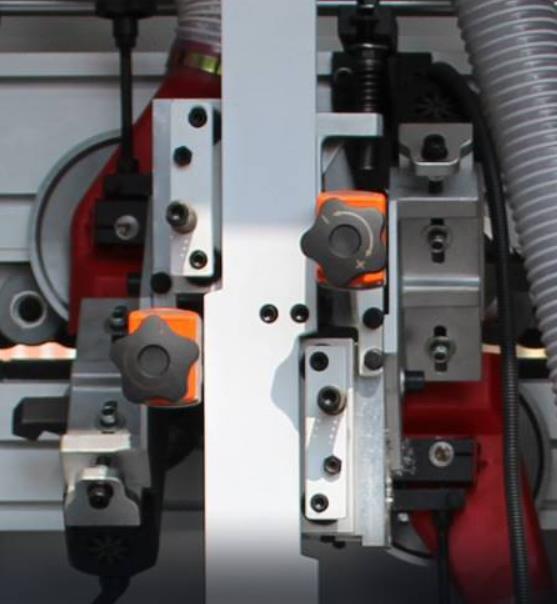

06.Corner trimming device
The profiling tracking chamfering device can make the section of the plate smoother and make the plate look more atmospheric.
07.Edge scraping device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process,so as to make the upper and lower parts of the plate more smooth and tidy.

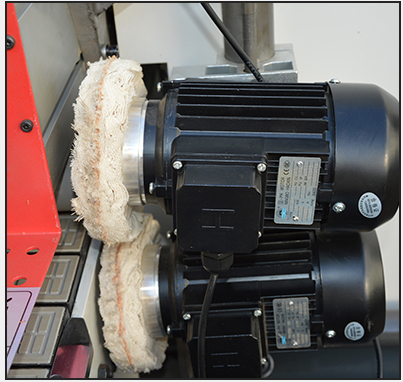

08.Polishing device
Clean the processed plate with a cotton polishing wheel to remove the excess glue,and make the edge sealing end smoother by polishing.
09.Conveying motor
High power pure copper movement transmission motor, gear reducer,large torque, stable transmission.
