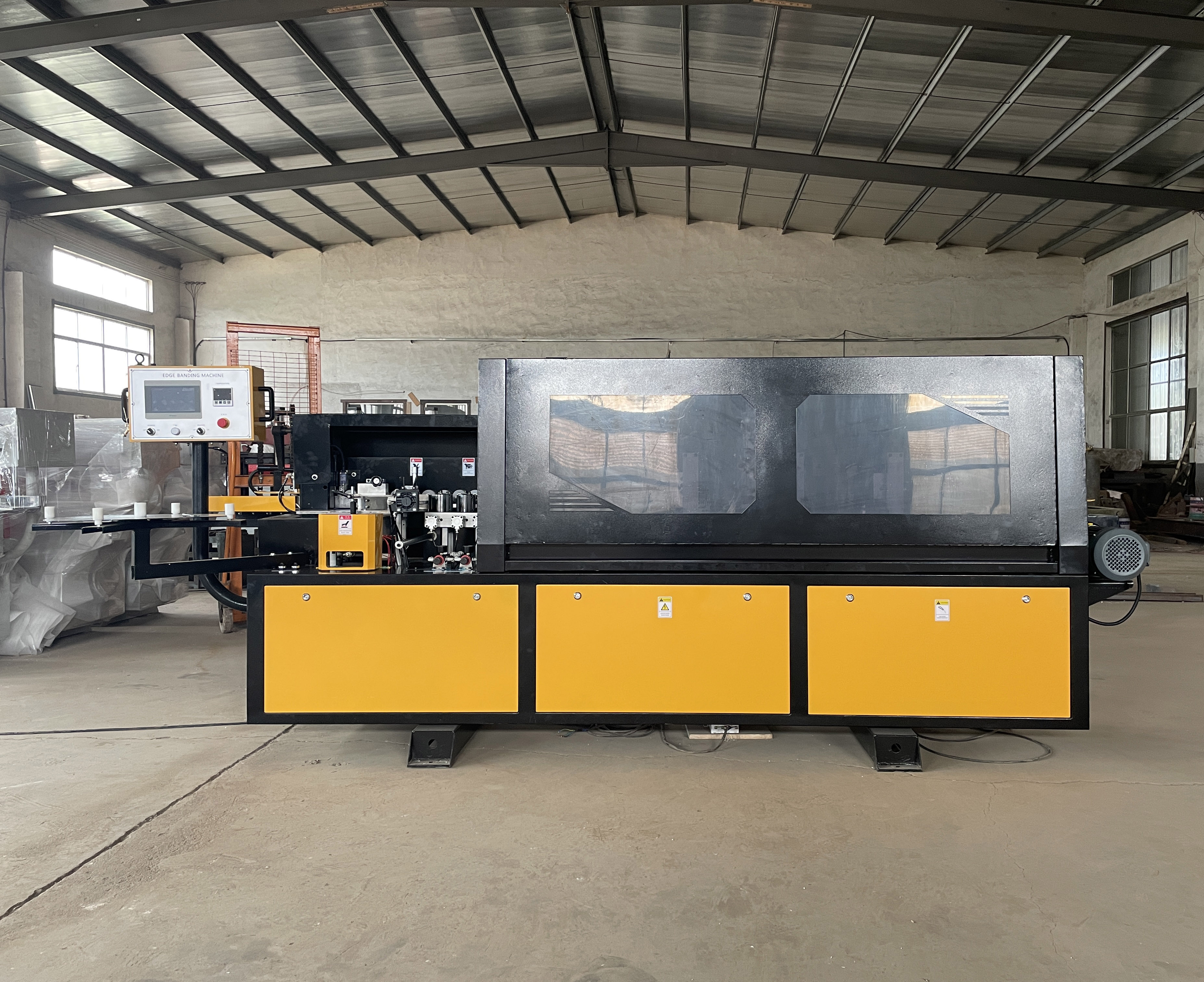

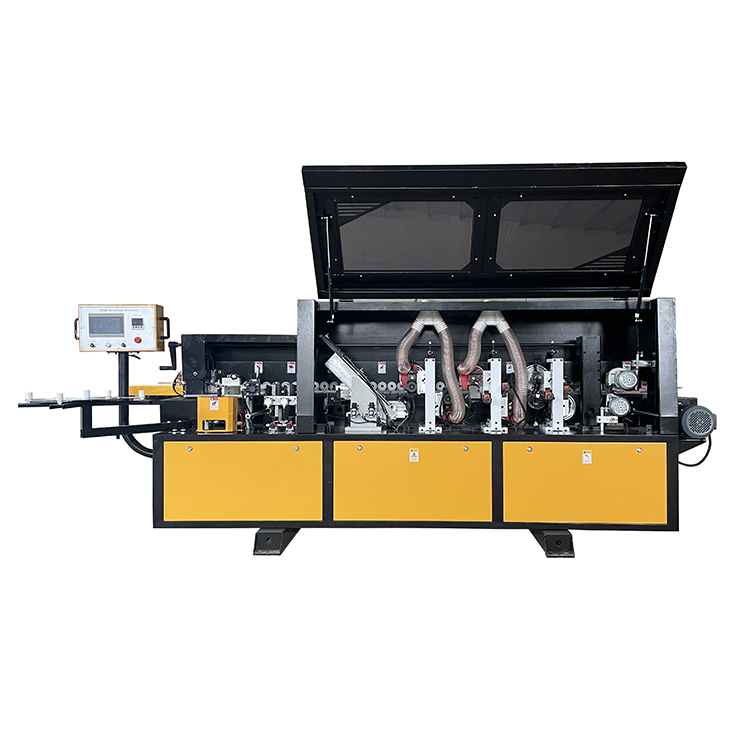

HAILIJU Xiaojidong full-automatic edge banding machine
Xiaojidong full-automatic edge banding machine
Xiaojidong full-automatic edge banding machine
Product parameter
Sheet length Min.140mm
Sheet thickness Max.50mm
Thickness of edge band 0.4-3mm
Feeding speed 15m/min
Operating air pressure 0.7Mpa
Net weight 1050kg
Gross weight 1200KG
Total power 8.5Kw
Overall dimensions 3688x775x1490mm
Packing size of wooden case 3800x820x1650mm
Xiaojidong full-automatic edge banding machine
Detailed function introduction

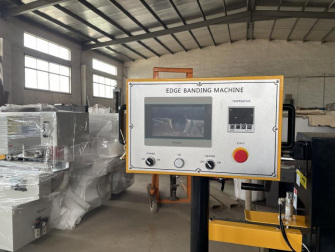

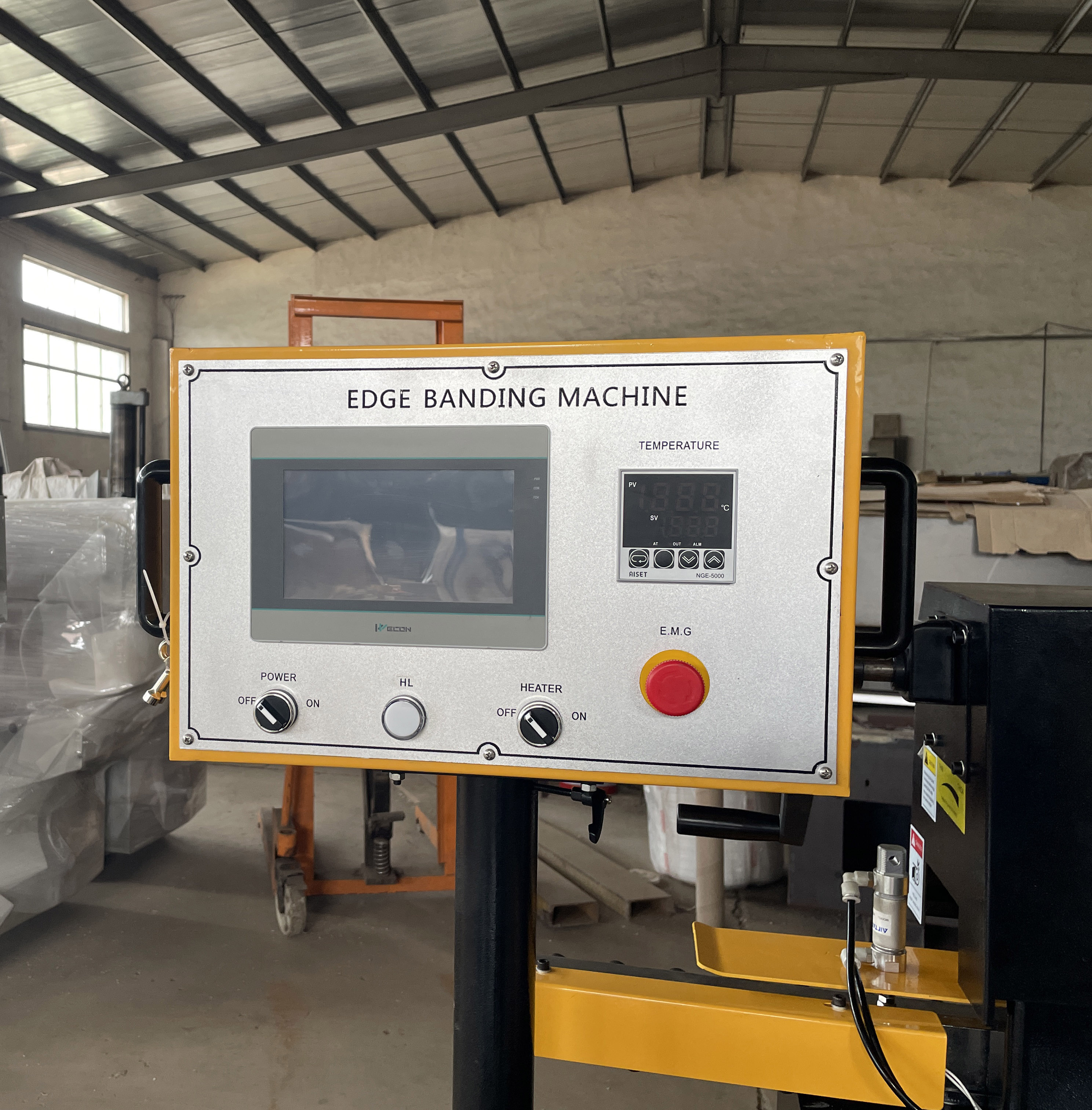

01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

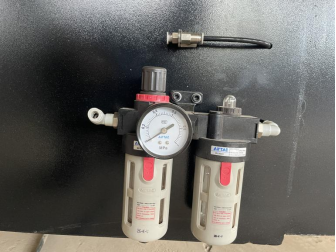

02.Oil water separator
The oil-water separator can effectively prevent the water vapor in the air from entering the machine. It can be used safely to ensure the safety of the machine.

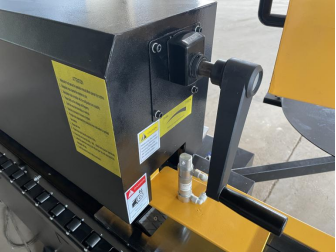

03.External manual lifting adjustment device
Manually adjust the lifting height of the pressure beam.

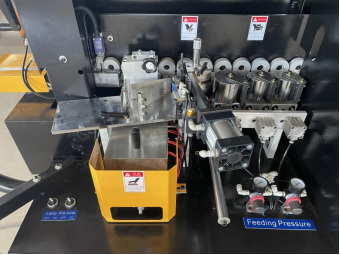

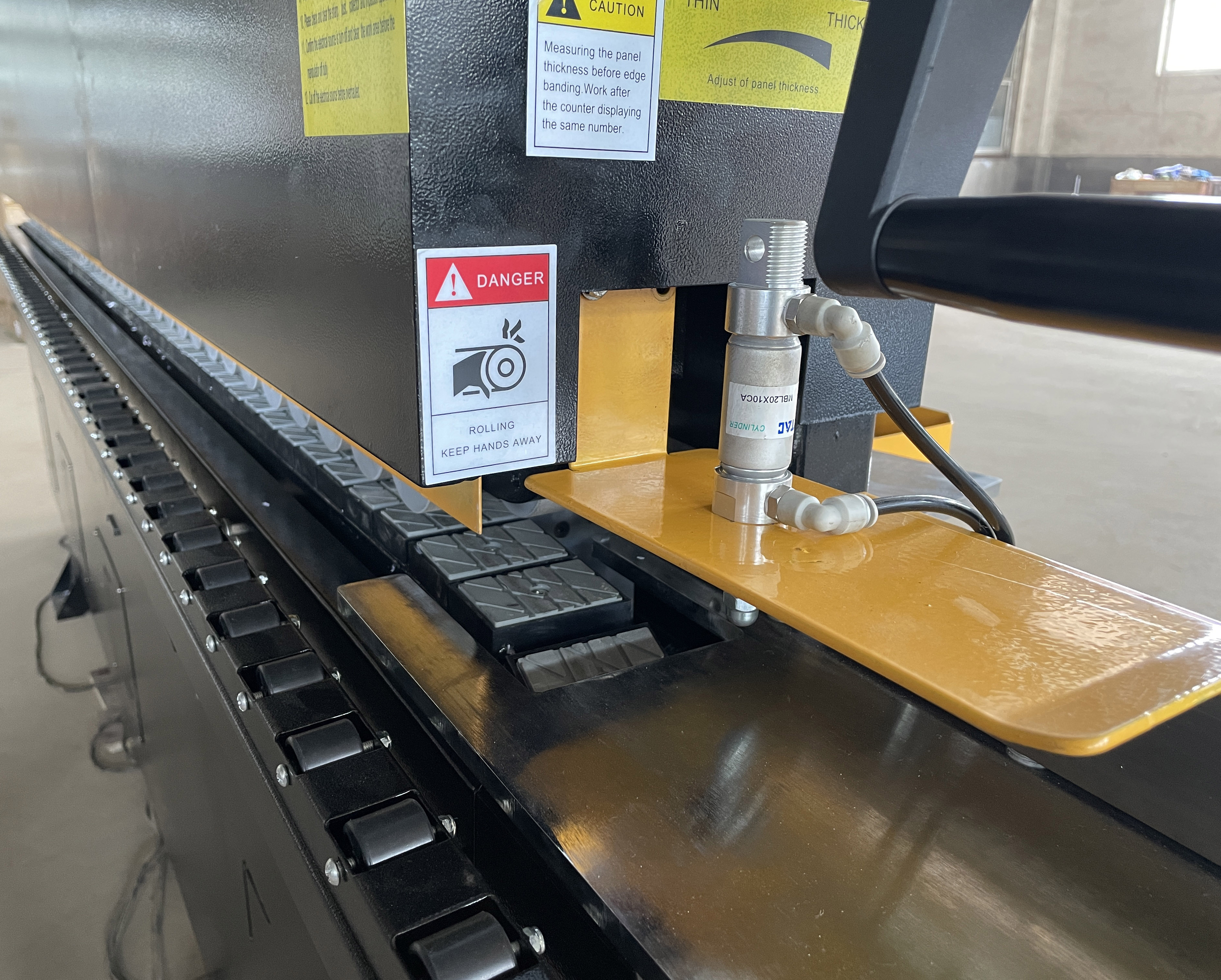

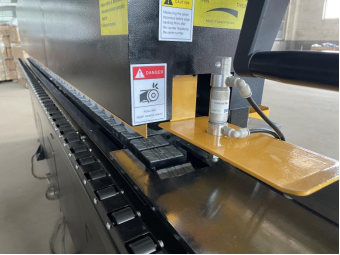

04.Feeding device
It has good stability and high accuracy for the feeding plate, without deviation and other phenomena.
05.Edge sealing and gluing device
The gluing device is heated by the glue pot, and the sol adopts the spiral structure. The glue feeding and gluing are fast and uniform, and the adhesive force is firm.
06.Edge pressing device
Screw structure is used for glue feeding, and the edge banding strip and the plate are pressed tightly by the pressing wheel, so that the adhesion is more firm.

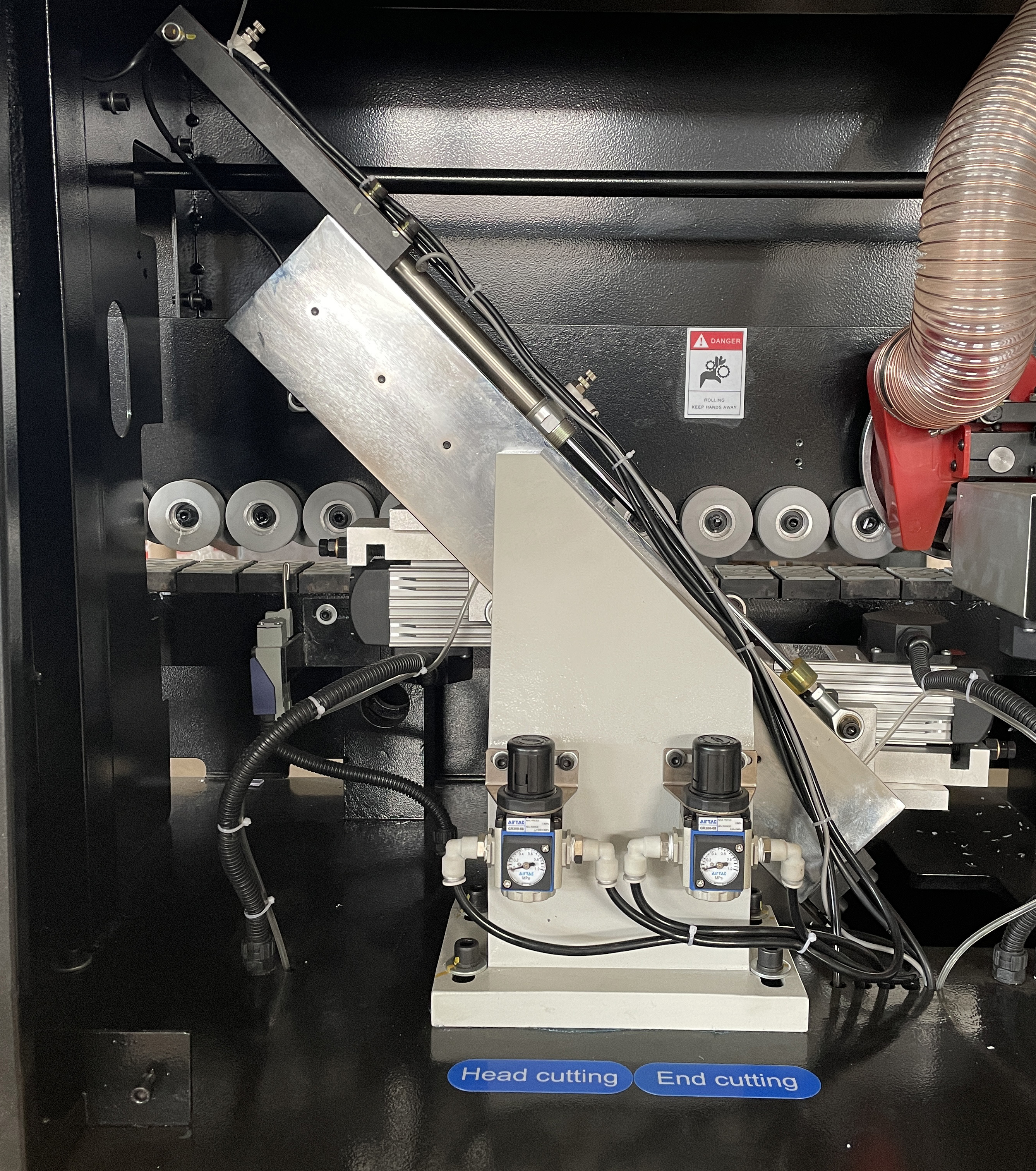

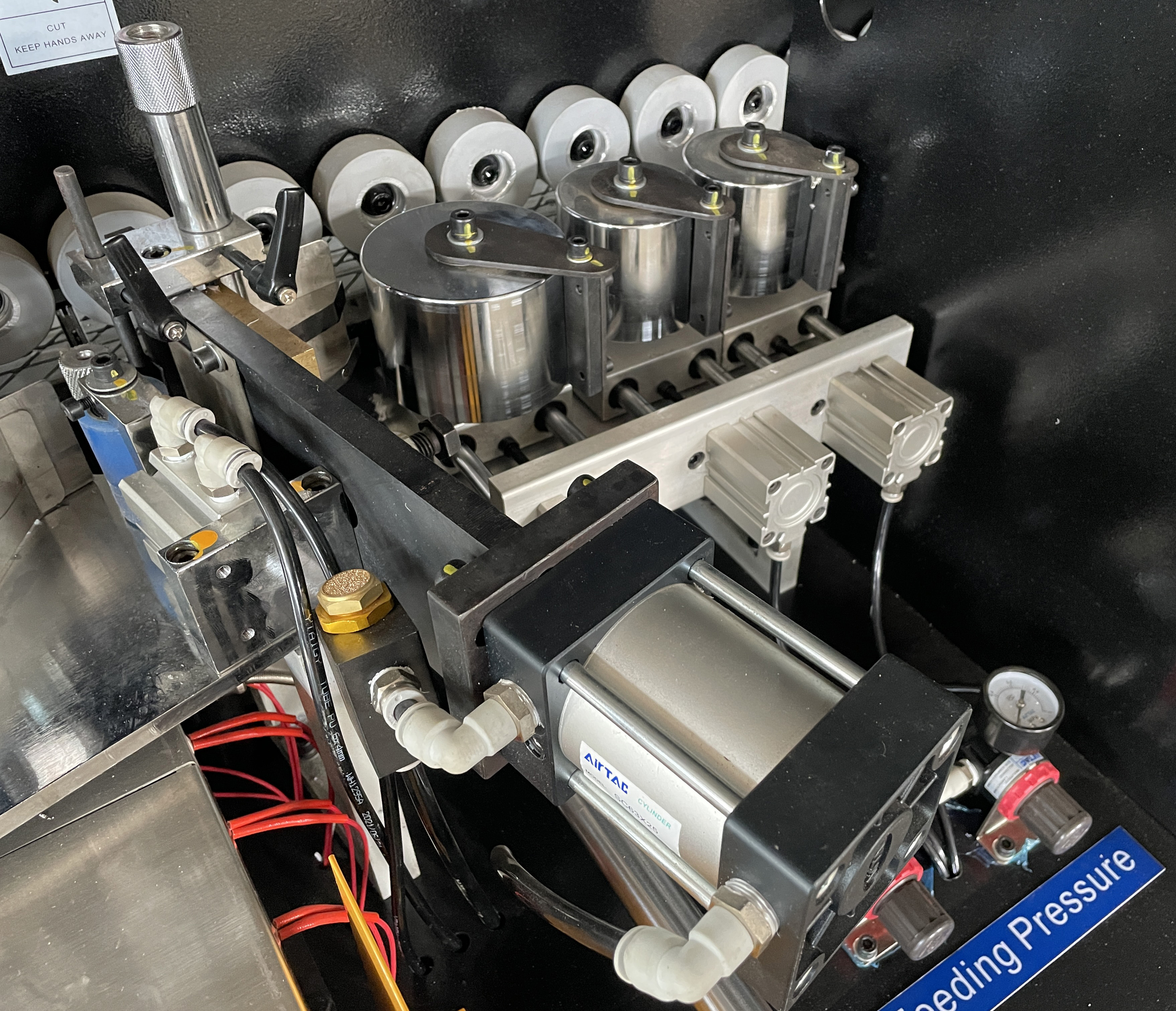

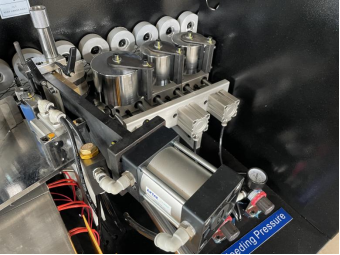

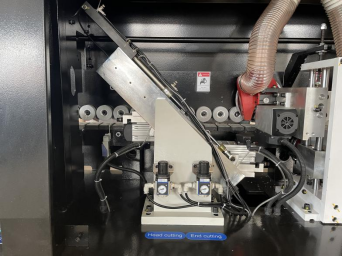

07.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

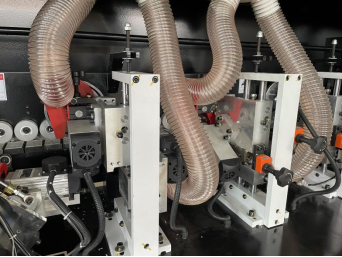

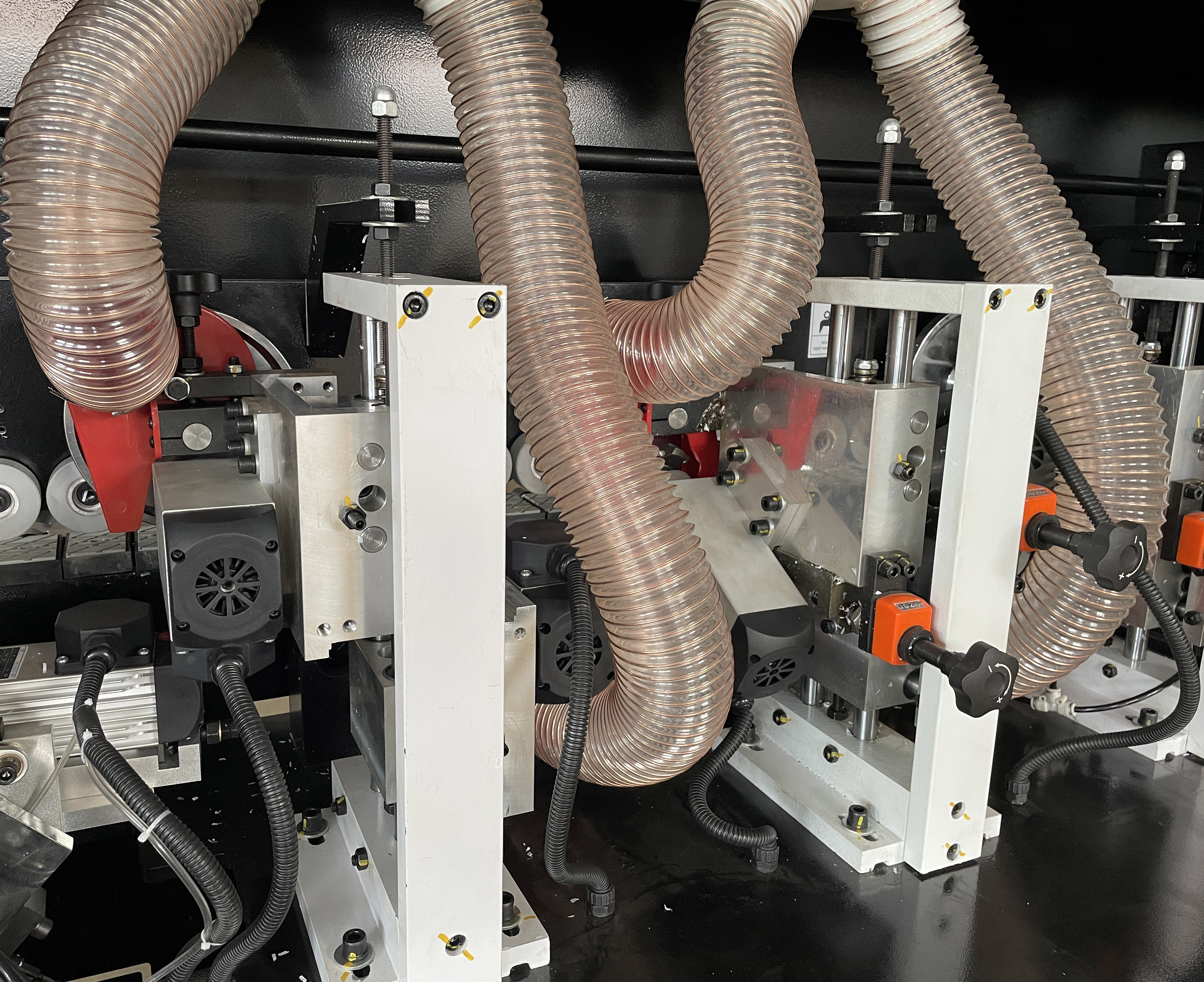

08.Pre milling device
Using double milling cutter to modify the phenomenon of mark and burr has achieved better edge sealing effect.

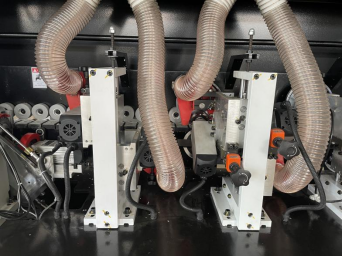

09.Finishing device
Repair the upper and lower redundant parts of the edge banding belt of the processed plate, and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.
10.Edge scraping device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process, so as to make the upper and lower parts of the plate more smooth and tidy.
11.Polishing device
Clean the processed plate with a cotton polishing wheel to remove the excess glue, and make the edge sealing end smoother by polishing.

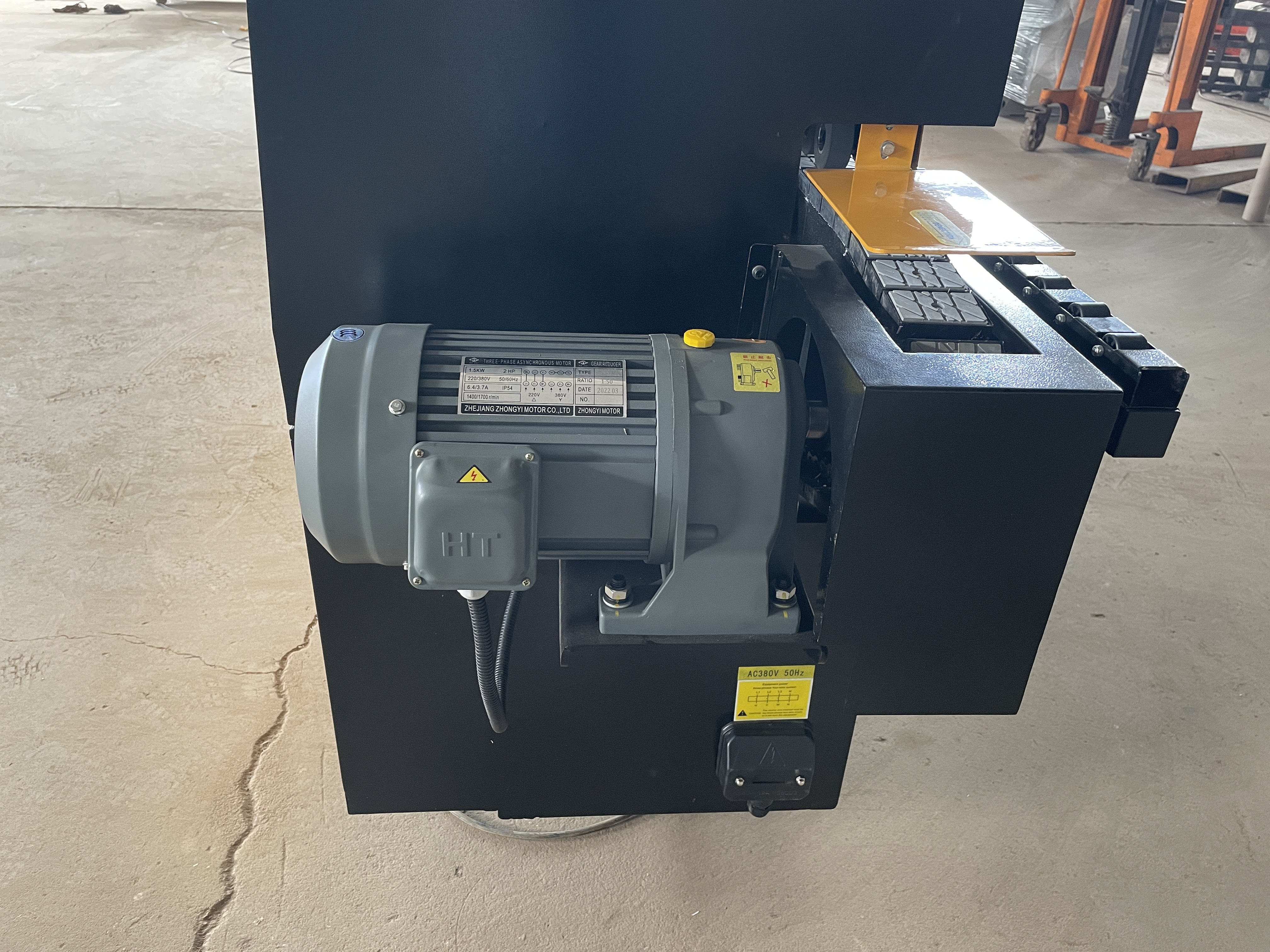

12.Conveying motor
High power pure copper movement transmission motor, gear reducer, large torque, stable transmission.

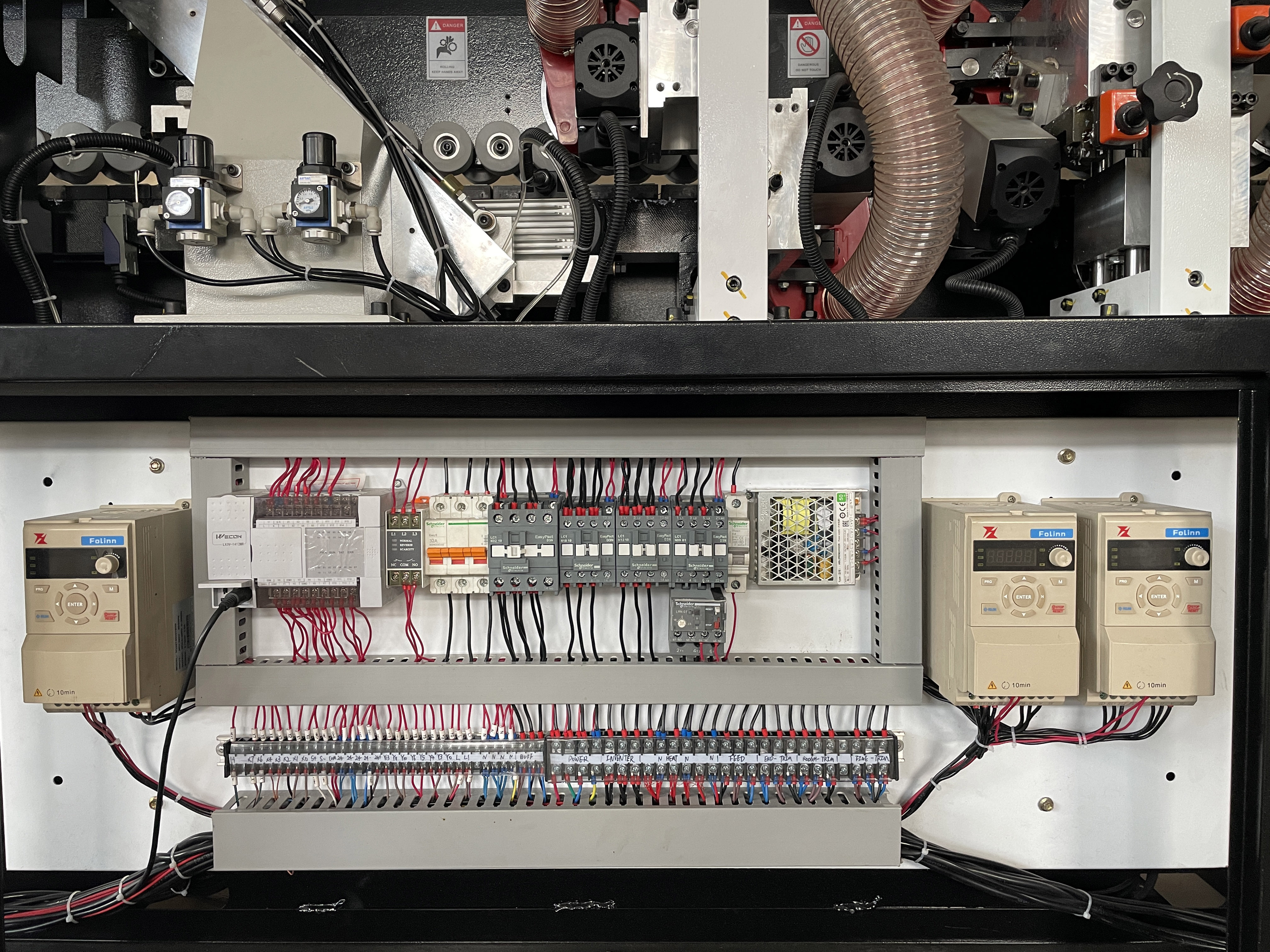

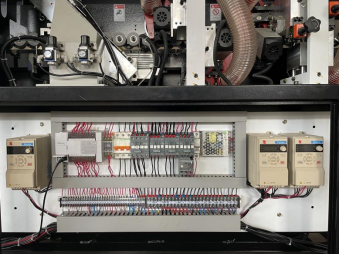

13.Electrical cabinet
All genuine accessories are used to ensure the operation safety and service life of the machine. Orderly arrangement, convenient adjustment, leakage protection, safe and flame retardant.

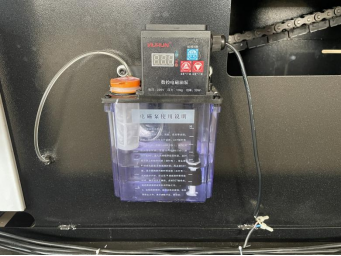

14.Automatic oiling device
Automatic oiling saves time and effort.
15.Yadeke solenoid valve
Xiaojidong full-automatic edge banding machine
Certification
