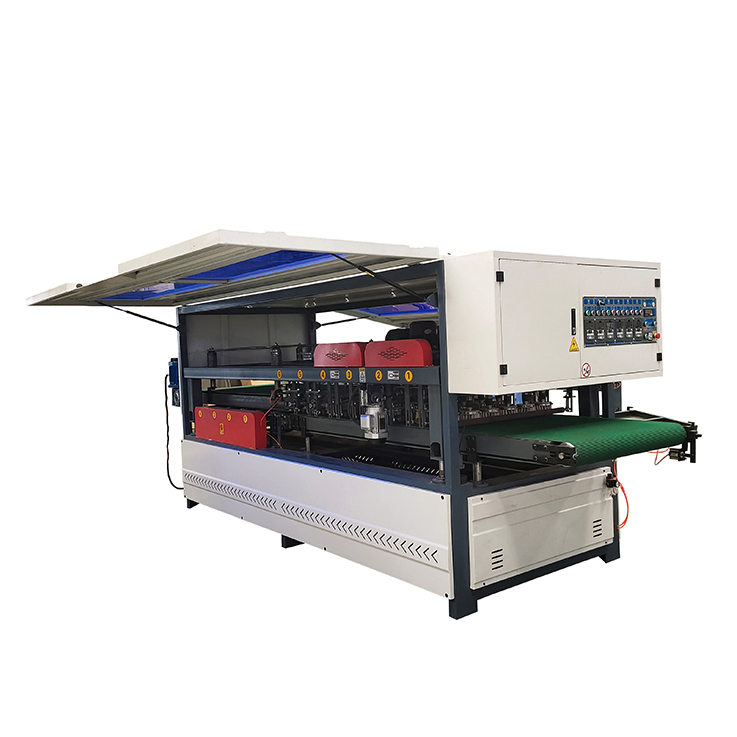

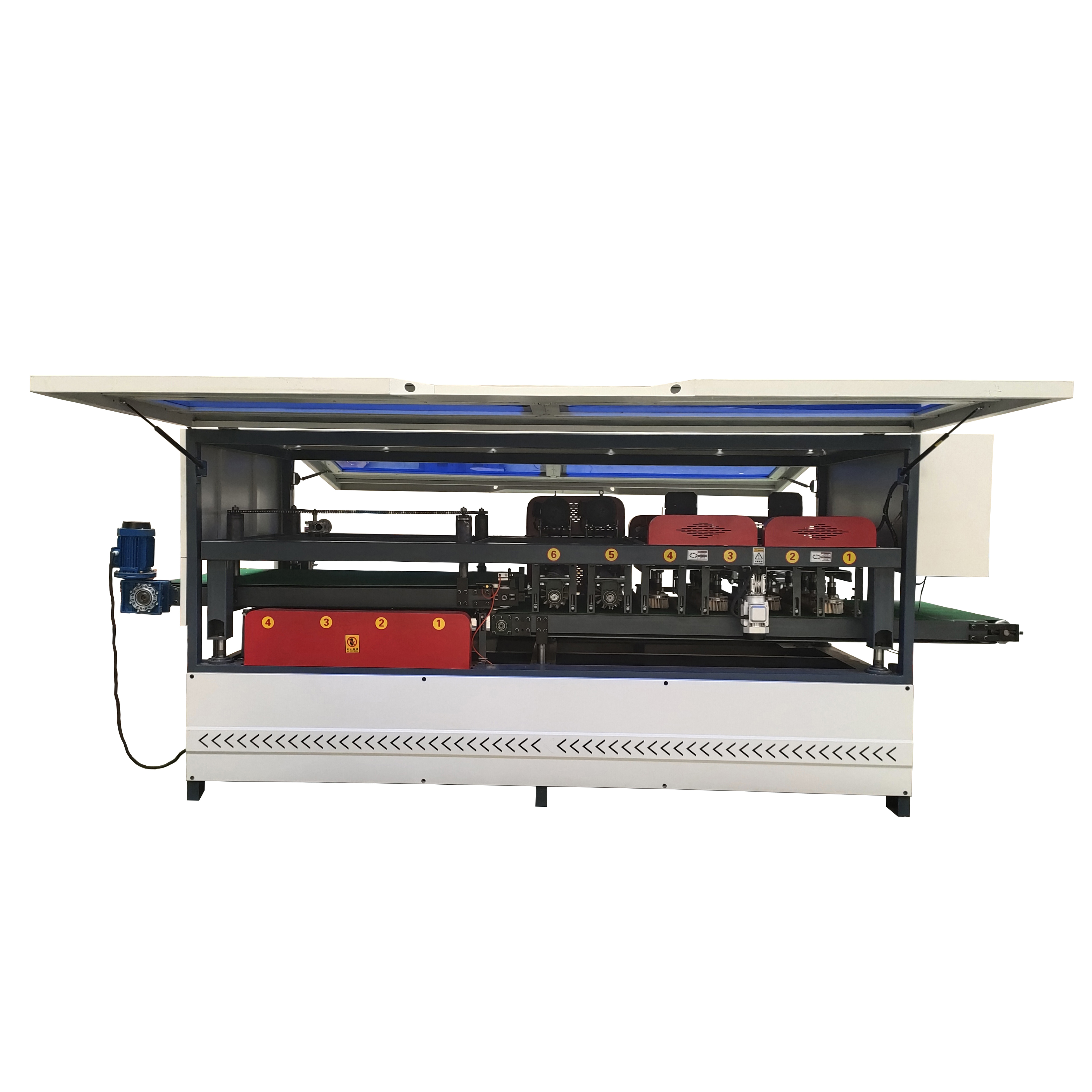

HAILIJU Wood Polishing machine MP-630-6Y2HP
Wood Polishing machine MP-630-6Y2HP
Wood Polishing machine MP-630-6Y2HP
Product details
Max working width 630mm
Min working material length 200mm
Working thickness 5-120mm
Feeder speed 5-2.5M
Total power 19.25Kw
Working air pressure 0.55mpa
Machine overall size 3800*1300*2000
Machine weight 1800KG
Wood Polishing machine MP-630-6Y2HP
Product details

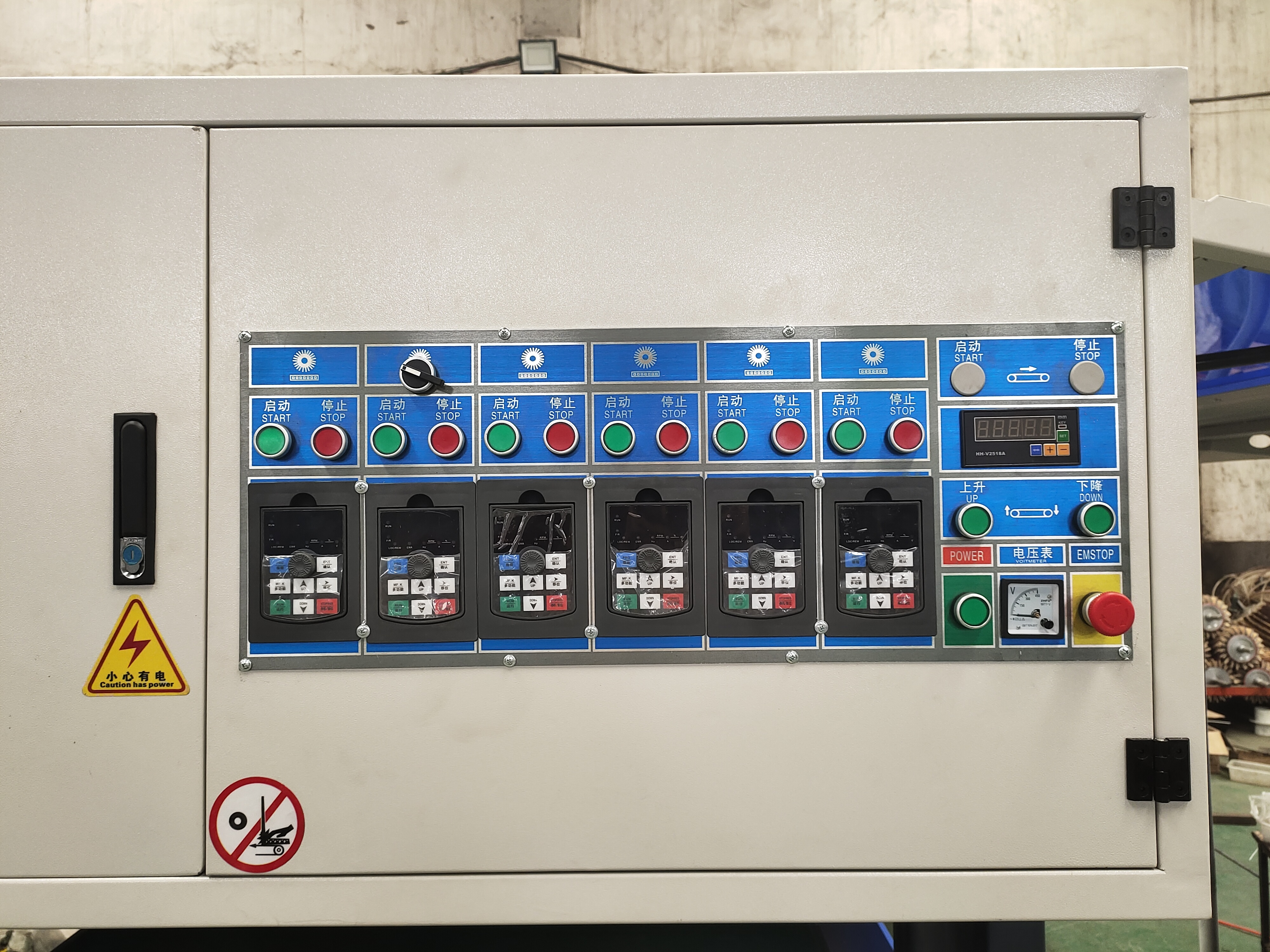

01.Control panel
Simple control panel, one key thickness adjustment of plate thickness,simple processing and easy to understand.

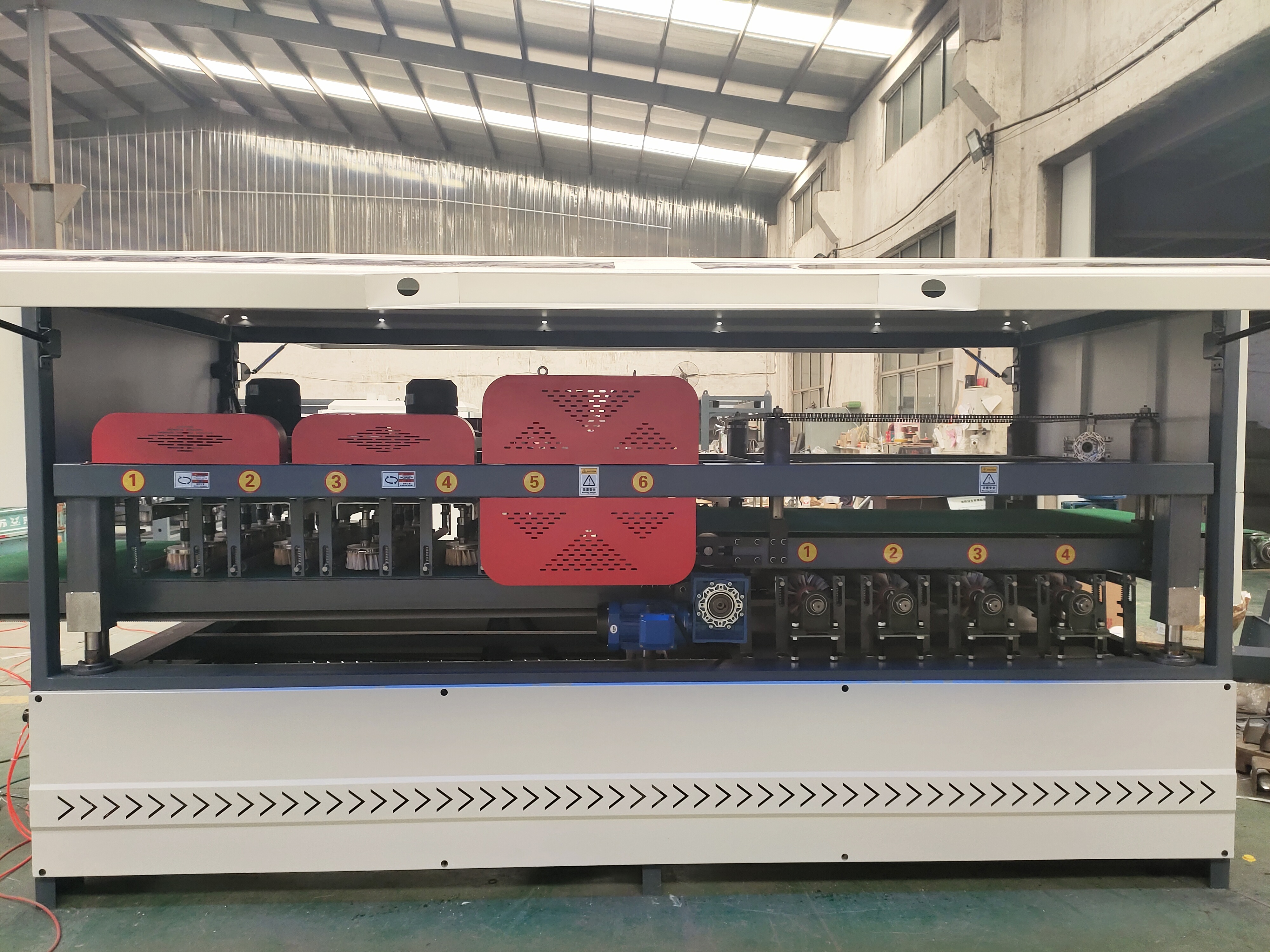

02.Grinding disc polishing
The vertical grinding disc (the grinding disc can swing left and right) is polished to realize the deep cleaning of the gap.It is equipped with a quick replacement joint, which can make the disc replacement more convenient.
03.Oil water separator
The oil-water separator can effectively prevent the water vapor in the air from entering the machine and ensure the safety of the machine.
04.Imported reducer
The standard cast iron gearbox reduction motor is not easy to deform compared with the gearbox,and the high-temperature operation will not affect the machine,enhance the service life of the machine, and make the transportation adjust freely, which is more worry-free.
05.Automatic deviation correction design
Start the automatic deviation correction design to ensure that the product does not deviate,and the service life of the conveyor belt is longer,so as to ensure that it can still be polished efficiently at high speed.
06.Feeder belt
The conveyor belt is equipped with cast iron gearbox reduction motor as standard, which is not easy to deform.In high temperature and long-term operation, it will not affect the fuselage.The service life of the fuselage is longer, and the conveyor can be adjusted freely, which is more worry-free.
07.Fting motor magnetic ring induction
The magnetic ring induction of the lifting motor has higher precision.The upgraded altimeter has a longer service life.

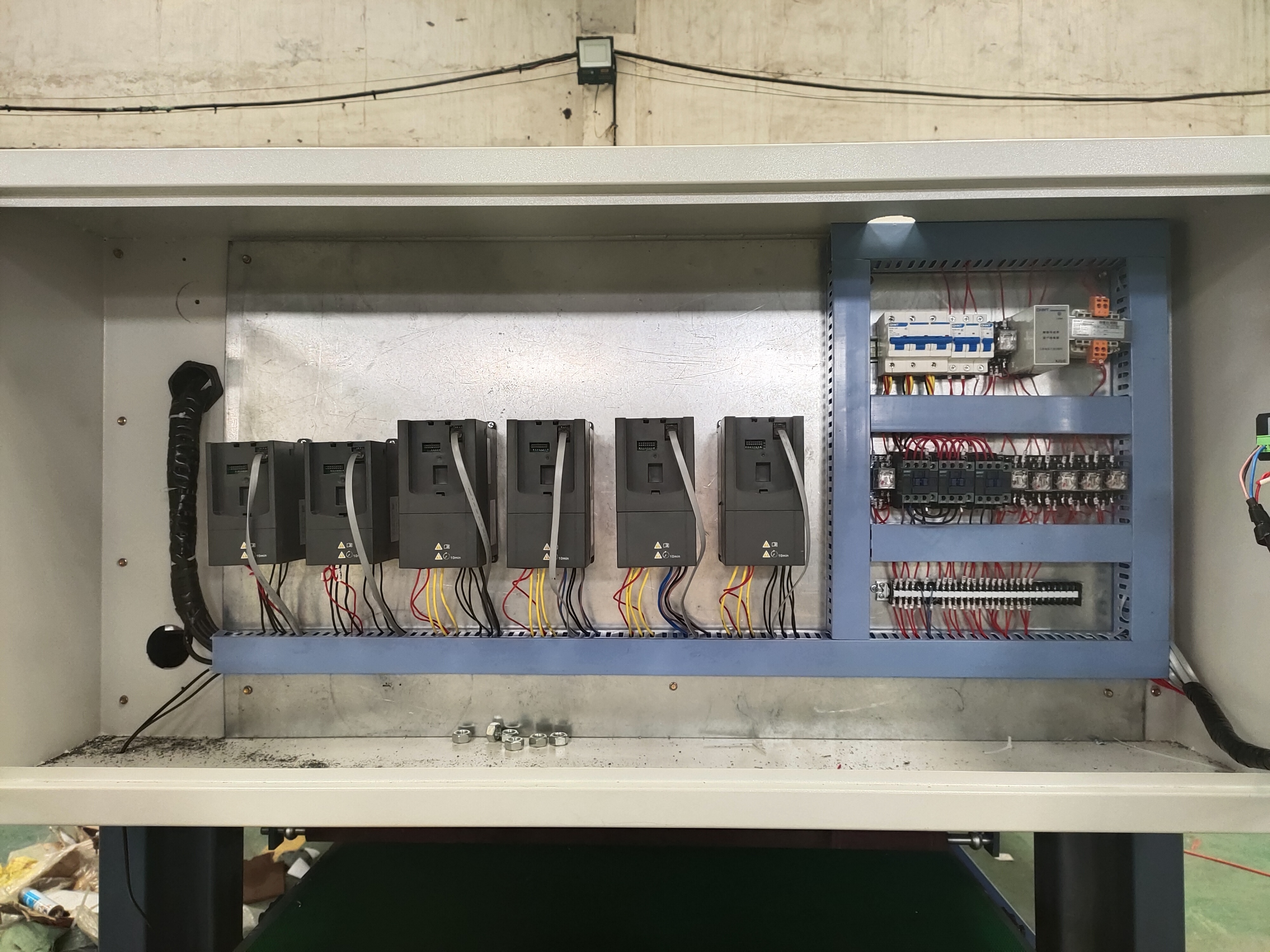

08.Frequency conversion control cabinet
The frequency conversion is stable. The frequency converter with high-end imported accessories is sensitive and safe to ensure the safety and service life of the machinery.The conveyor belt is equipped with frequency conversion, which is convenient to use and speed regulation, improves work efficiency and saves labor cost.
Wood Polishing machine MP-630-6Y2HP
Certification
