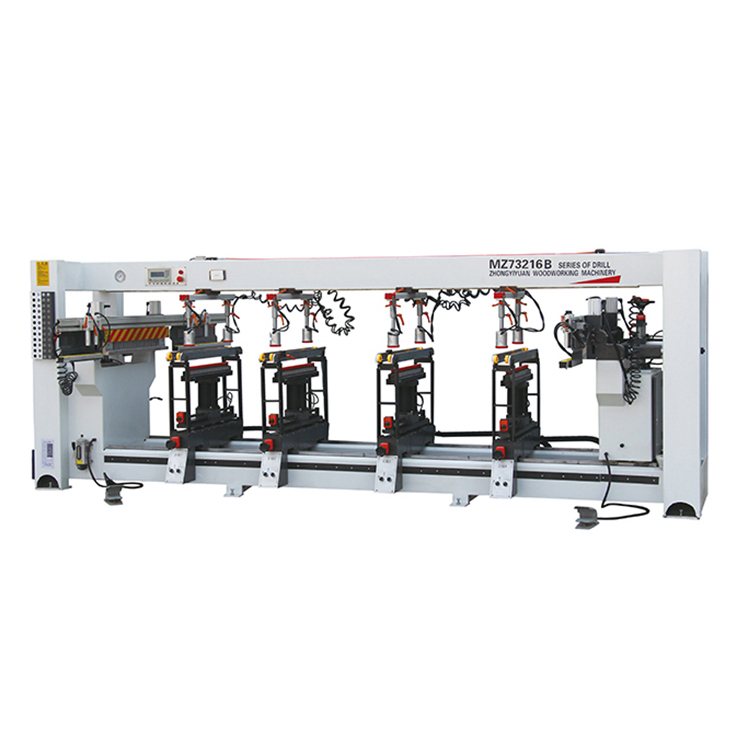

HAILIJU MZ73216 Six row multi spindle woodworking drilling machinerow multi spindle woodworking drilling machine
MZ73216 Six row multi spindle woodworking drilling machinerow multi spindle woodworking drilling machine
MZ73216 Six row multi spindle woodworking drilling machinerow multi spindle woodworking drilling machine
Product parameters
Maximum Drilling Diameter Single hole Φ35mm
Maximum Drilling Depth 60mm
Vertical Machining Holes Distance 130-2550mm
Number of Auger Shaft 21 axis*6 Row
Rotational Speed 2800r/min
Motor Power 1.5Kw*6
Air pressure 0.6-0.8MPa
Overall Size(L*W*H) 4500*2500*1530mm
MZ73216 Six row multi spindle woodworking drilling machinerow multi spindle woodworking drilling machine
Details show

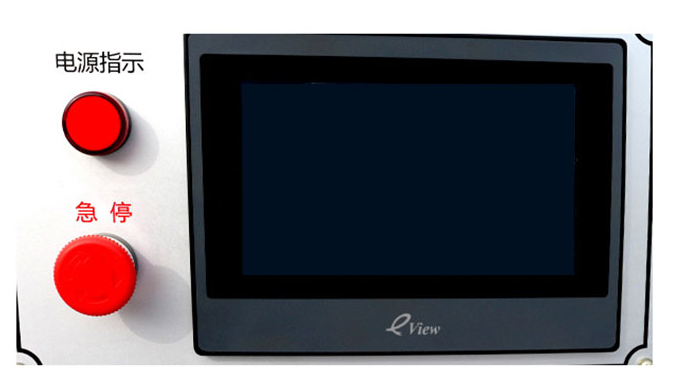

01. Operation panel
The brand touch screen and PLC industrial control system are used, which are powerful,low failure rate and easy to learn and operate.

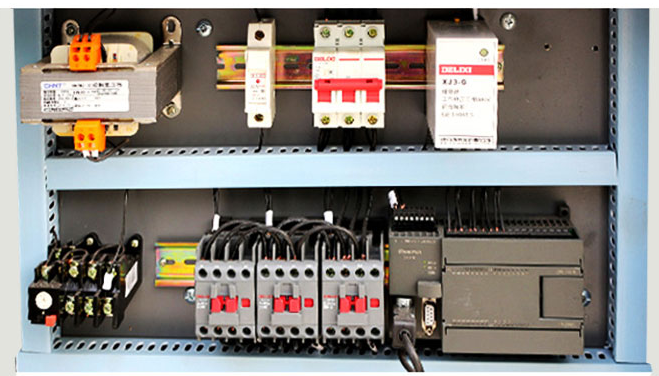

02. Electrical control box
The internal circuit is safe and stable, the wire connection is clear, and the work is more stable and safe.

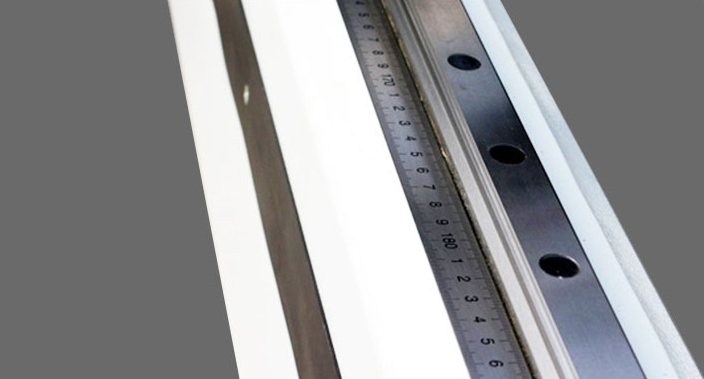

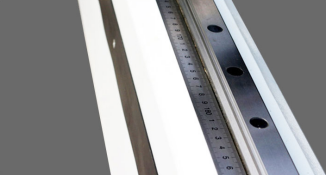

03. Guide rail imported from Taiwan
Taiwan's original imported guide rail, unique design to avoid small errors in your operation process,materials at a glance, accurate data.

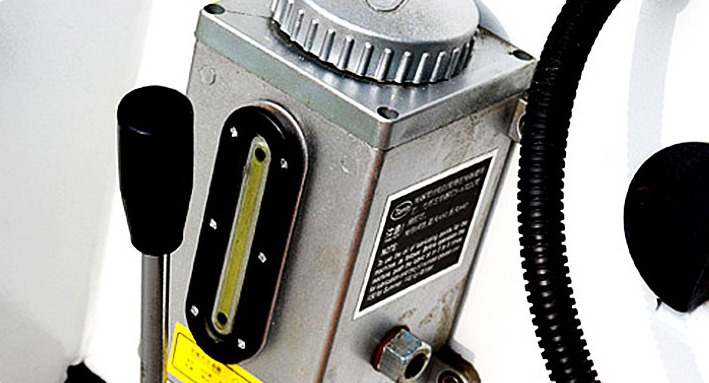

04. Airframe oil pressure circulation system
Turn on the oil injector before starting the machine every day to smooth the oil path inside and improve the service life of the machine.

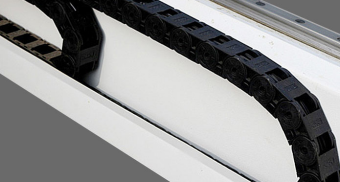

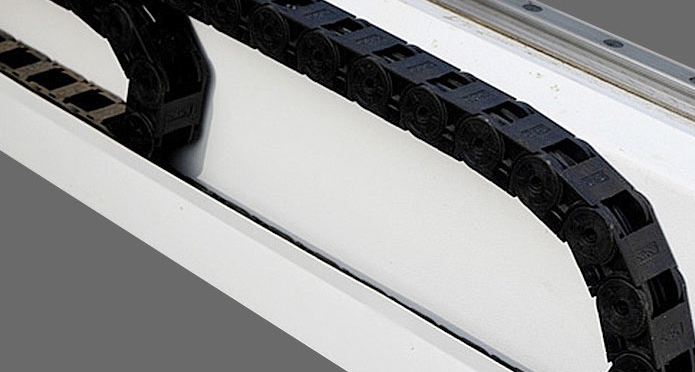

05. Drive line chain block
Protect the wire. The wire moves with the chain block during work, ensuring a regular movement environment for the wire.

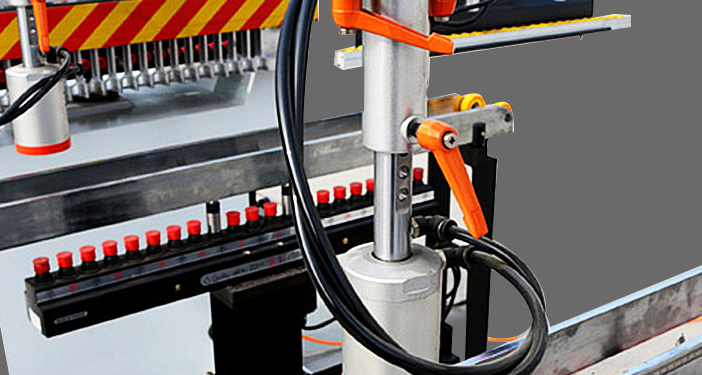

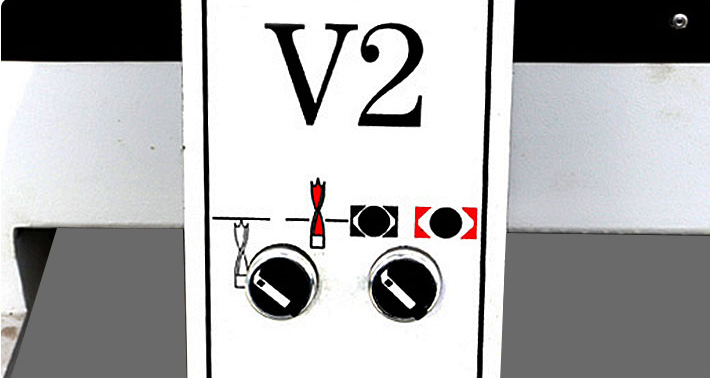

06. Positioning device of vertical drill row
Fix and lock the position of the drill row to prevent errors such as inaccurate drilling position caused by drilling misalignment.
07. Positioning cylinder
The photoelectric induction switch is used for the drilling depth and drilling distance,which makes the positioning fast and accurate,and makes the machine work more stable.

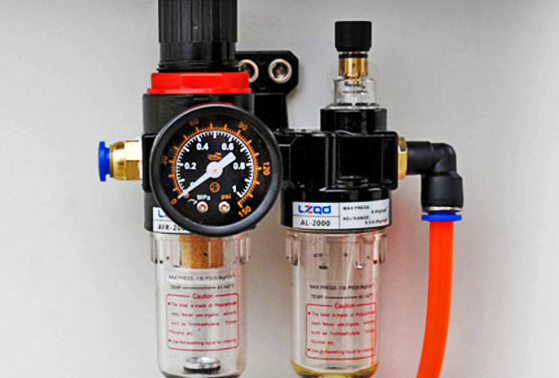

08. Oil water separator
Prevent from entering the cylinder, effectively filter the water vapor in the air,and prolong the service life of pneumatic components.

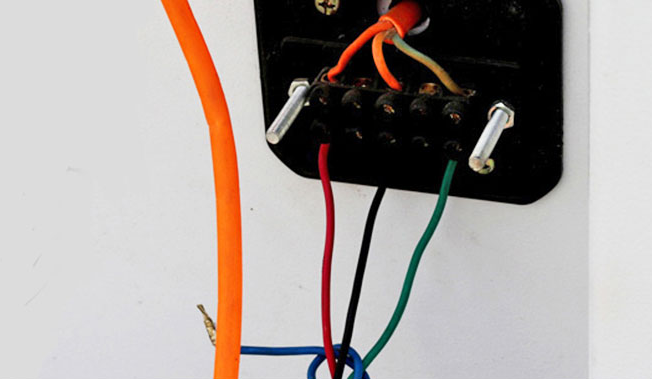

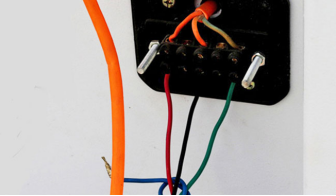

09. Junction box
The circuit connection is clear, the wire connection is clear and not messy, and it is easy to operate,making the work more safe and stable.
MZ73216 Six row multi spindle woodworking drilling machinerow multi spindle woodworking drilling machine
Certificate
