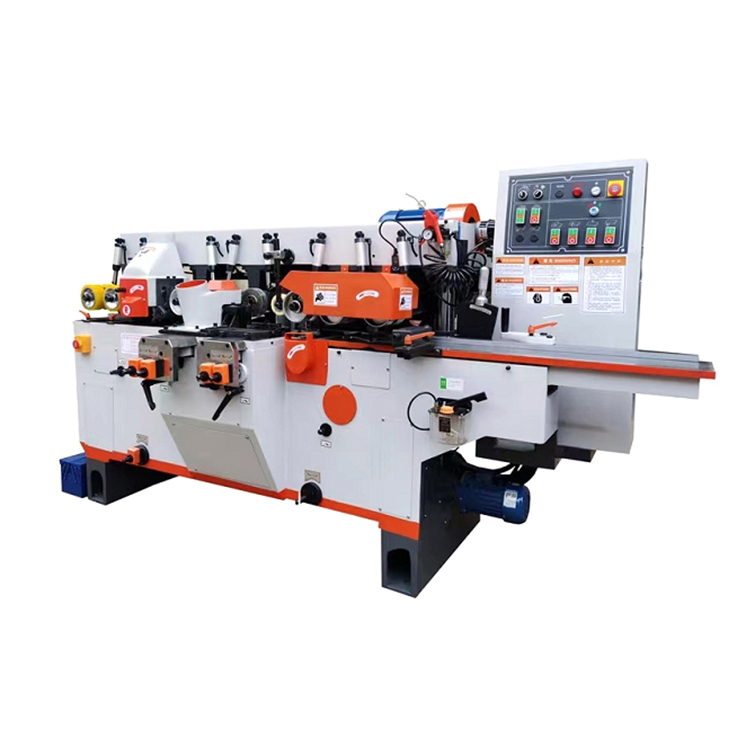

HAILIJU Six axis four side planer
Six axis four side planer
Six axis four side planer
Product parameters
Shortest machining 250mm Machining width 20-230mm
Processing thickness 8-125mm Feeding speed 7-28m/min
Motor power of lower/left and right shafts 5.5kw Upper shaft power 7.5kw
Spindle diameter 40mm Outer diameter of lower shaft 120-125mm
Outer diameter of upper left and right shafts 110-180mm Beam lifting motor power 0.75kw
Feeding motor 4kw Outer diameter of feeding wheel 140mm
Overall dimensions 3290*1575*1650mm Equipment weight 1800kg
Six axis four side planer
Product Details
01.control panel
The control panel can control the rising and falling of the feeding wheel, positive and negative rotation.Each cutter shaft starts and stops the switch. The emergency stop switch is installed to facilitate emergency operation.
02.Backing adjustment
The feeding port adopts aluminum bar to control the feeding of the plate in parallel without tilting, and the angle can be adjusted.
03.Bulletproof strip
The anti rebound strip is added at the feeding port. The cutting resistance of the plate feeding planer is large to avoid rebound.The handle can be lifted safely and conveniently.
04.Feeding wheel/first shaft
The feeding wheel adopts steel wheel to facilitate feeding, and one shaft of the lower tool can be adjusted for lifting.
05.Two axis three axis
The two axis and three axis of the cutter can adjust the front and rear width, and the upper and lower planing thickness.
06.Four axis tool
The four axis cutter can be adjusted up and down to facilitate the processing of different sheet thicknesses.
07.Discharge rubber wheel
Rubber wheels are used for discharging to prevent the surface of processed plates from being scratched.
08.Four side planer
Four side planer tools can be customized for different shapes, convenient for beautiful lines and curves.
09.Feeding motor
Feeding motor power: 3kw Feeding speed: 5-30m/min
10. Cutter shaft motor
Power of knife feeding motor: 7.5kw Lower left and right cutter shaft power: 5.5kw.
