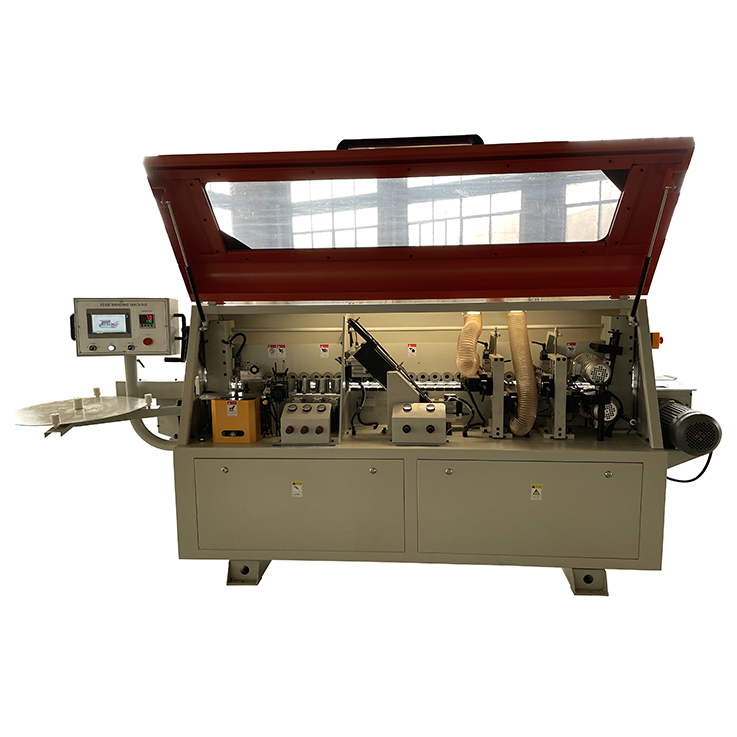

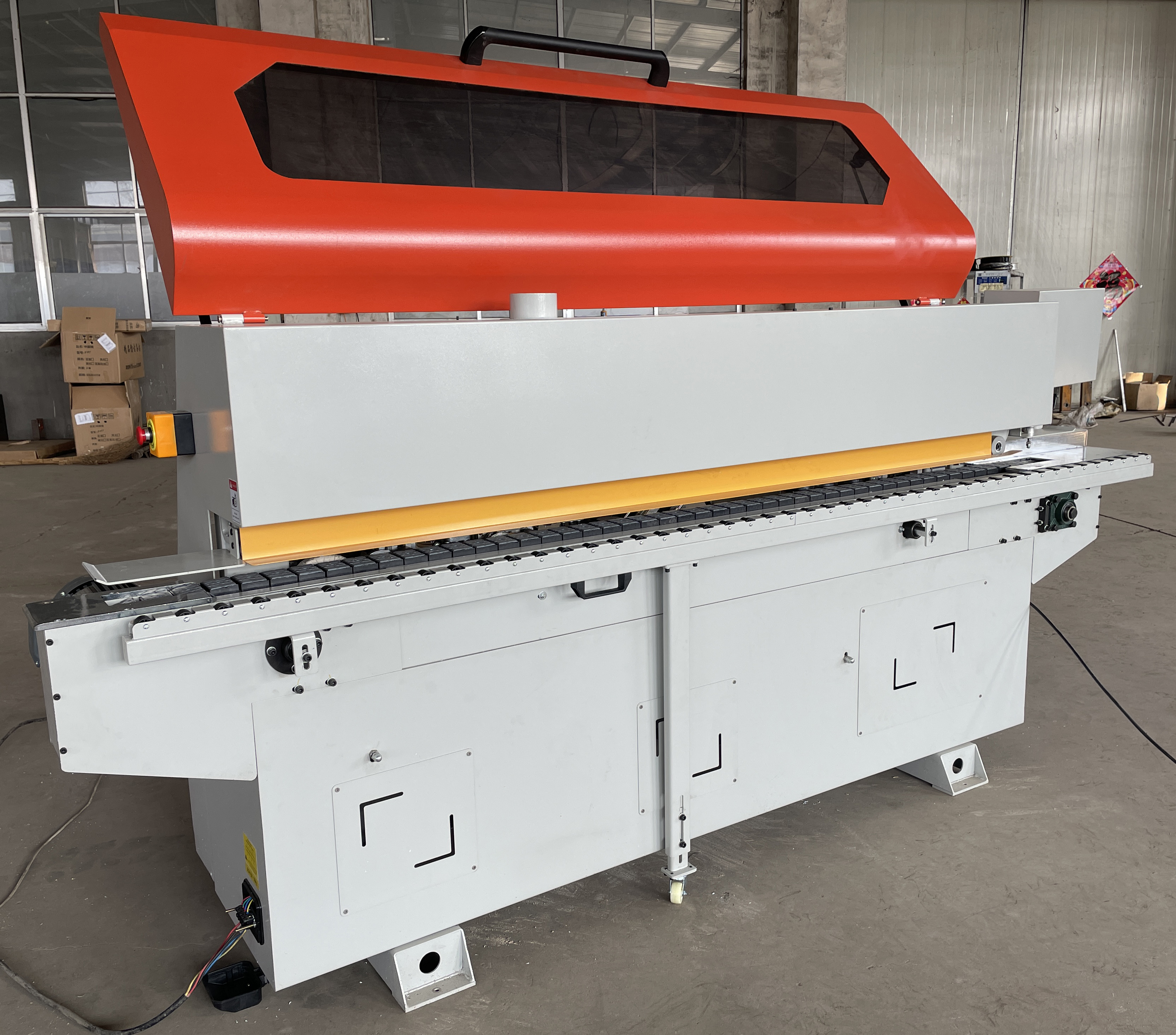

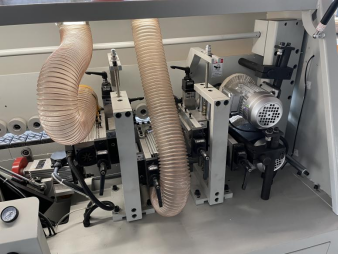

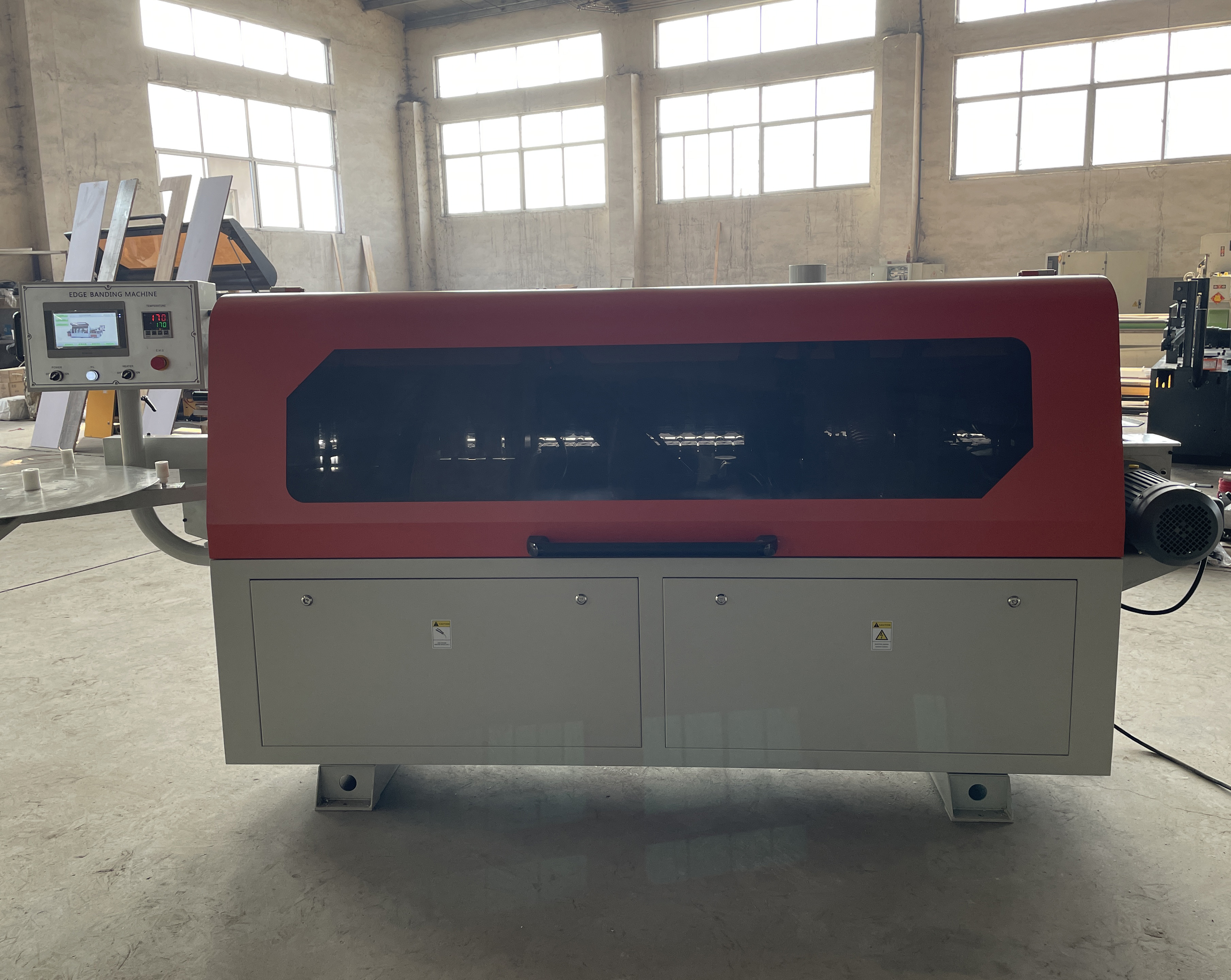

HAILIJU Qingdao full-automatic edge banding machine
Qingdao full-automatic edge banding machine
Qingdao full-automatic edge banding machine
Product parameter
Sheet length Min.140mm Sheet thickness Max.50mm
Thickness of edge band 0.4-3mm Feeding speed 15m/min
Operating air pressure 0.7Mpa Net weight 860kg
Total power 7Kw Overall dimensions 3000x750x1360mm
Packing size of wooden case 3100x890x1580mm
Qingdao full-automatic edge banding machine
Detailed function introduction

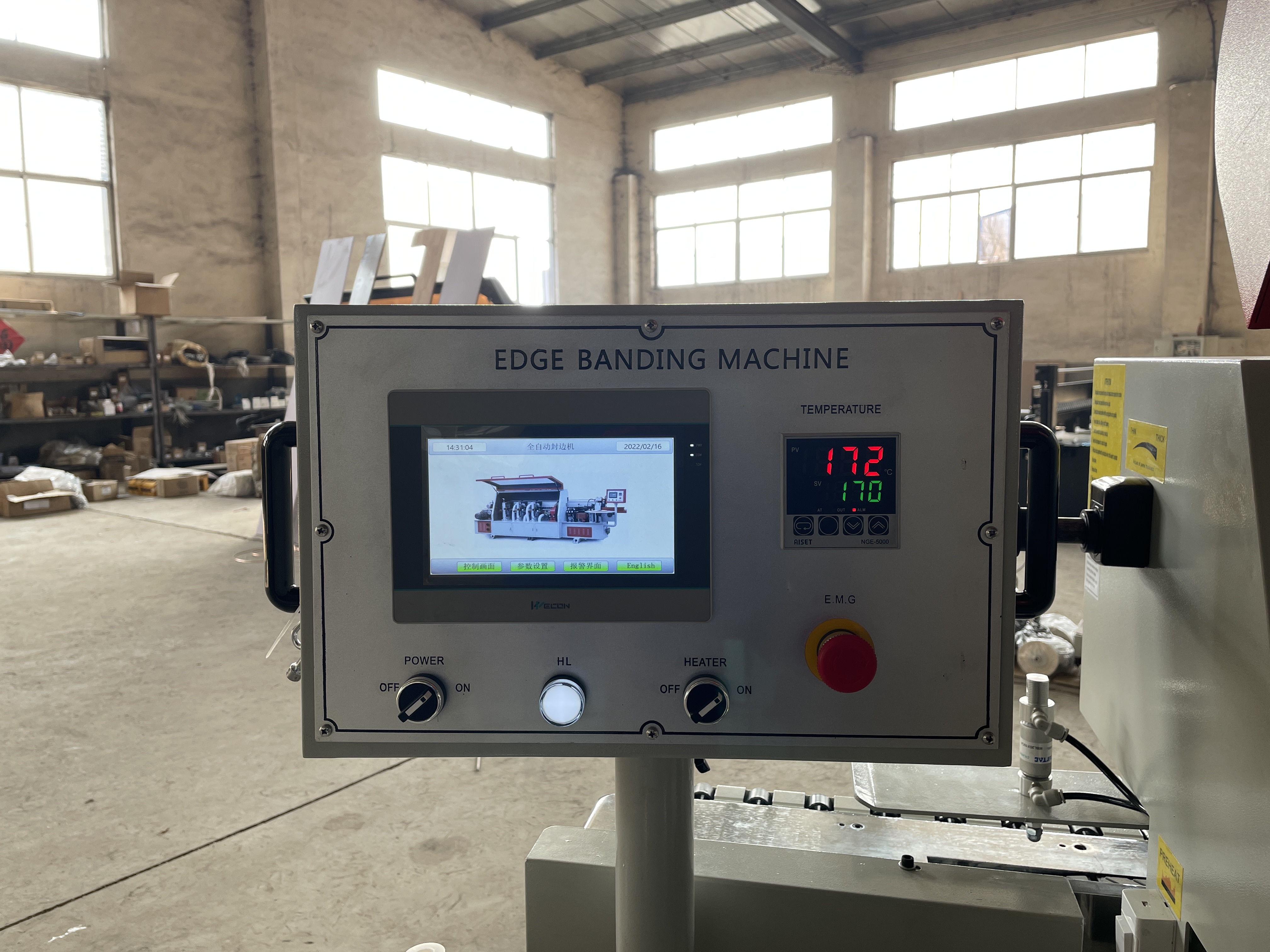

01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

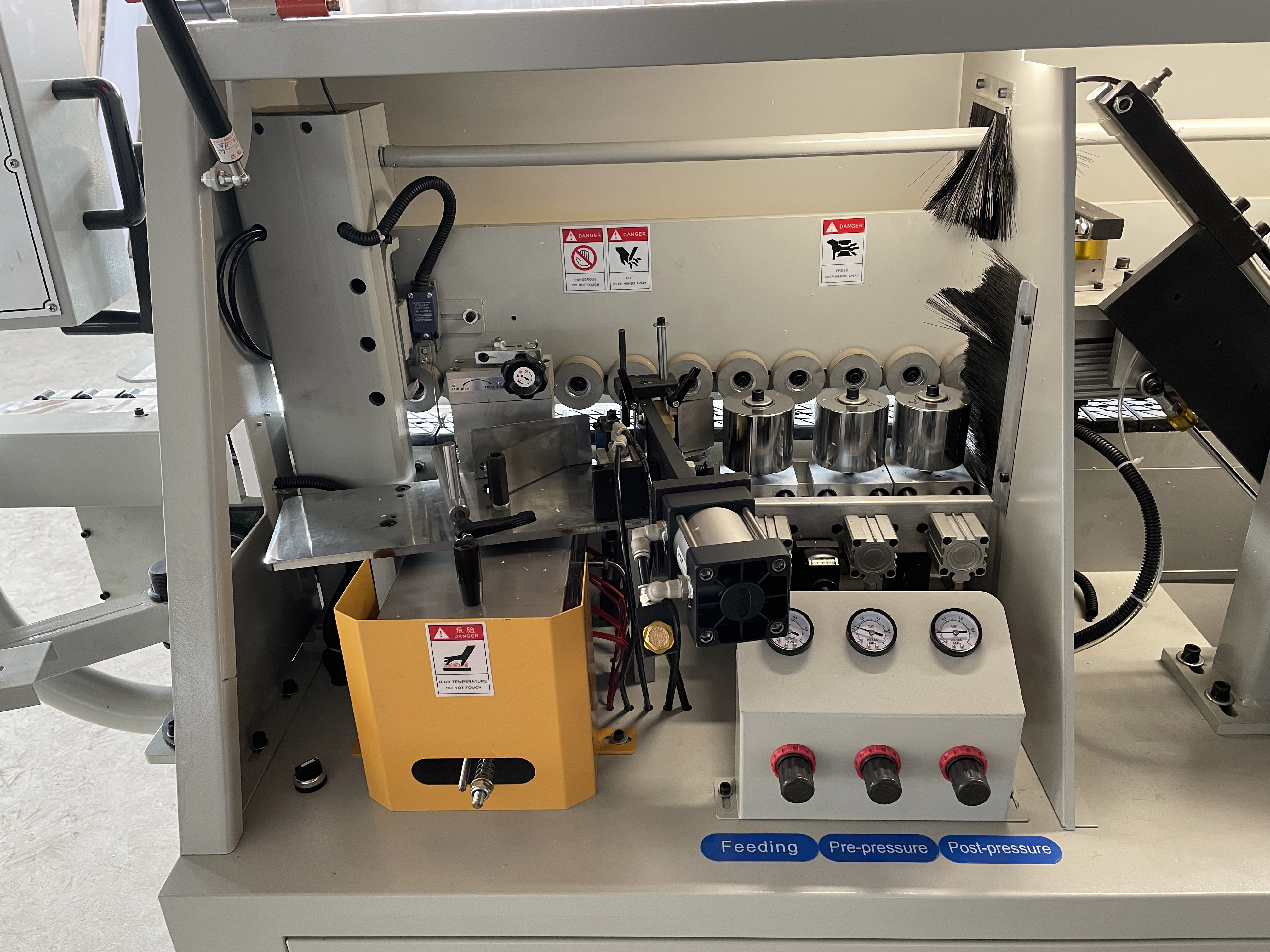

02.Edge sealing and gluing device
Glue is applied by heating the glue tank and using imported scientific and technological structure to make the glue plate and edge band evenly coated. The edge band and plate are pressed by the pressing wheel and firmly bonded.

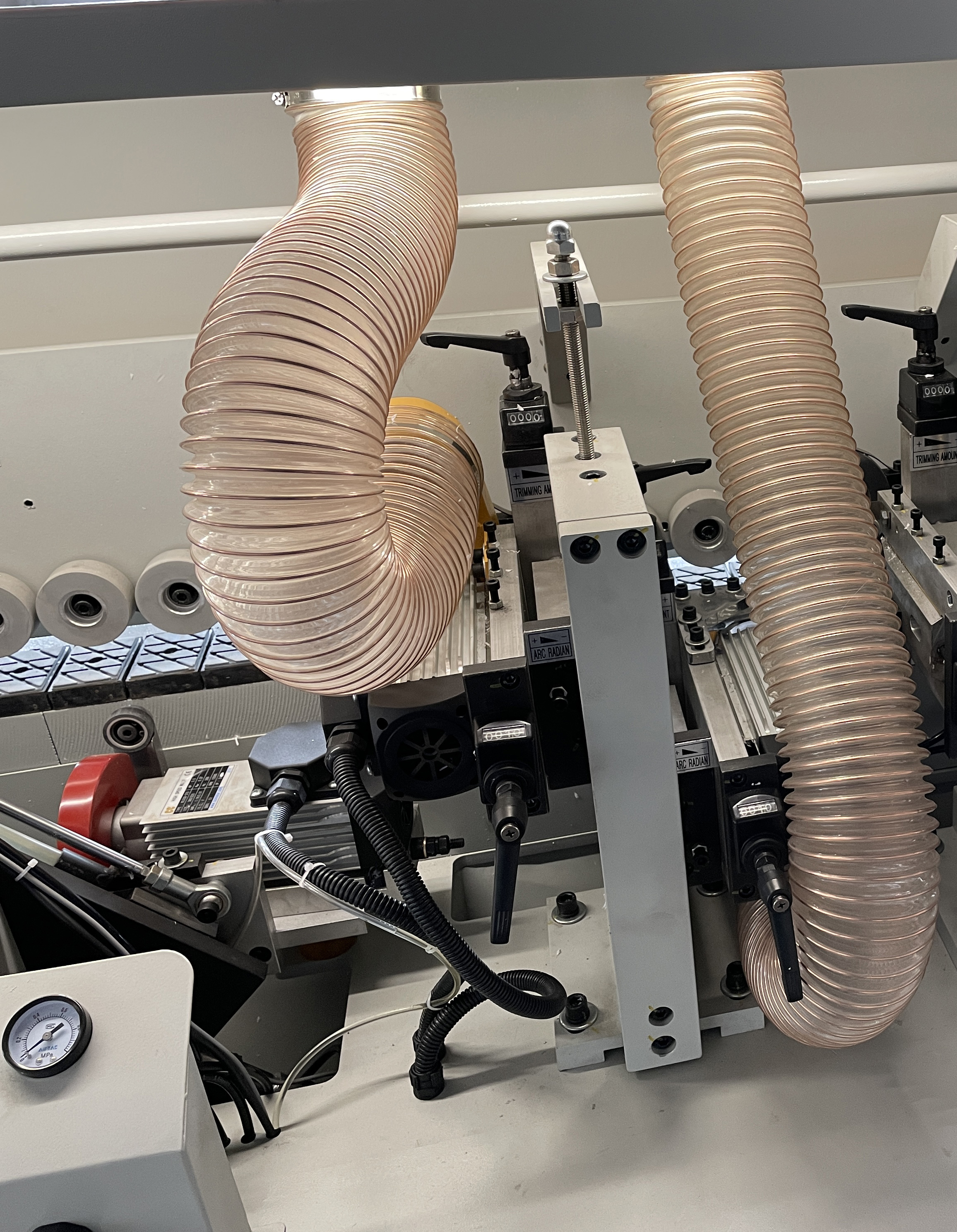

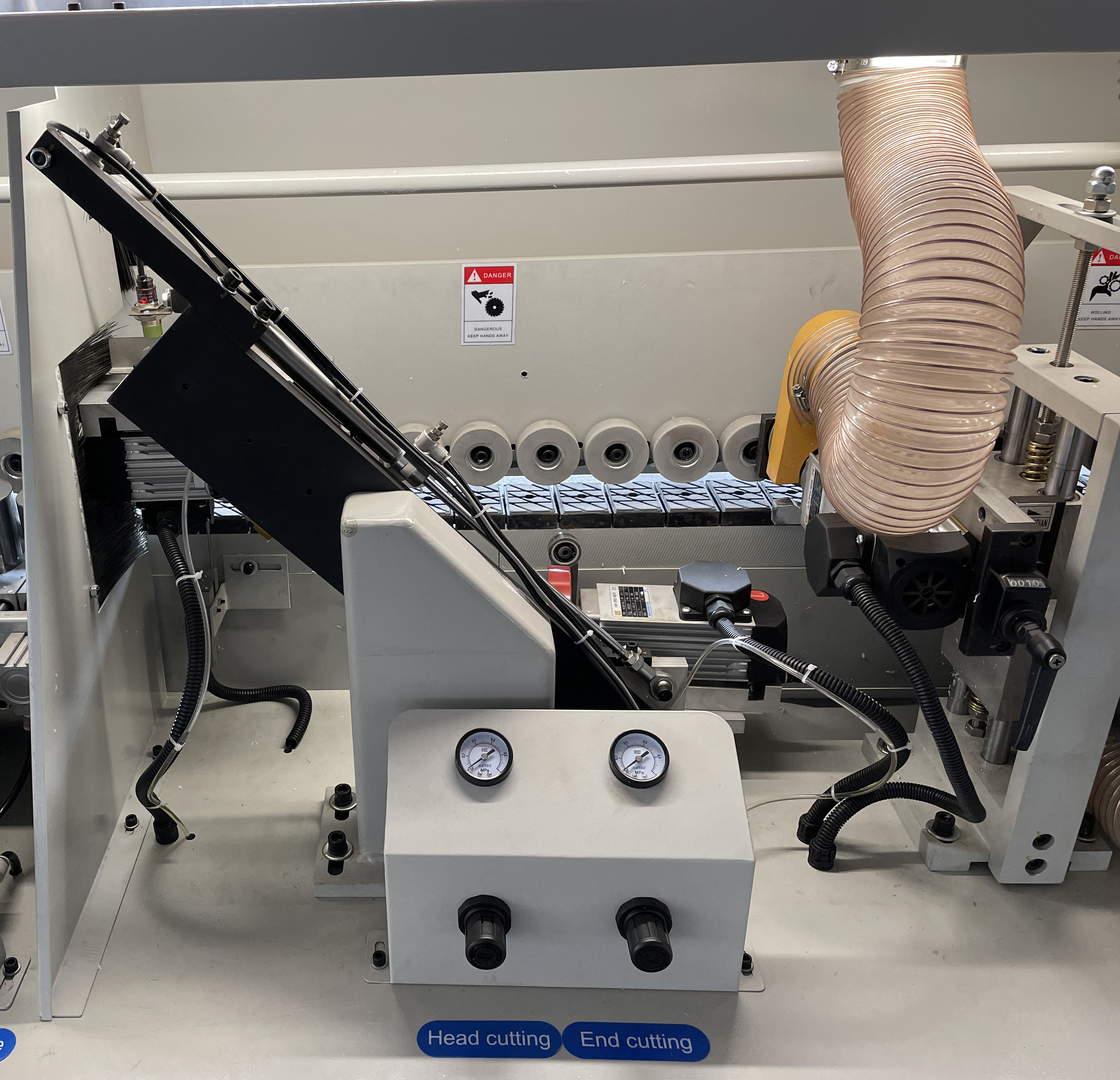

03.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

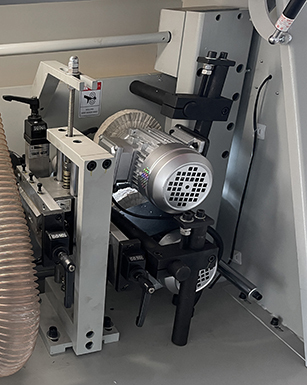

04.Finishing device
Repair the upper and lower redundant parts of the edge banding belt of the processed plate, and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.
05.Scraping and polishing device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process,so as to make the upper and lower parts of the plate more smooth and tidy.Then use a cotton polishing wheel to clean the processed plate,remove the excess glue, and polish to make the edge sealing end more smooth.

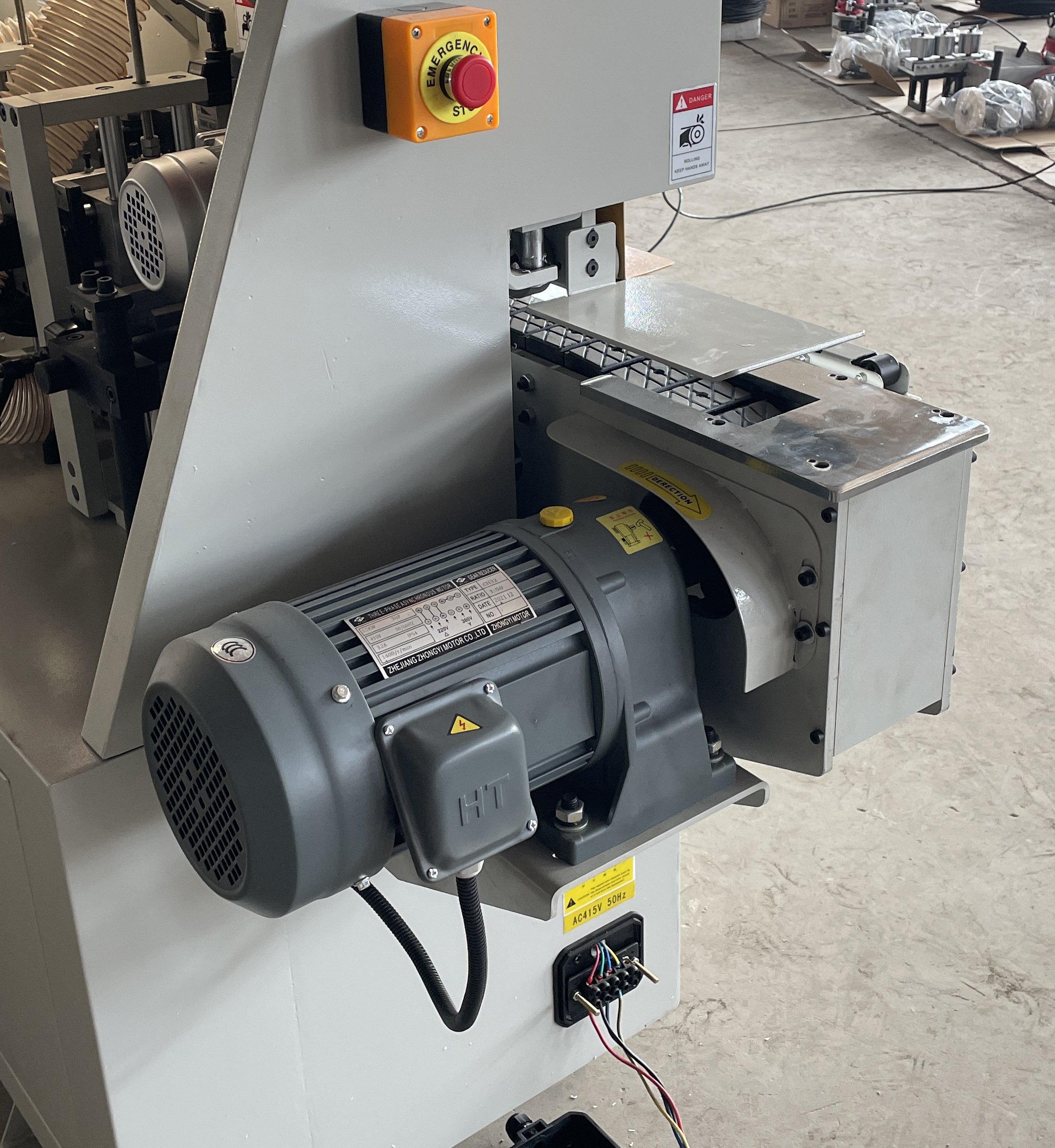

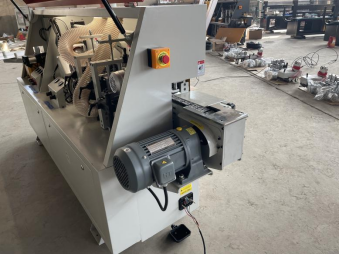

06.Conveying motor
High power pure copper movement transmission motor,gear reducer, large torque, stable transmission.
Qingdao full-automatic edge banding machine
