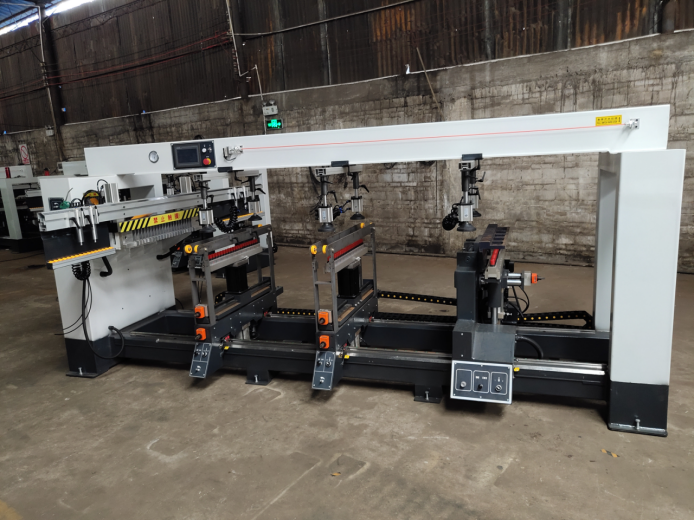

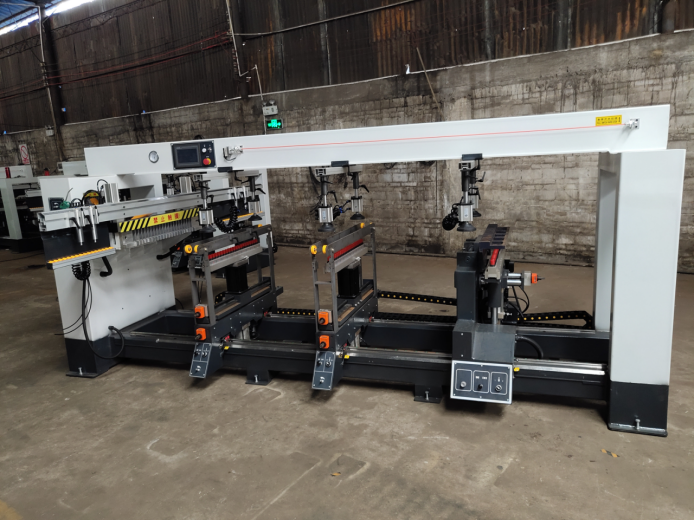

HAILIJU MZ4A Four row drilling machine
MZ4A Four row drilling machine
Product parameters
Maximum Drilling Diameter Single hole Φ35mm
Maximum Drilling Depth 60mm
Vertical Machining Holes Distance 140-1700mm
Number of Auger Shaft 21 axis*4 Row
Rotational Speed 2800r/min
Motor Power 1.5Kw*4
Air pressure 0.6-0.8MPa
Installation Dimension 3400*1080*1400mm
Packing Size 3600*1200*1600mm
Product details and function introduction
01.Operation panel
The use of brand operation panel, PIC industrial control system more powerful, lower failure rate, easy to learn simple and practical.
02.Imported running motor
Imported quality motor, in the high-temperature long-term operation, will not affect the fuselage, fuselage life is greatly extended, but also to further improve the punching quality, more worry.
03. Processing hole spacing
The black handle is a knob for adjusting the depth of the vertical drilling hole. The left side of the lower panel is the drill calibration switch, and the right side is the brake switch. The machining hole spacing is 140-2450mm.
04.Standard lubricator
Every day before starting two oil pump can lubricate the oil circuit inside the machine, improve the life of the machine.
05. Oil-water separator
The oil-water separator can effectively prevent the water vapor in the air from entering the machine and ensure the safety of the machine during use.

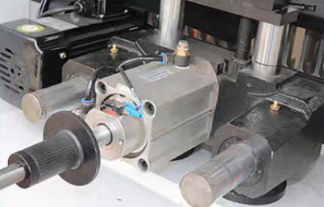

06. Display of Vertical Drill Assembly
Optimized design with a reasonable structure, built-in drag chain structure, beautiful and simple, convenient for transportation and use. The second horizontal drill of the four row drill can rotate 0-90 °, making it a multifunctional vertical drill.
Certification
