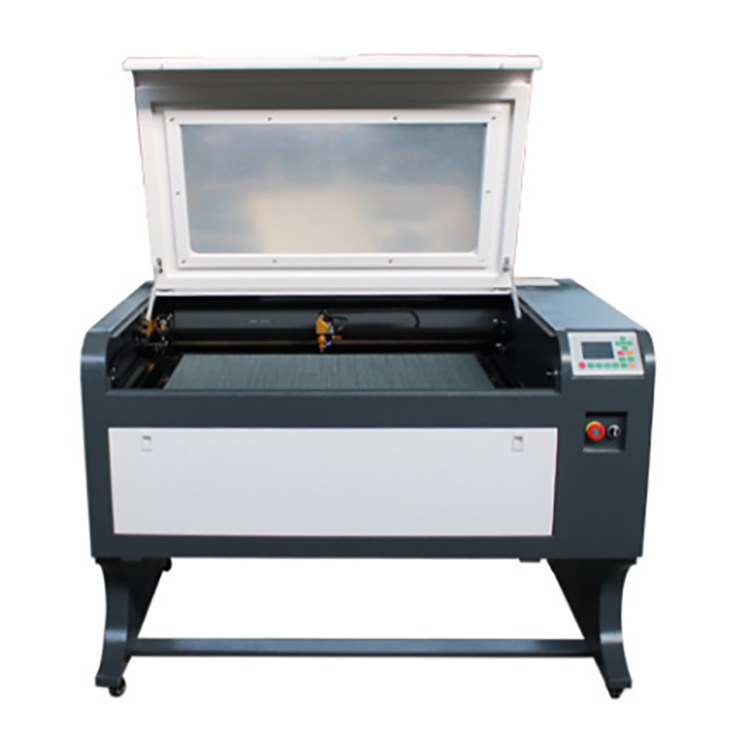

HAILIJU Laser engraving machine(Industrial grade）
Laser engraving machine（Industrial grade）
Laser engraving machine（Industrial grade）
Product parameters
Configuration Standard configuration High configuration Industrial grade
Product model 6090 Laser engraving machine (standard configuration） 6090 Laser engraving machine (high configuration) 6090 Laser engraving machine (industrial grade）
Color separation nothing Cutting, carving and separation up to 256 colors Cutting, carving and separation up to 256 colors
Tiered Output nothing have have
Power failure continuation nothing have have
Recommended working hours per day 2h 16h Continuous 24h
Laser power (optional) 50W 60W 80W 100W 50W 60W 80W 100W 50W 60W 80W 100W
Whether it can be added CCD no yes yes
Rotary roller Can be added Can be added Can be added
Actual working area 600*900mm 600*900mm 600*900mm
Engraving speed ≤30000mm/min(Real time adjustable） ≤40000mm/min (Real time adjustable） ≤60000mm/min (Real time adjustable）
Working voltage 110V/220V,50-60Hz 110V/220V,50-60Hz 110V/220V,50-60Hz
Operating temperature/humidity 0-45℃/5-95℃ 0-45℃/5-95℃ 0-45℃/5-95℃
Drive mode Integrated drive Integrated drive Independent drive (high-end drive）
Cooling mode water-cooling water-cooling water-cooling
Total power of the whole machine ≤0.8KW ≤1KW ≤1KW
Repetitive positioning accuracy ±0.01mm ±0.01mm ±0.01mm
Minimum facula 0.01mm 0.01mm 0.01mm
Operating Weight 85Kg 95kg 110kg
Laser tube type C02 Sealed glass tube C02 Sealed glass tube C02 Sealed glass tube

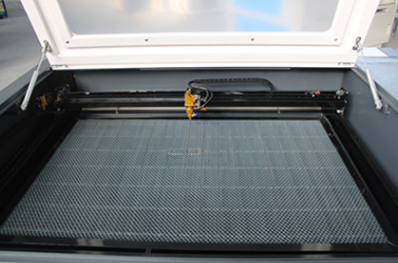

Platform type Honeycomb working platform Honeycomb work platform/tool bar platform (optional） Honeycomb work platform/tool bar platform (optional）
Control Configuration DSP DSP DSP
Data transmission interface USB USB USB
Red light indication or not yes yes yes
operating system WINDOWS 2000/XP/Vista/Win7/Win8/Win10 WINDOWS 2000/XP/Vista/Win7/Win8/Win10 WINDOWS 2000/XP/Vista/Win7/Win8/Win10
Compatible software Corellaserw/Easy to carve in China Core IDrawX4/ X2 /AutoCAD Core IDrawX4/ X2 /AutoCAD
Engraving/cutting thickness 0-10mm(Depends on different materials） 0-10mm(Depends on different materials） 0-10mm(Depends on different materials）
Whether the water supply yes yes yes
is cut off for protection
Product Details

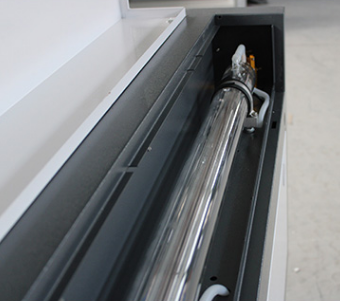

01. Laser tube
Good spot mode, high stable power output, and long service life.

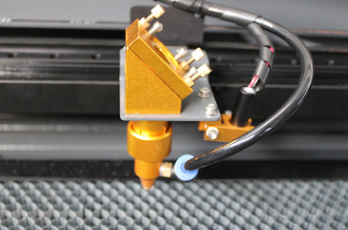

02. Customized laser head
Strong beam stability, fast cutting speed, and auto focus function can be added.

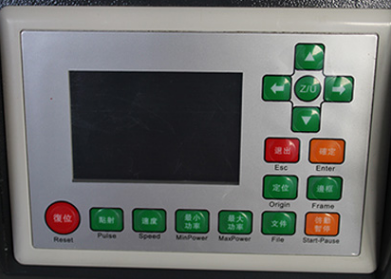

03. Advanced Panel Control System
The Chinese and English display interface has powerful digital adjustment and strong compatibility.

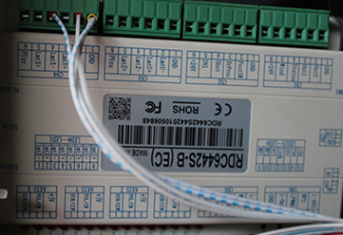

04. Main board
Efficient and stable, independent motion controller, easy to install and operate.

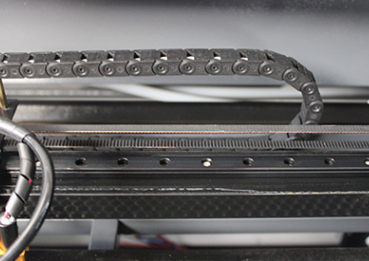

05. Industrial guide rail
Effectively protect the air pipe and line, with small transmission resistance and strong durability.

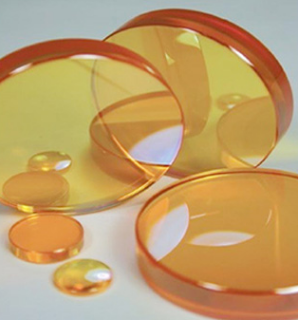

06. Imported lenses
The light transmittance imported from the United States is strong and the cutting is fine.
07. Plotter guide rail
The plotter guide rail is the one with mature technology, the fastest speed and the most extensive structure, with high efficiency, stability and long service life.
