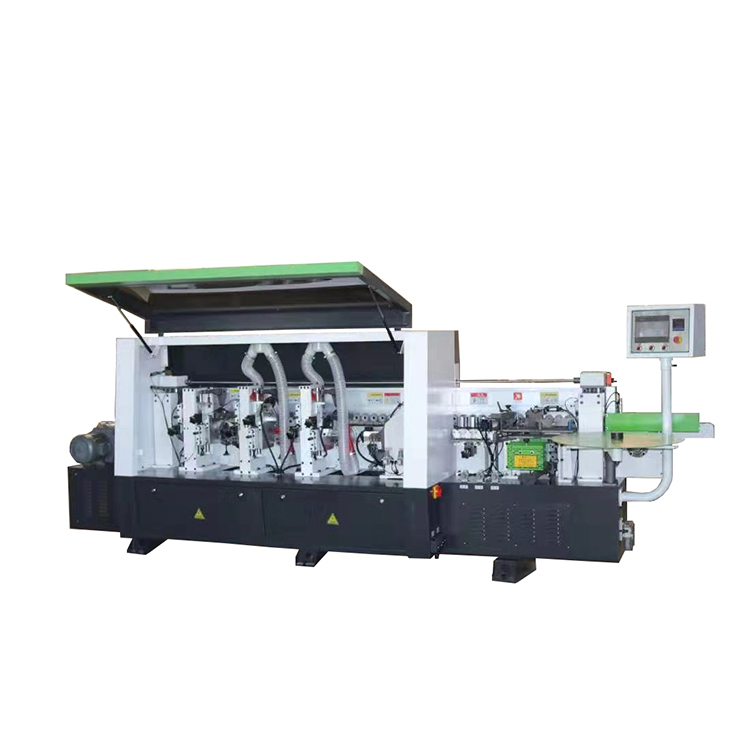

HAILIJU High quality edge banding machine
High quality edge banding machine
High quality edge banding machine
Product parameter
Product name Automatic edge banding machine Working air pressure 0.6Mpa
Panel thickness 8-60MM Machine size 2500*900*1600mm
Min working width ≥45mm Feeder speed 18-24m/min
Min working length ≥70mm Total power 16Kw
Edge bander thickness 0.3-3mm Weight 1800Kg(1.8T)
Voltage 380v/50hz Min edge banding thickness 45mm
High quality edge banding machine
Detailed function introduction
01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

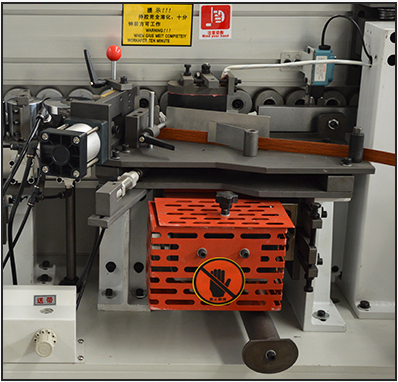

02. Edge sealing gluing device
The gluing device heats the sol through the glue pot and sends the glue with spiral structure. The gluing is fast, uniform and firm.

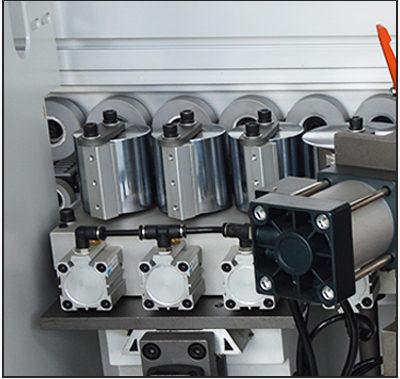

03. Edge pressing device
The spiral structure sends glue, and the edge sealing strip and the plate are pressed by the pressing wheel, so the adhesion is more firm.

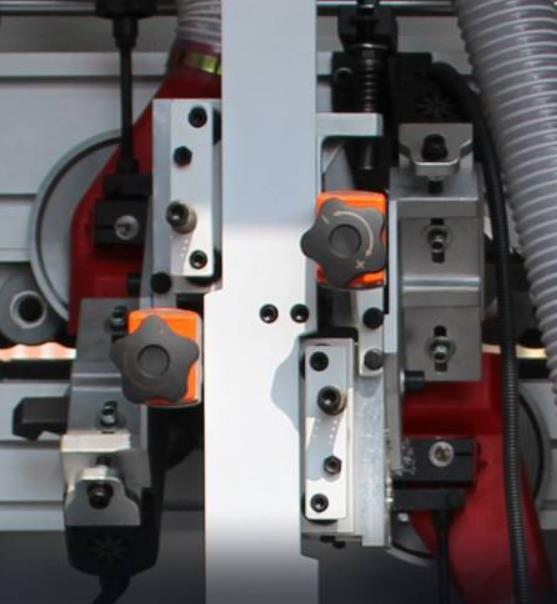

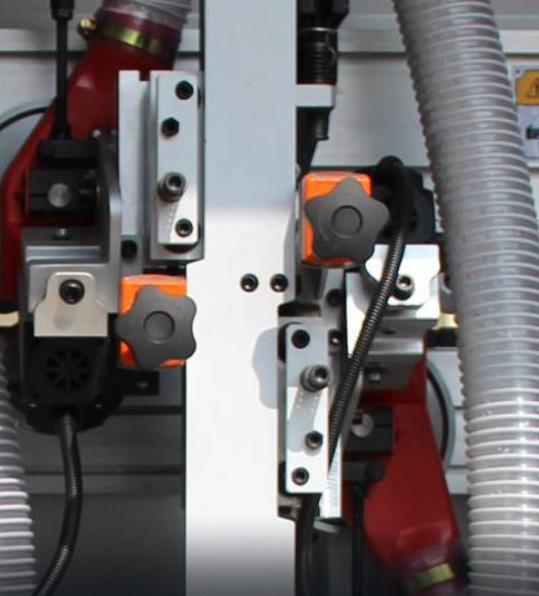

04. Rough trimming device
Adopt the structure of automatic tracing and high-frequency high-speed motor to repair the upper and lower redundant parts of the edge banding belt.

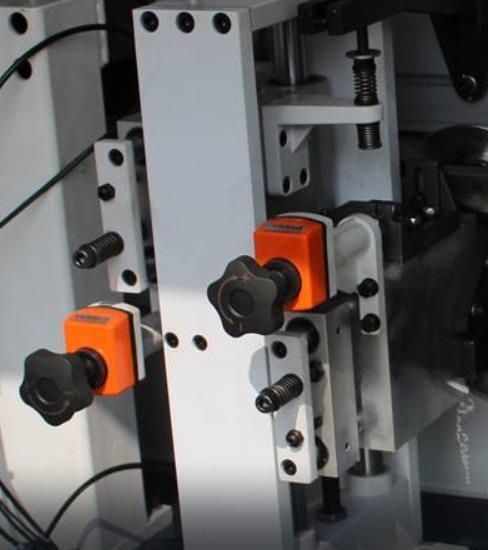

05.Fine trimming device
06.Edge scraping device

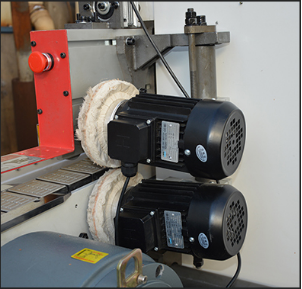

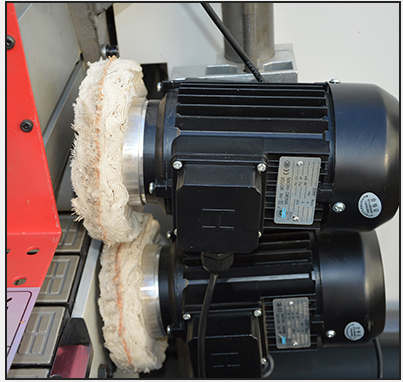

07.Polishing device

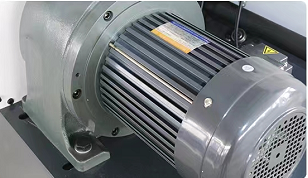

08.Conveying motor
High power pure copper movement transmission motor, gear reducer, large torque, stable transmission.
High quality edge banding machine
Certification
