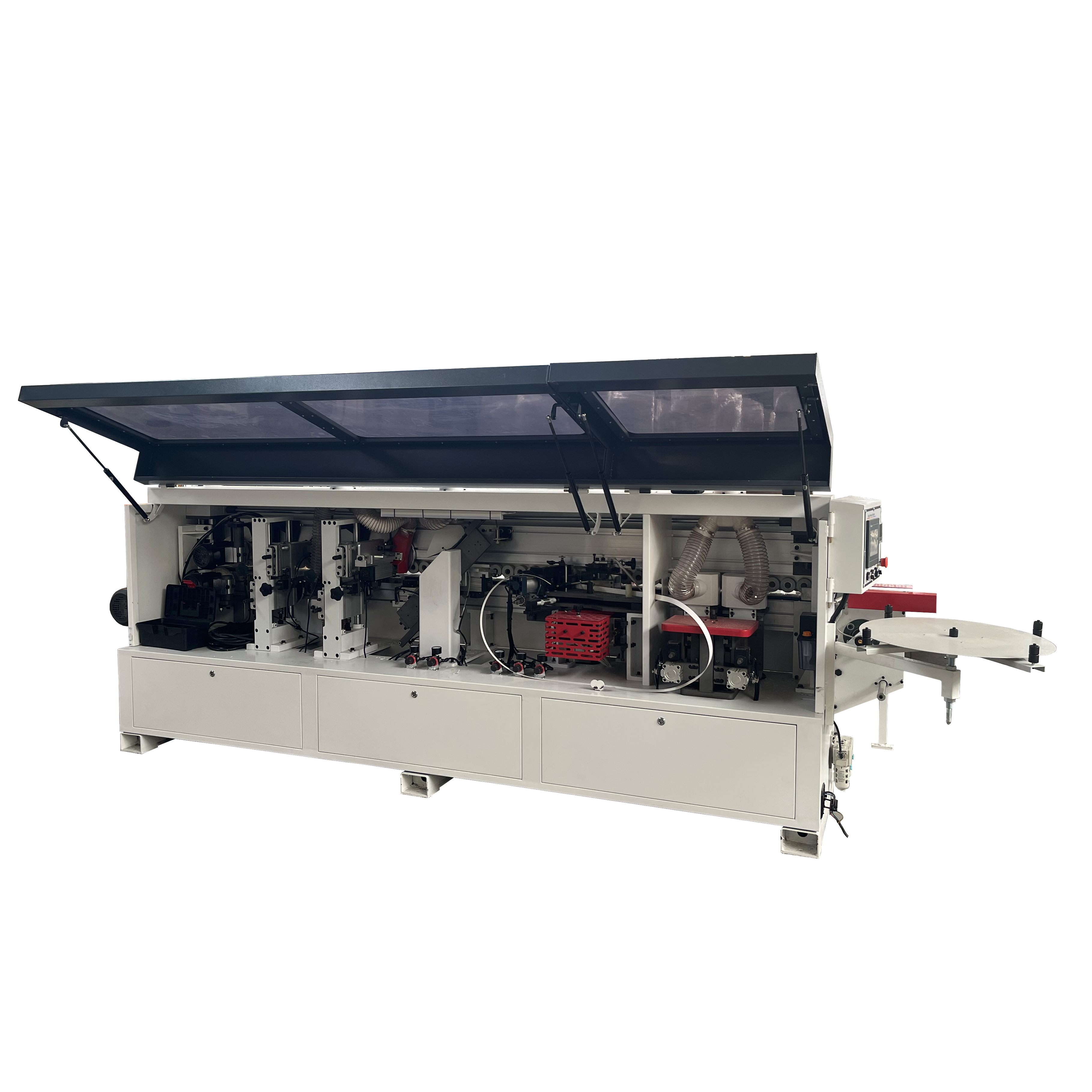

HLJ-BS61 Edge banding machine
Edge Banding Acrylic Banding Machine Edge Banding Machine HLJ-BS61 Edge banding machine

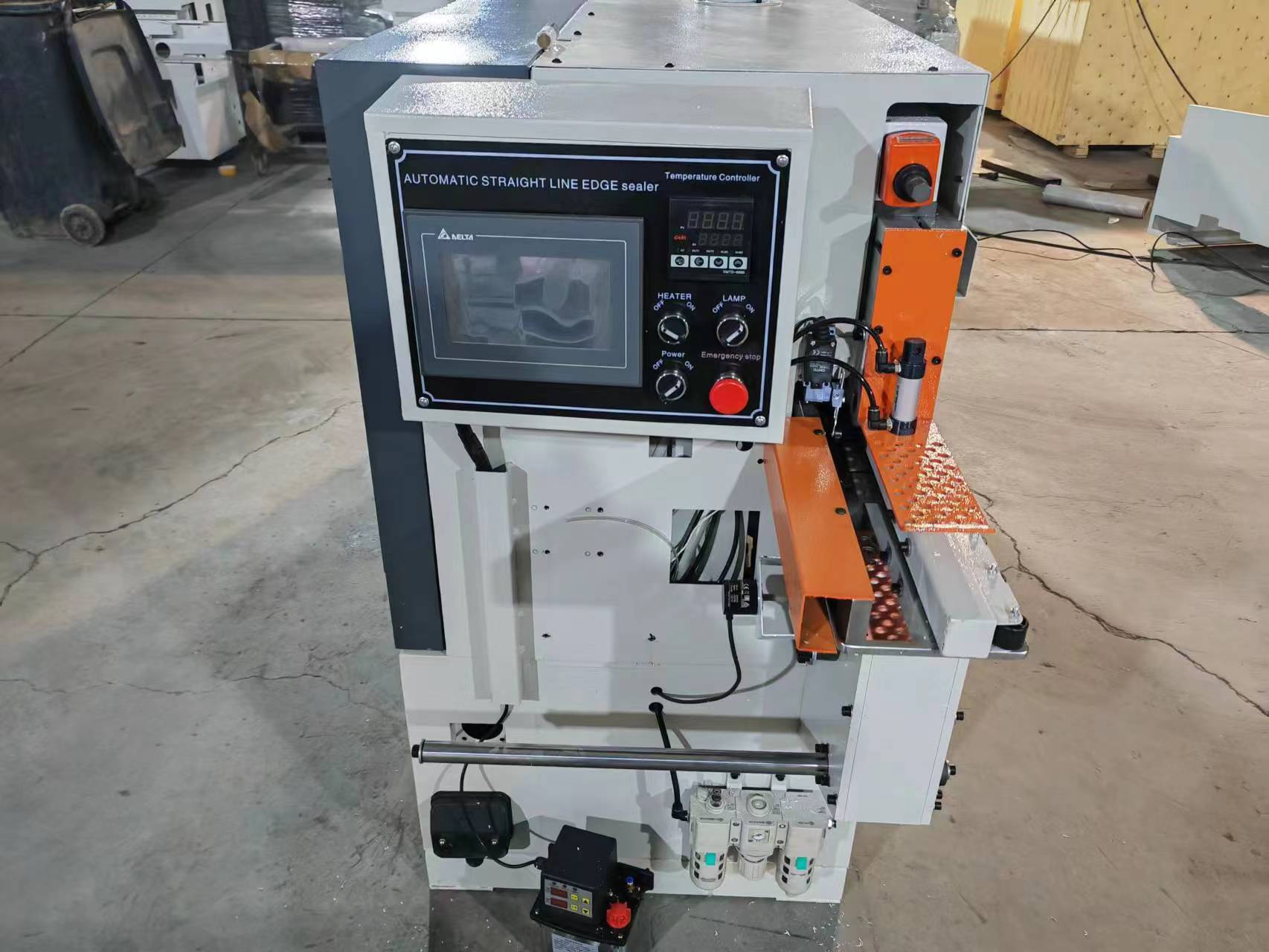

HLJ-BS61 Edge banding machine
HLJ-BS61 Edge banding machine
Product parameters
Total power 13.6kw Thickness of edge bander 0.4-3mm
Overall dimension 4000*980*1600mm Sheet width ≥40mm
Feed speed 12-20m/min Working pressure 0.6-0.8Mpa
Sheet thickness 10-55mm Weight 1.4T
HLJ-BS61 Edge banding machine
Product details

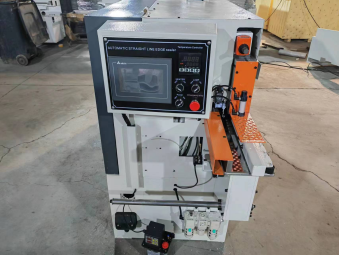

01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

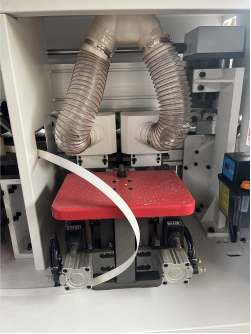

02.Pre milling device
Using double milling cutter to modify the phenomenon of mark and burr has achieved better edge sealing effect.

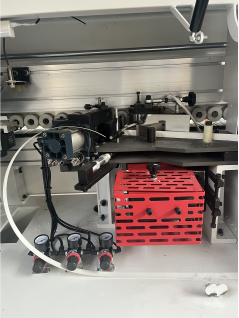

03.Adhesive tape
Apply glue by heating the glue pot and applying glue with imported scientific and technological structure, so that the glue plate and edge banding strip can be evenly applied, and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.
04.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

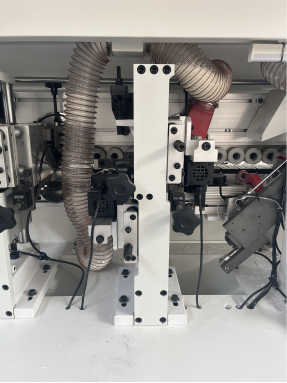

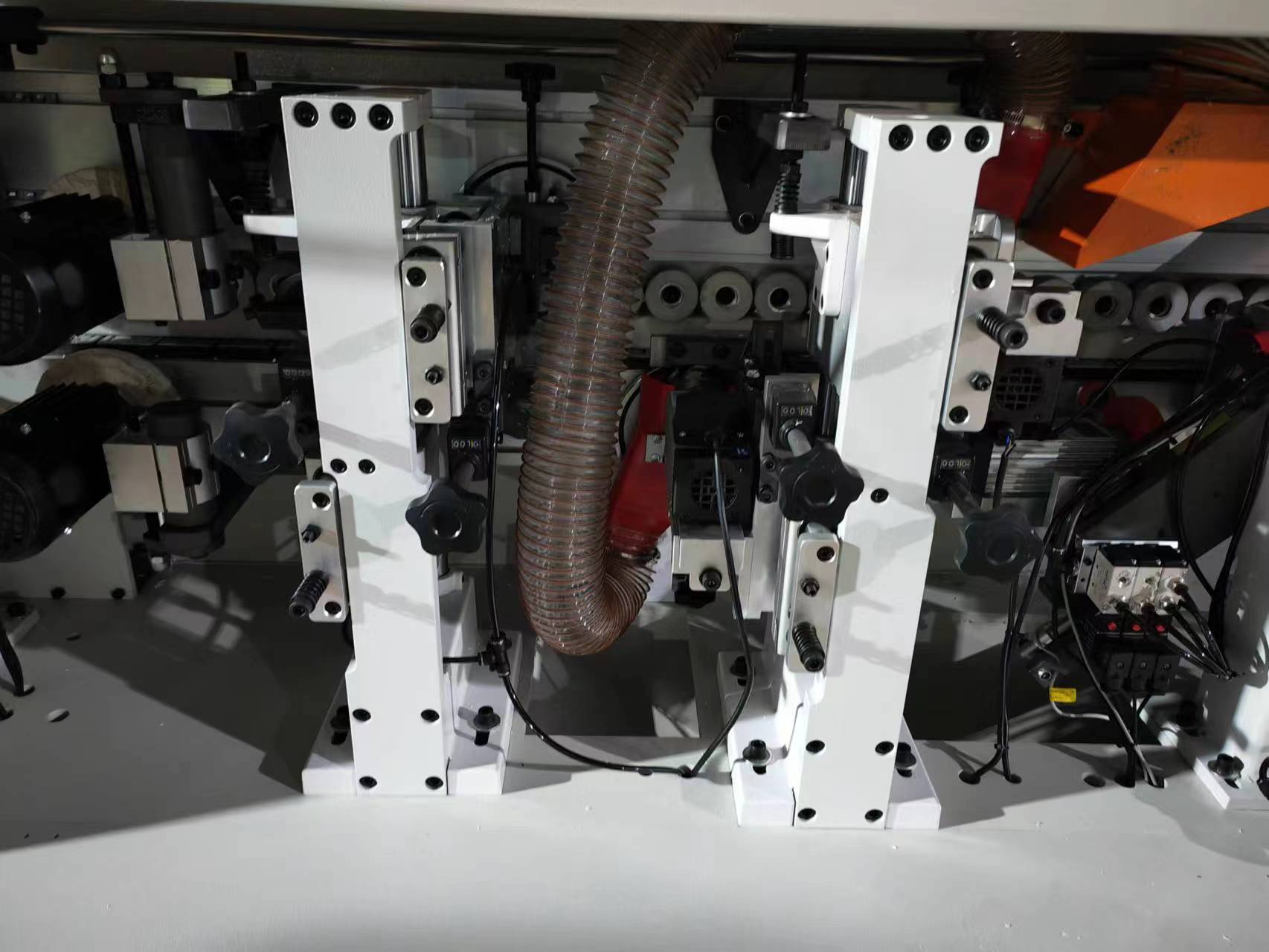

05. Refinement device
Trim off the excess parts on the upper and lower edges of the edge banding strip of the processed board, and use structures such as automatic profiling and high-frequency high-speed motors to ensure that the trimmed board is flat and smooth on both sides.
06. Edge scraping device
Used to remove ripple marks caused by non linear cutting during edge trimming, making the upper and lower parts of the board smoother and cleaner.

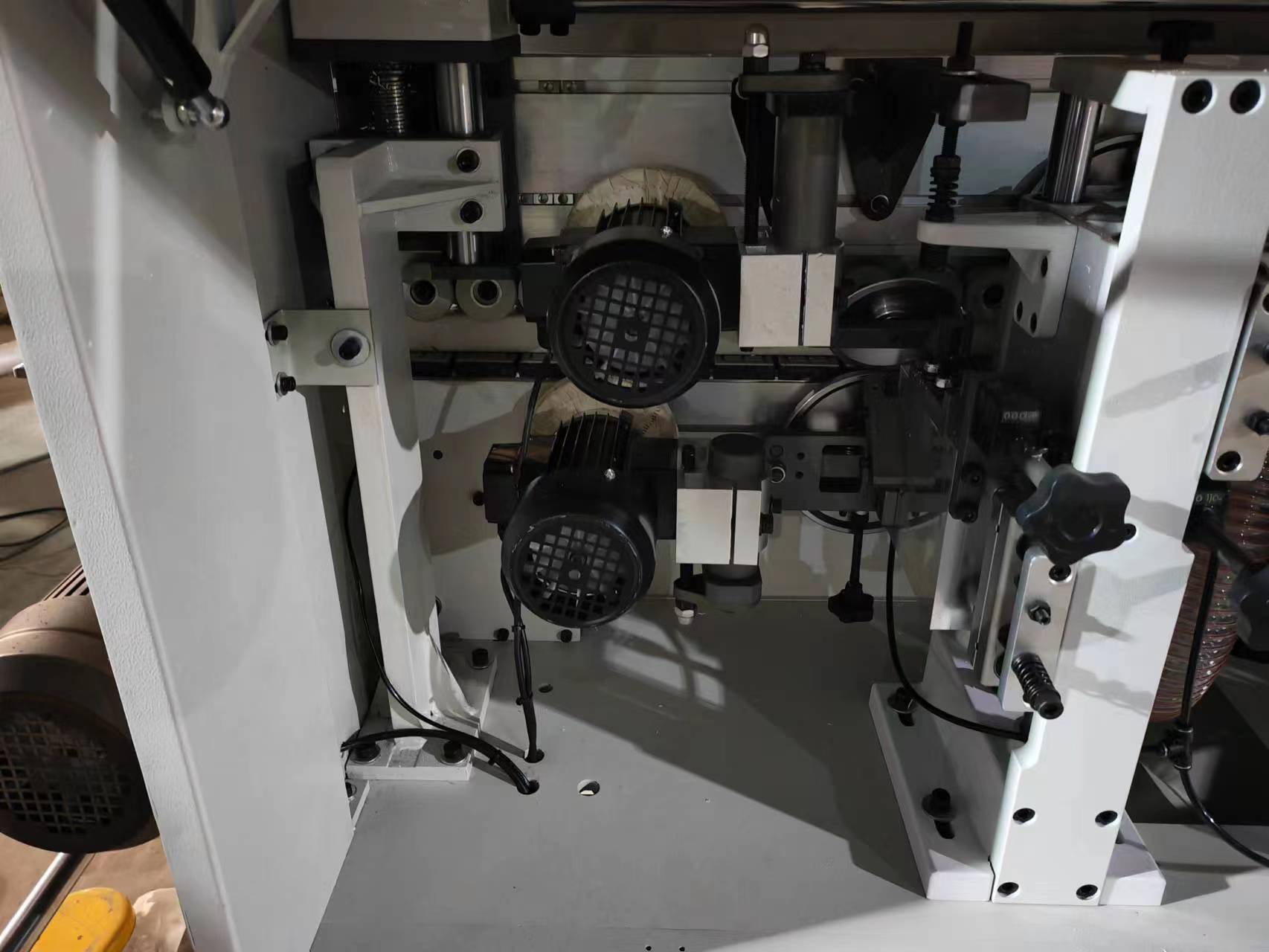

07. Polishing device
Clean the processed board with a cotton polishing wheel to remove excess glue and make the edge sealing end smoother through polishing.
HLJ-BS61 Edge banding machine
