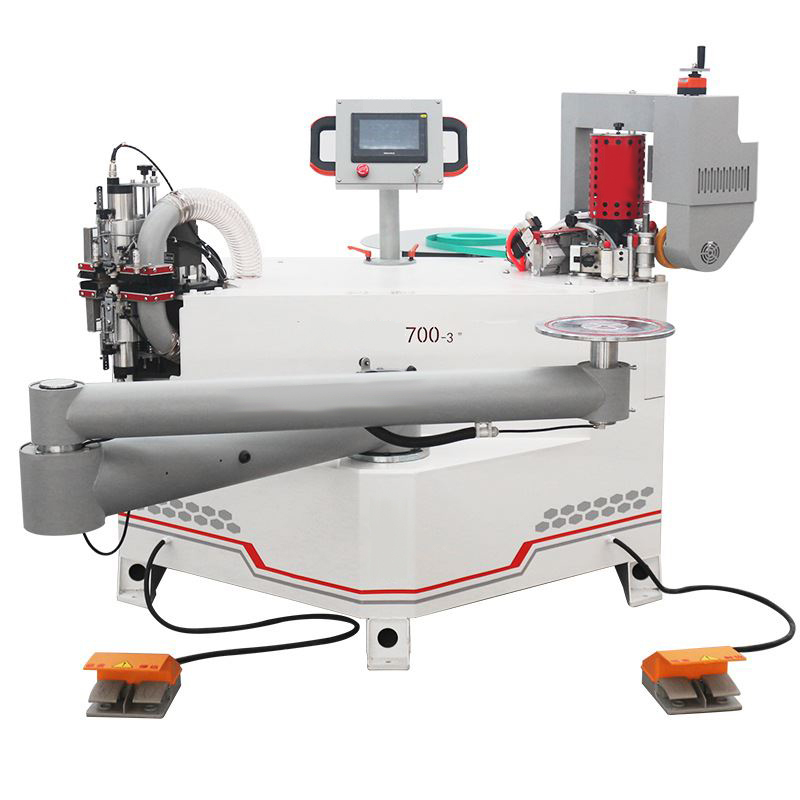

HAILIJU Fully automatic laser curve irregular edge banding machine -700
Fully automatic laser curve irregular edge banding machine -700
Fully automatic laser curve irregular edge banding machine -700
Product parameters
Supply voltage 380V/three-phase four wire/50HZ Total power 6.5KW
Air Pressure 0.6-0.8MPA Operating temperature of glue pot 110℃-210℃
Rubber pot capacity 2600ML Hot melt adhesive type PUR/EVA
External vacuum diameter 150MM Gas storage tank capacity 2L
Thickness of edge banding 0.5-3MM Edge banding width 14-70MM
Edge sealing speed 0-30M/S Minimum radius of inner arc 20MM
Trimming board thickness ＜14mm single-sided trimming, 14-70mm Half wooden box packaging size 187*140*153CM
double trimming above and below
Fully automatic laser curve irregular edge banding machine -700
Product DetailS

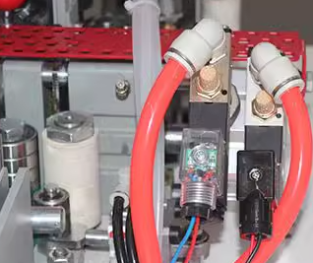

01. Automatic spray cleaning agent
Avoid sticking adhesive at the fitting wheel and pressure strip plate.

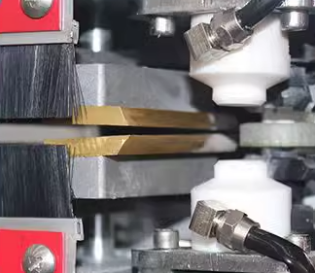

02. New second-generation cutter assembly
Ensure the vertical accuracy of cutting and achieve good cutting flatness.

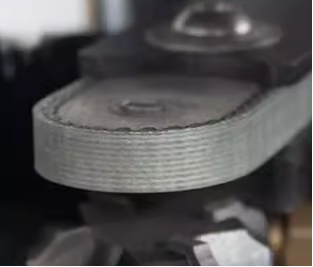

03. Fangxing Power Wheel
When trimming, the speed of the copying wheel drives the plate to rotate, making the trimming smoother and smoother.

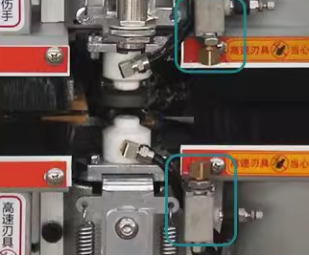

04. Top and bottom maintenance
The trimming knife rotates simultaneously, and any excess edge banding on the top and bottom is repaired in one go.
Fully automatic laser curve irregular edge banding machine -700
Certificate
