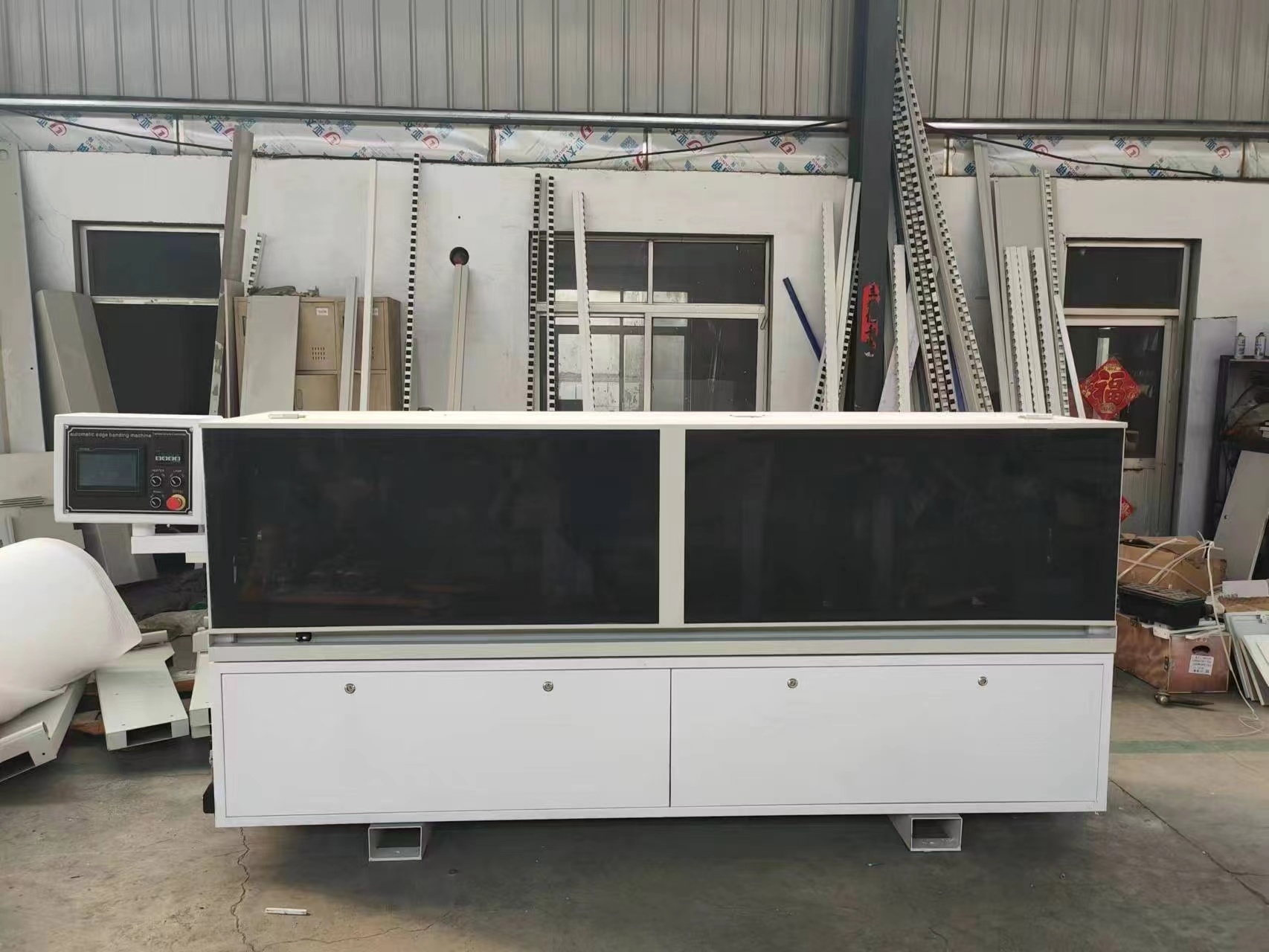

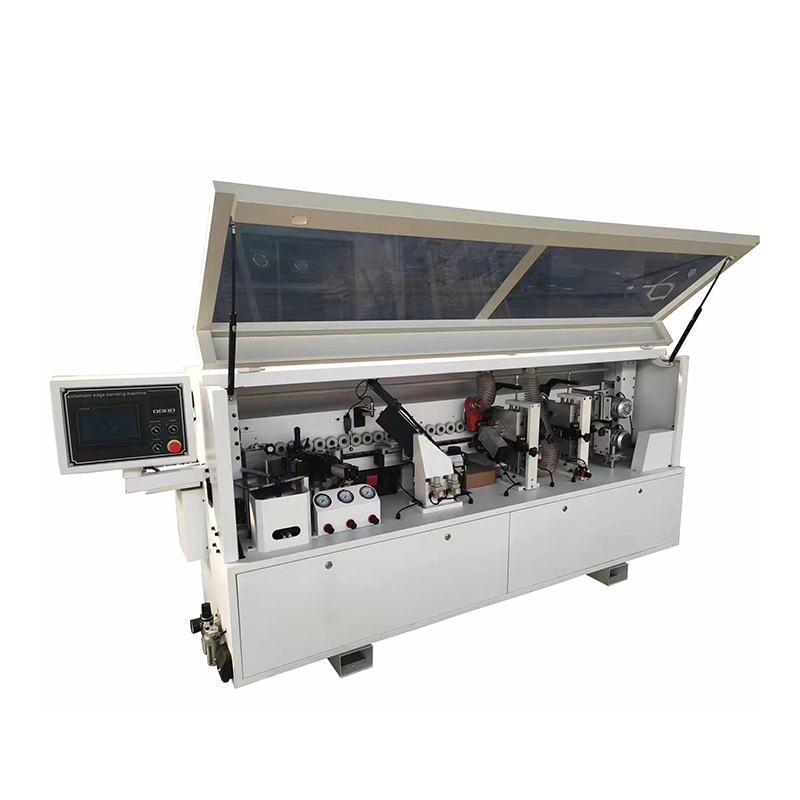

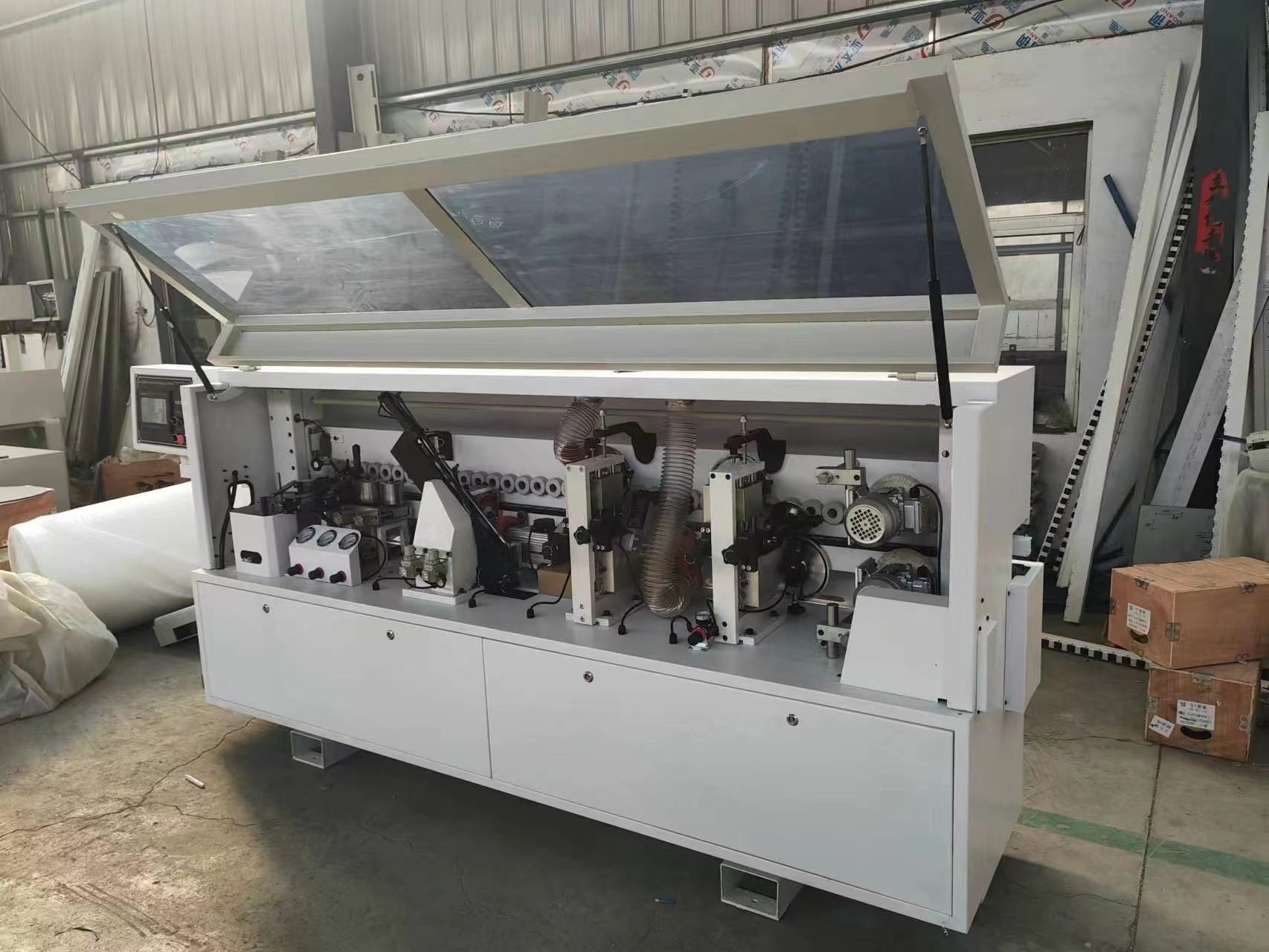

HAILIJU MF-B6 Edge banding machine
MF-B6 Edge banding machine
Product parameters
Product name Automatic edge banding machine
Minimum plate length 70mm
Minimum width of plate 80mm
Plate thickness 12-43mm
Thickness of edge banding 0.4-2
Conveying speed of edge banding belt 17m/min
Working air pressure 0.6Mpa
Transmission power 4.7KW
Weight 900KG
Package specification 2250*700*1230
MF-B6 Edge banding machine
Product details

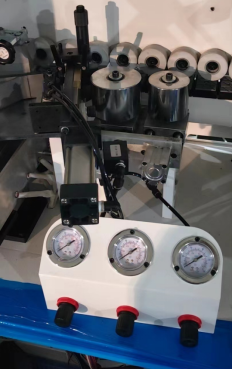

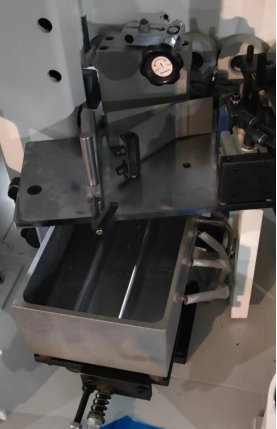

01. Edge sealing and gluing device
The glue coating device heats the sol through a glue pot and uses a spiral structure to deliver glue, which ensures fast glue coating and uniform adhesion.

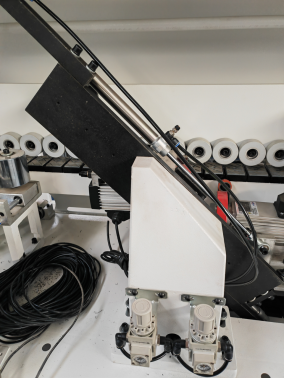

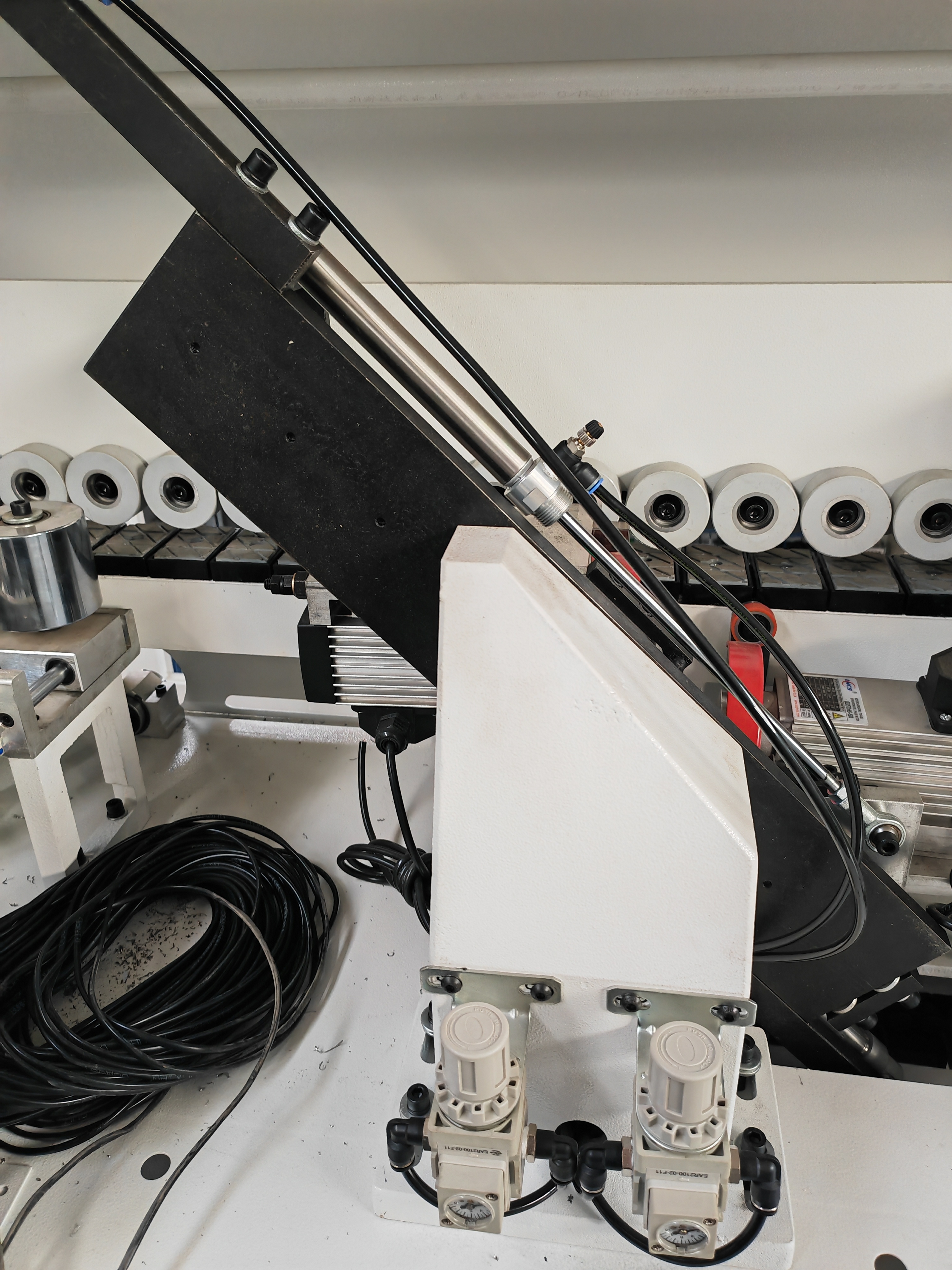

02. Edge pressing device
Spiral structure glue feeding, through the pressure wheel to press the edge banding and plate tightly, making the adhesion more firm.

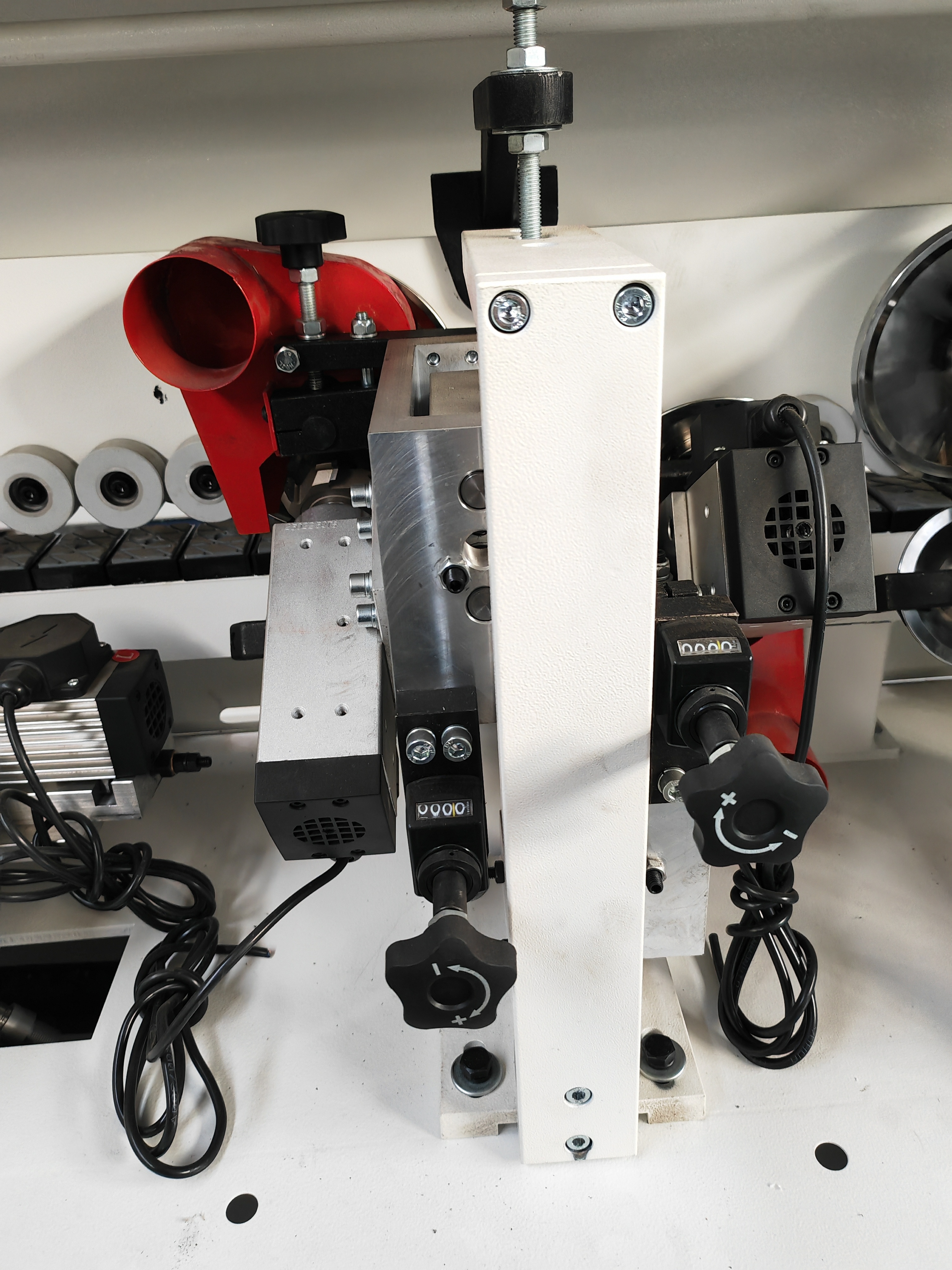

03. Front and rear end trimming
Through professional linear guide rail movement, using profiling automatic follow and high-frequency high-speed motor fast cutting structure, ensuring smooth and smooth cutting section.

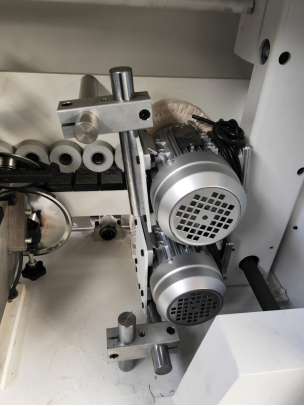

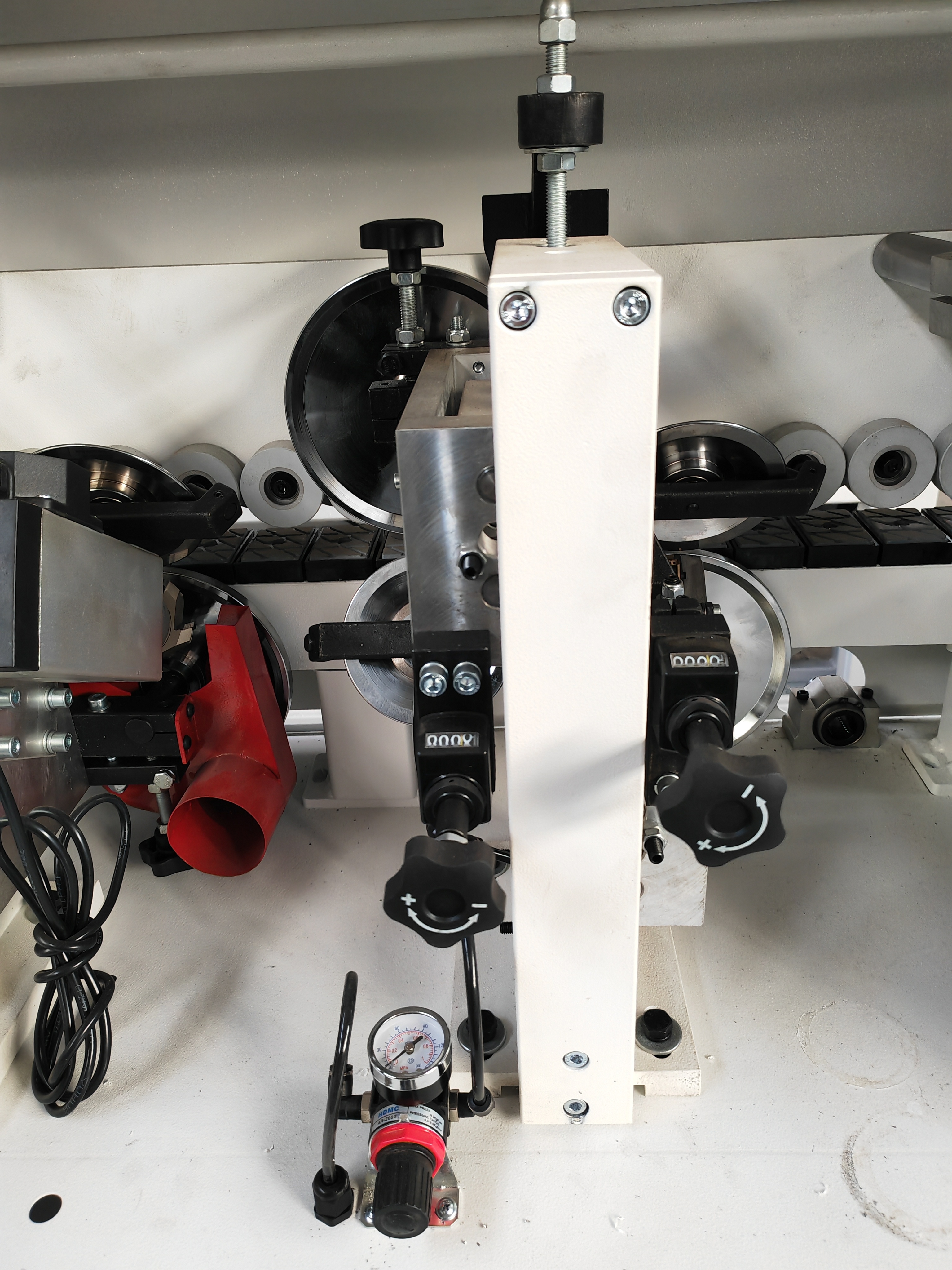

04.Finishing device
The redundant parts on the upper and lower edges of the edge banding belt of the processed plate are trimmed, and the structures such as automatic profiling and high-frequency high-speed motors are adopted to ensure that the trimmed plate is flat and smooth up and down.
05.Edge scraping device
The edge scraping device is used to eliminate the ripple marks caused by the cutting process of non linear trimming movement, making the upper and lower parts of the plate more smooth and tidy.

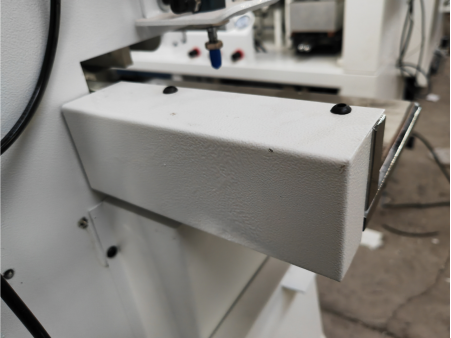

06.Preheating device
Preheat the plate to make it easier to apply adhesive evenly.

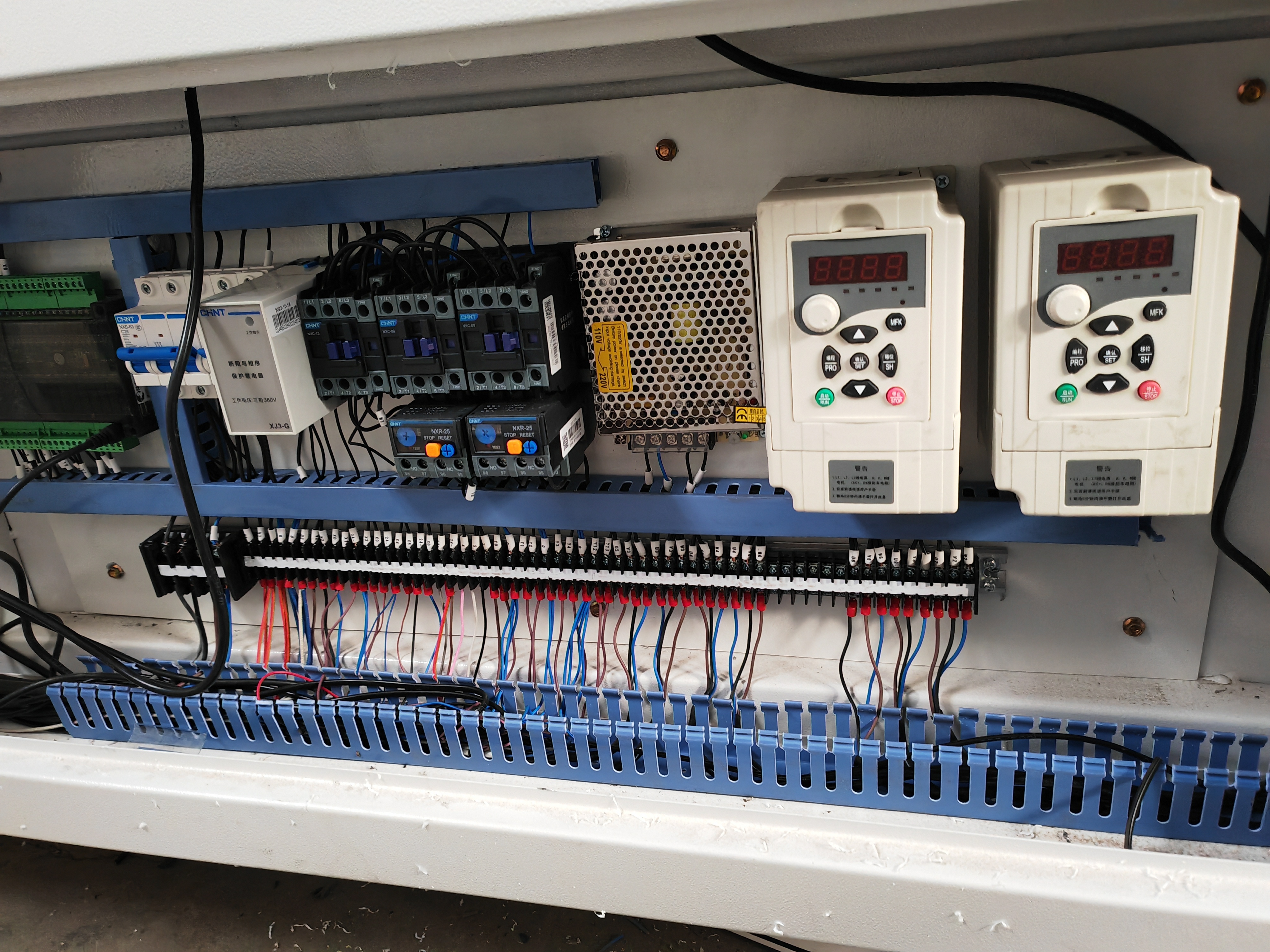

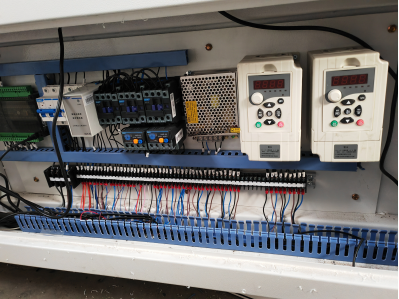

07.Circuit system
All circuit systems use genuine accessories to ensure the safety and service life of the machine, and are arranged neatly for easy adjustment.
08.Polishing device
Use a cotton polishing wheel to clean the processed plate, remove excess glue, and polish to make the edge sealing end smoother.
MF-B6 Edge banding machine
Certification
