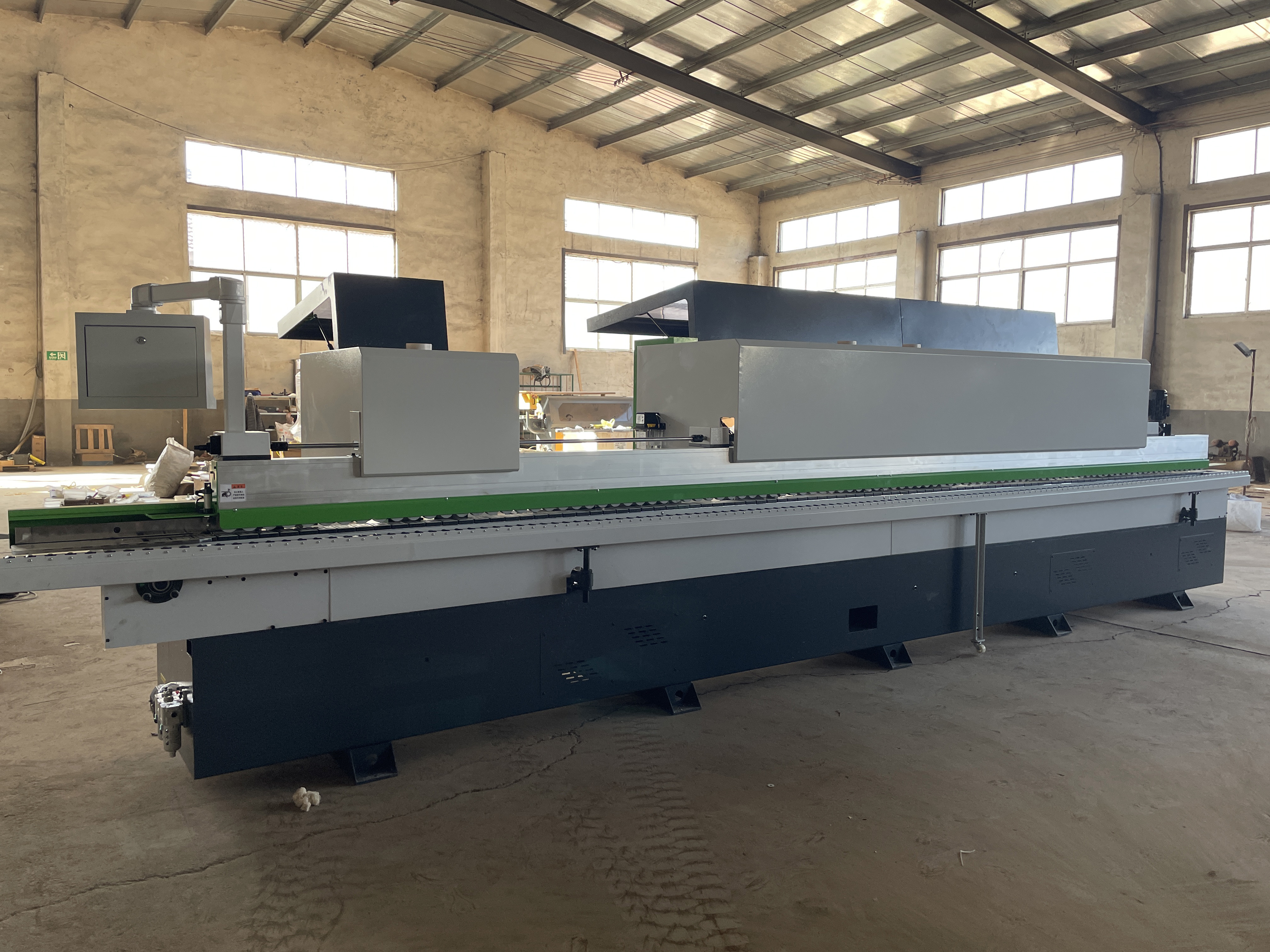

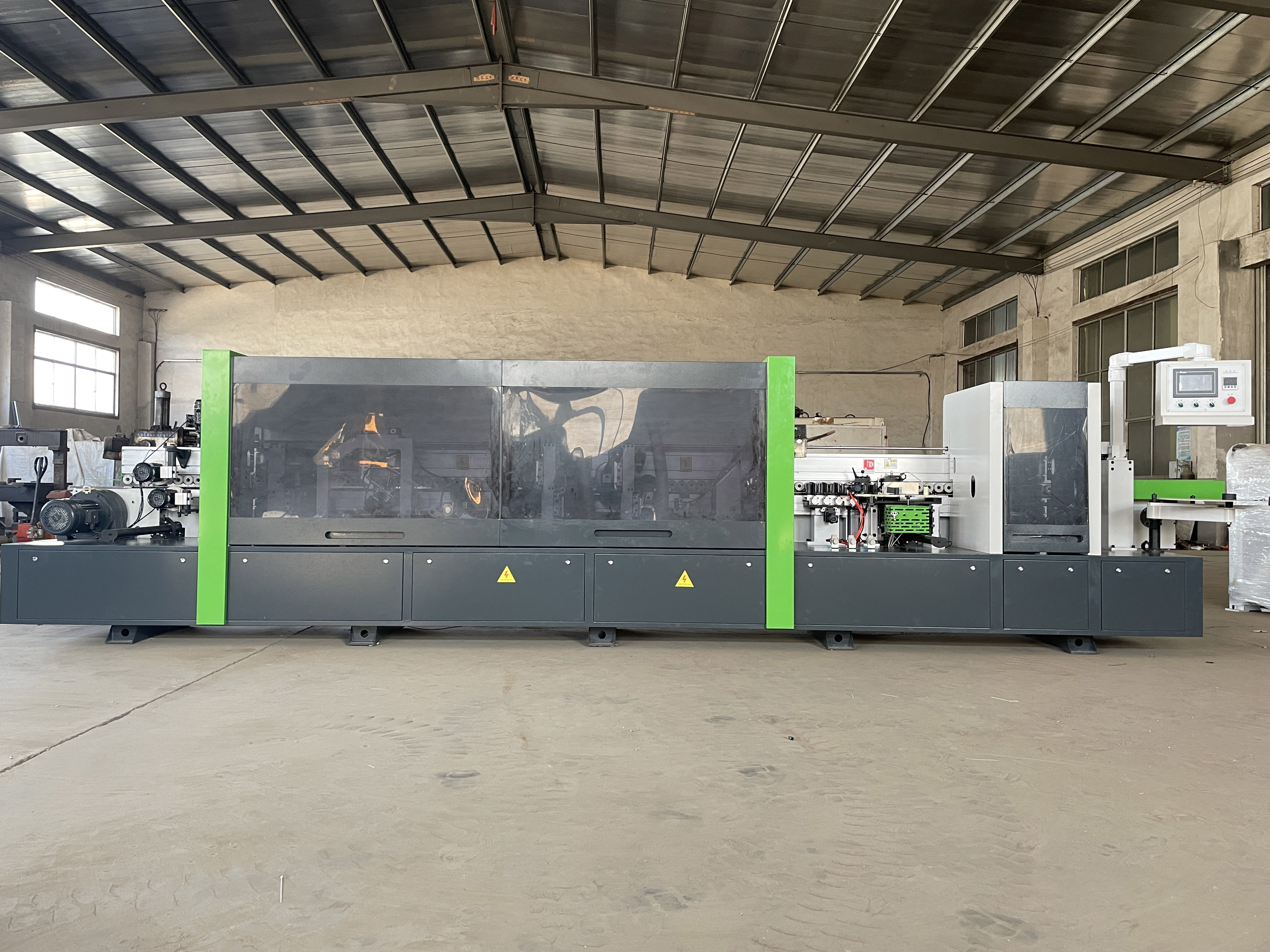

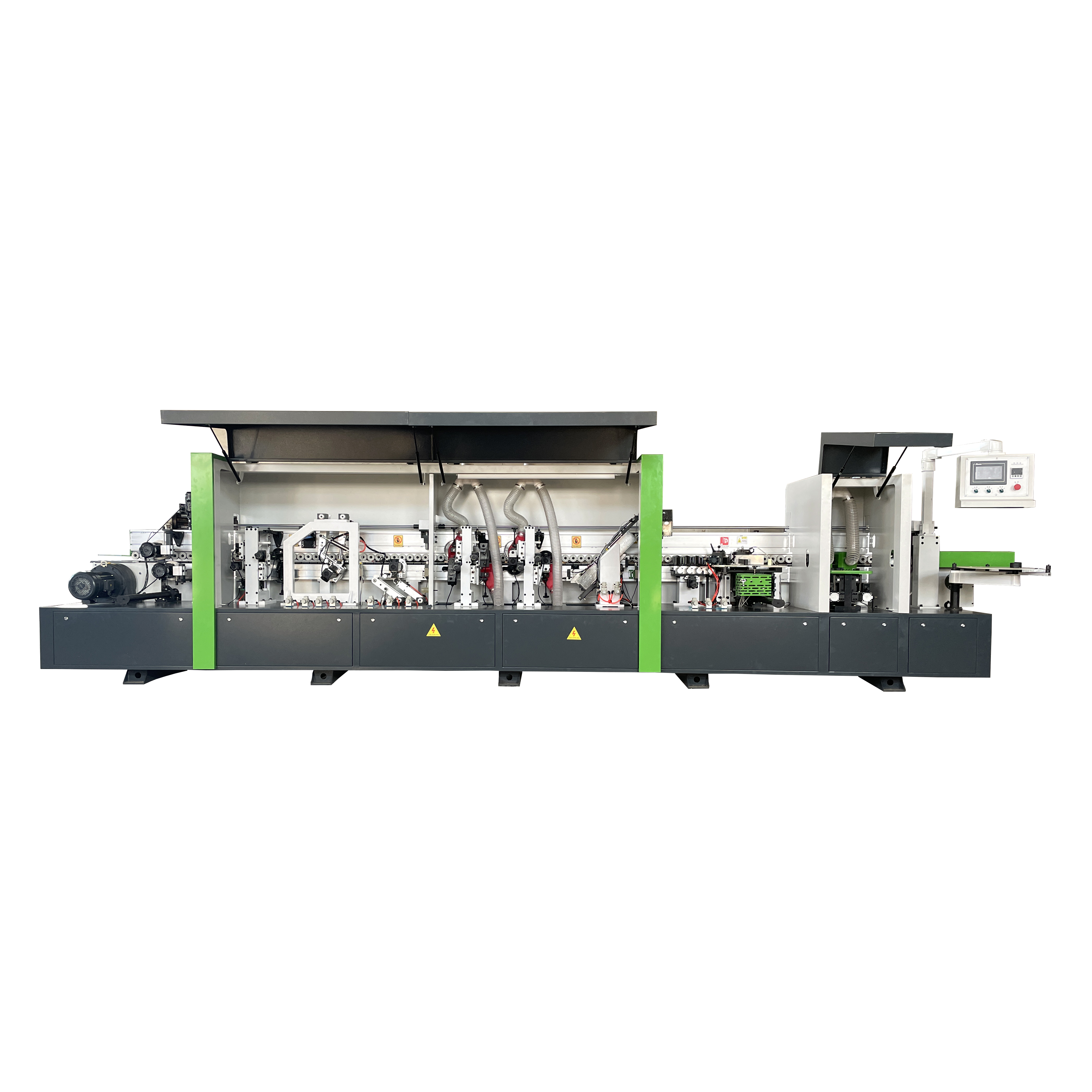

 Dajidong B6421 automatic edge banding machine

Product parameter

Product name                               Automatic edge banding machine                               Working air pressure                                         0.6Mpa

Panel thickness                             8-60MM                                                                            Machine size                                                       2500*900*1600mm

Min working width                      ≥45mm                                                                              Feeder speed                                                      18-24m/min

Min working length                    ≥70mm                                                                       Total power                                                         16Kw

Edge bander thickness               0.3-3mm                                                                              Weight                                                                          1800Kg(1.8T)

Voltage                                          380v/50hz                                                                           Min edge banding thickness                            45mm

 Dajidong B6421 automatic edge banding machine

Detailed function introduction

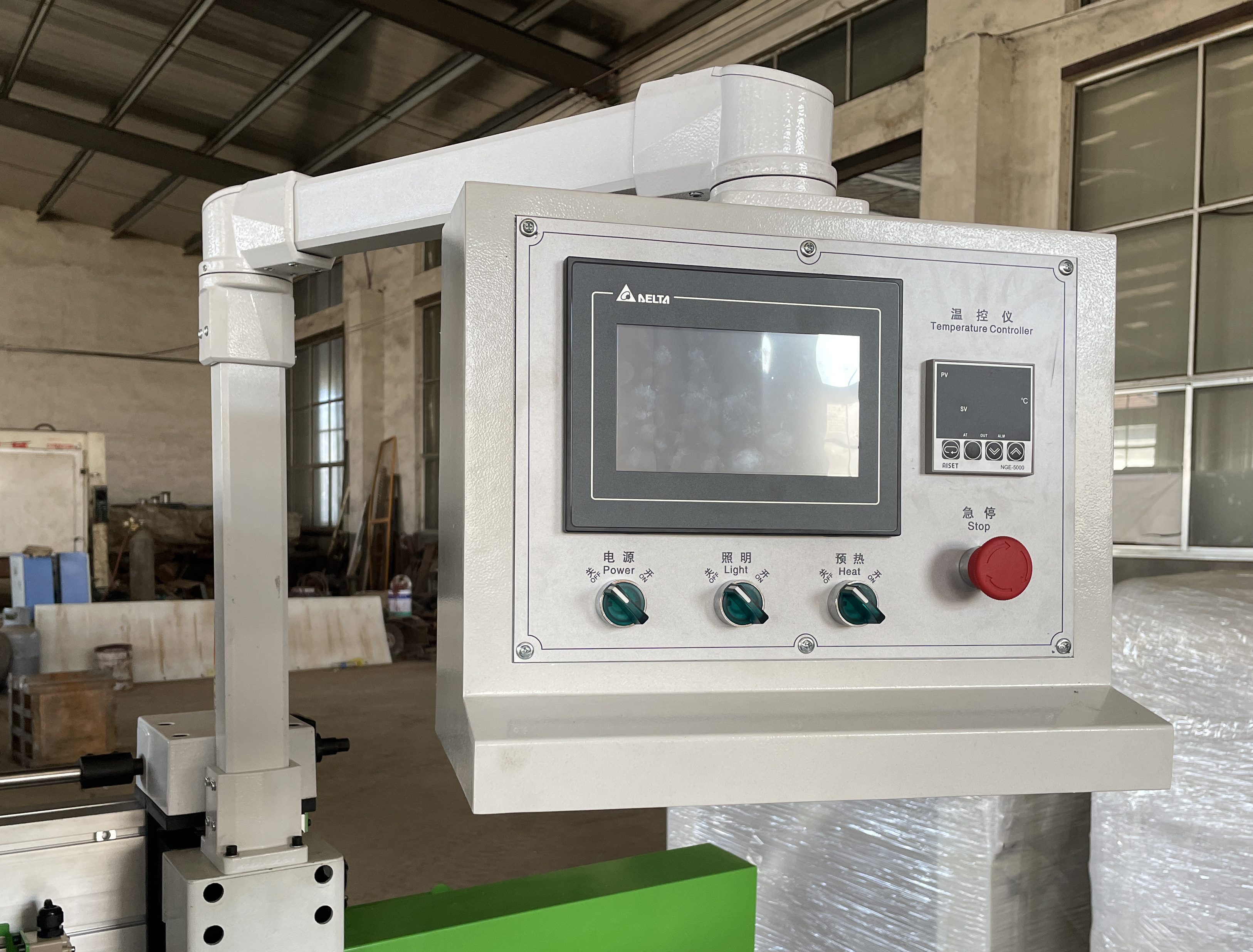

01.PLC intelligent control

The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

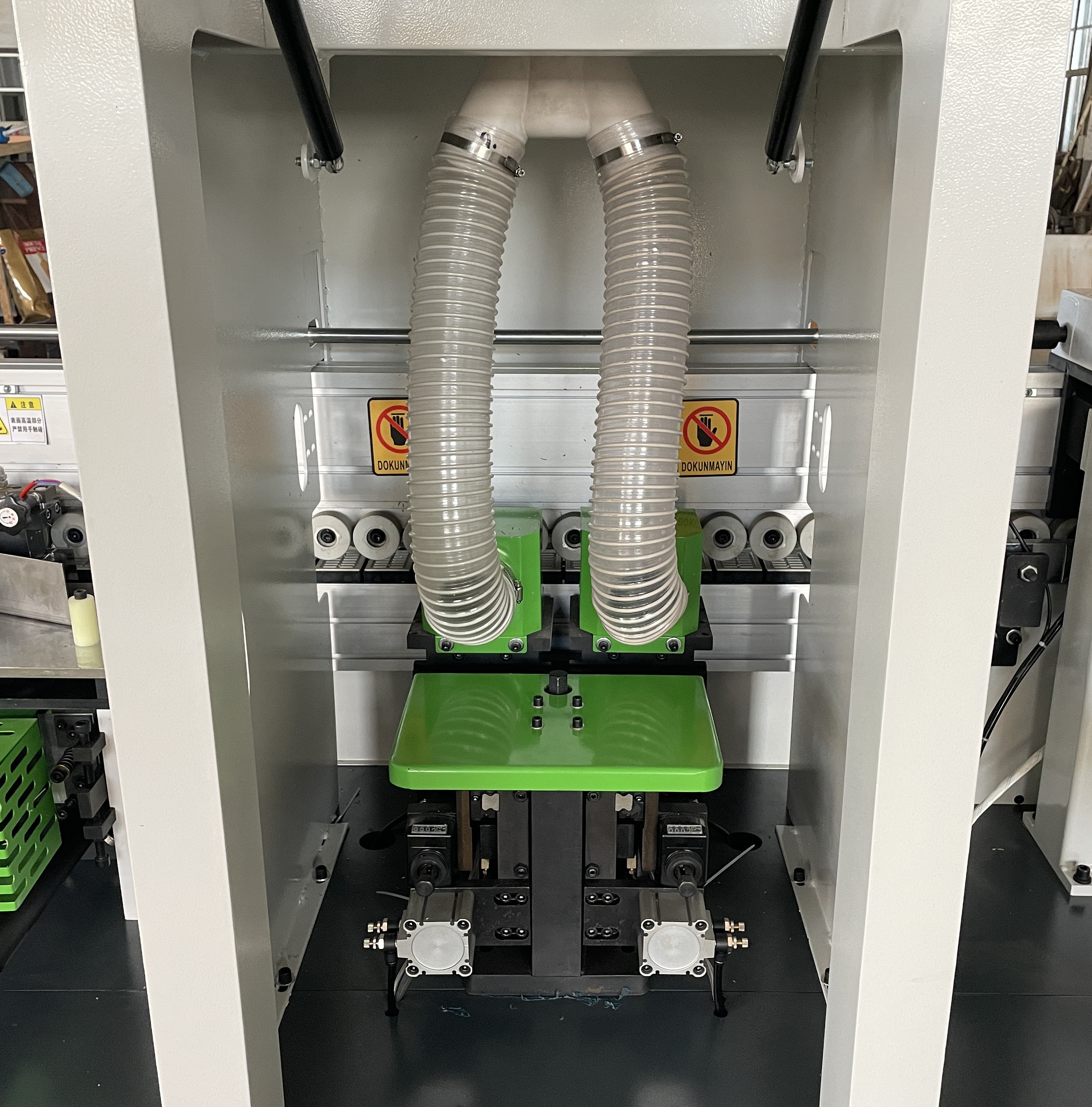

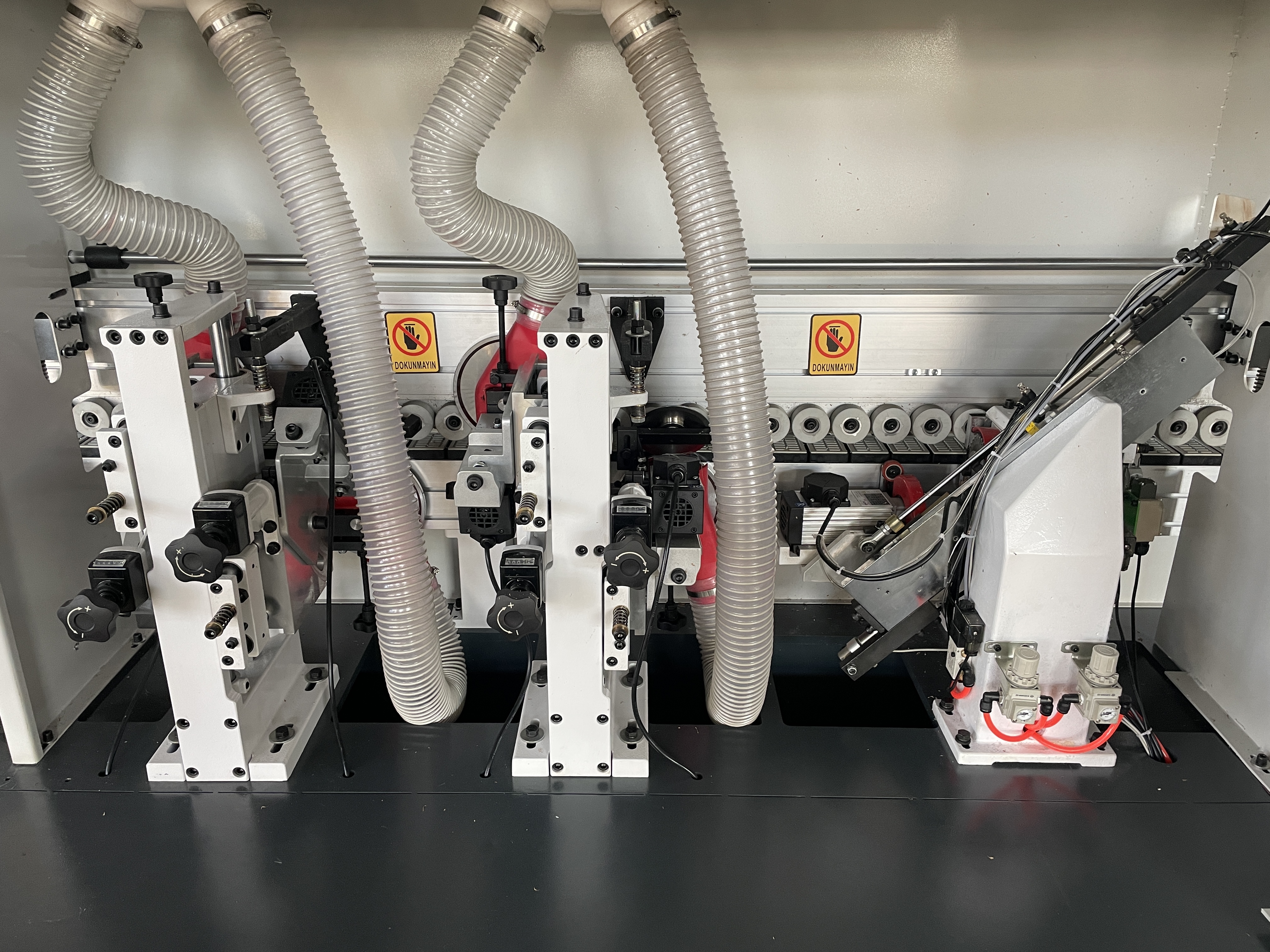

02.Pre milling device

Using double milling cutter to modify the phenomenon of mark and burr has achieved better edge sealing effect.

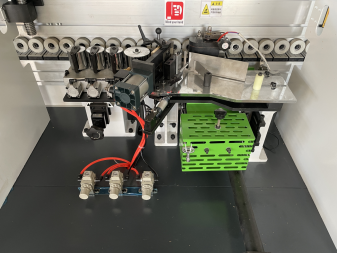

03.Adhesive tape

Apply glue by heating the glue pot and applying glue with imported scientific and technological structure, so that the glue plate and edge banding strip can be evenly applied, and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.

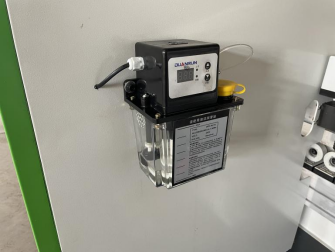

04.Automatic oiling device

Automatic oiling saves time and effort.

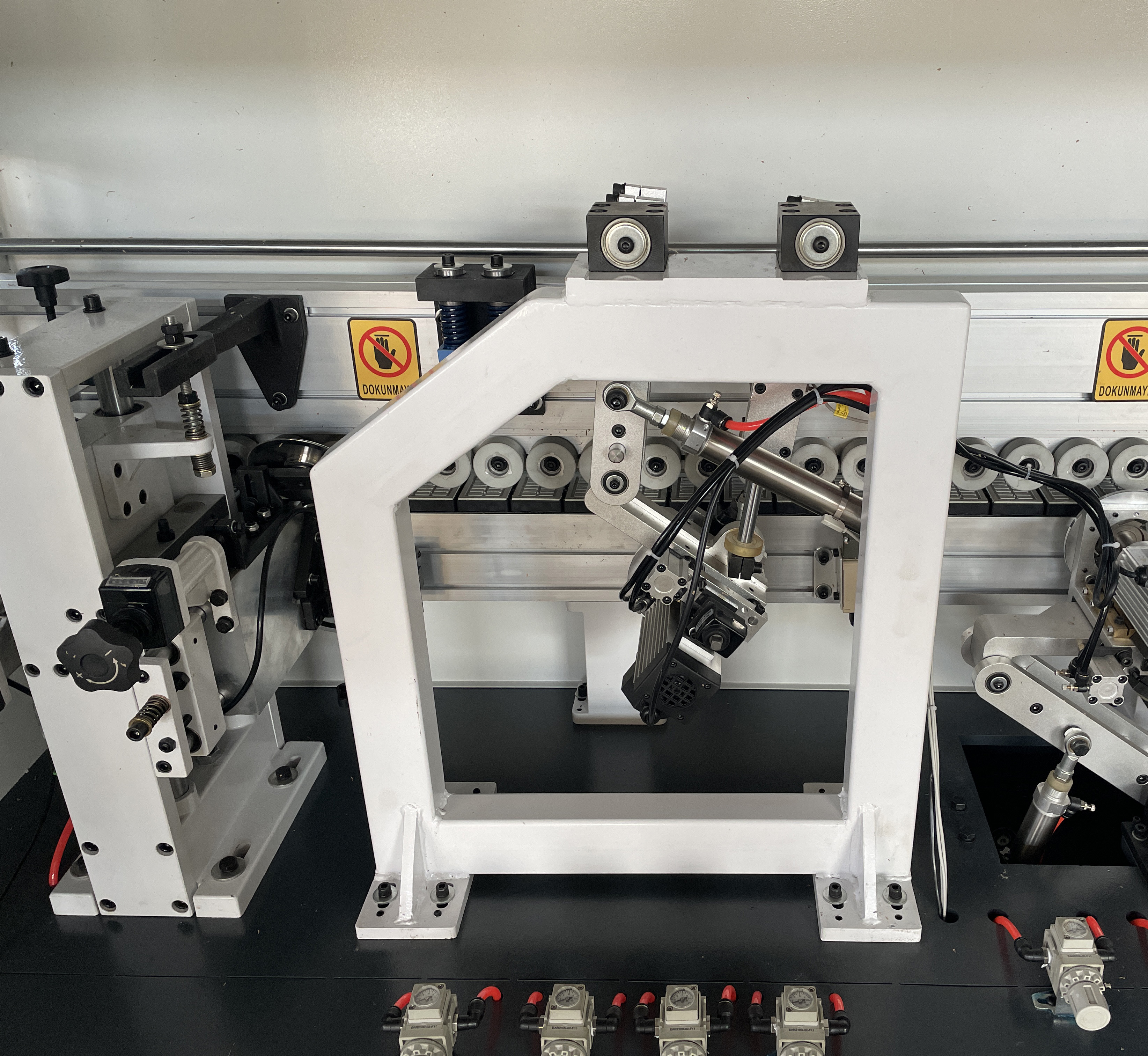

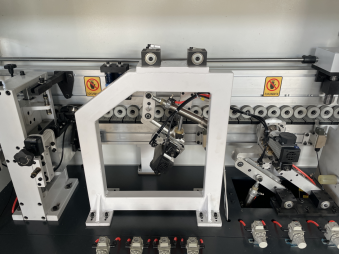

05.Front and back flush

Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

06.Pre milling device

Using double milling cutter to modify the phenomenon of mark and burr has achieved better edge sealing effect.

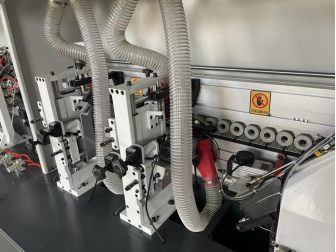

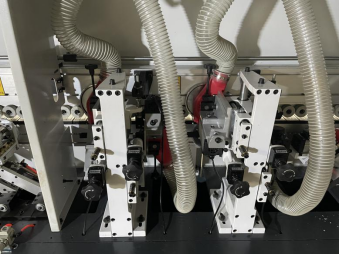

07.Finishing device

Repair the upper and lower redundant parts of the edge banding belt of the processed plate, and adopt the structure of automatic follow-up of the profiling and high-frequency high-speed motor to ensure that the upper and lower parts of the edge trimming plate are flat and smooth.

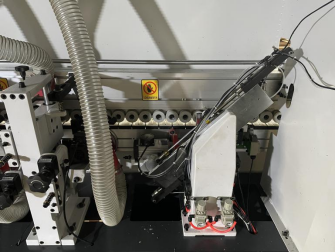

08.Profiling tracking chamfer

The profiling tracking chamfering device can make the section of the plate smoother and make the plate look more atmospheric.

09.Polishing device

Clean the processed plate with a cotton polishing wheel to remove the excess glue, and make the edge sealing end smoother by polishing.

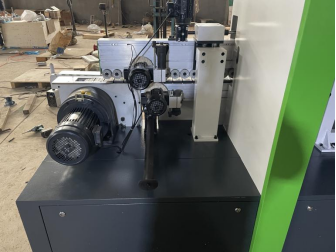

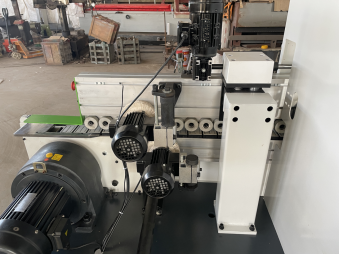

10.All copper reduction motor

All copper core motor, gear reduction, direct supply from the manufacturer, stable operation.
