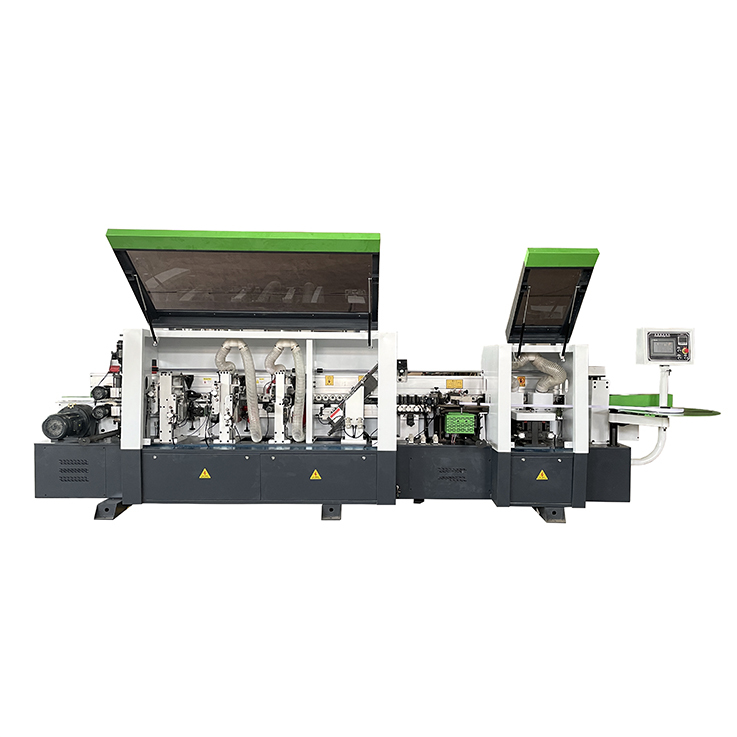

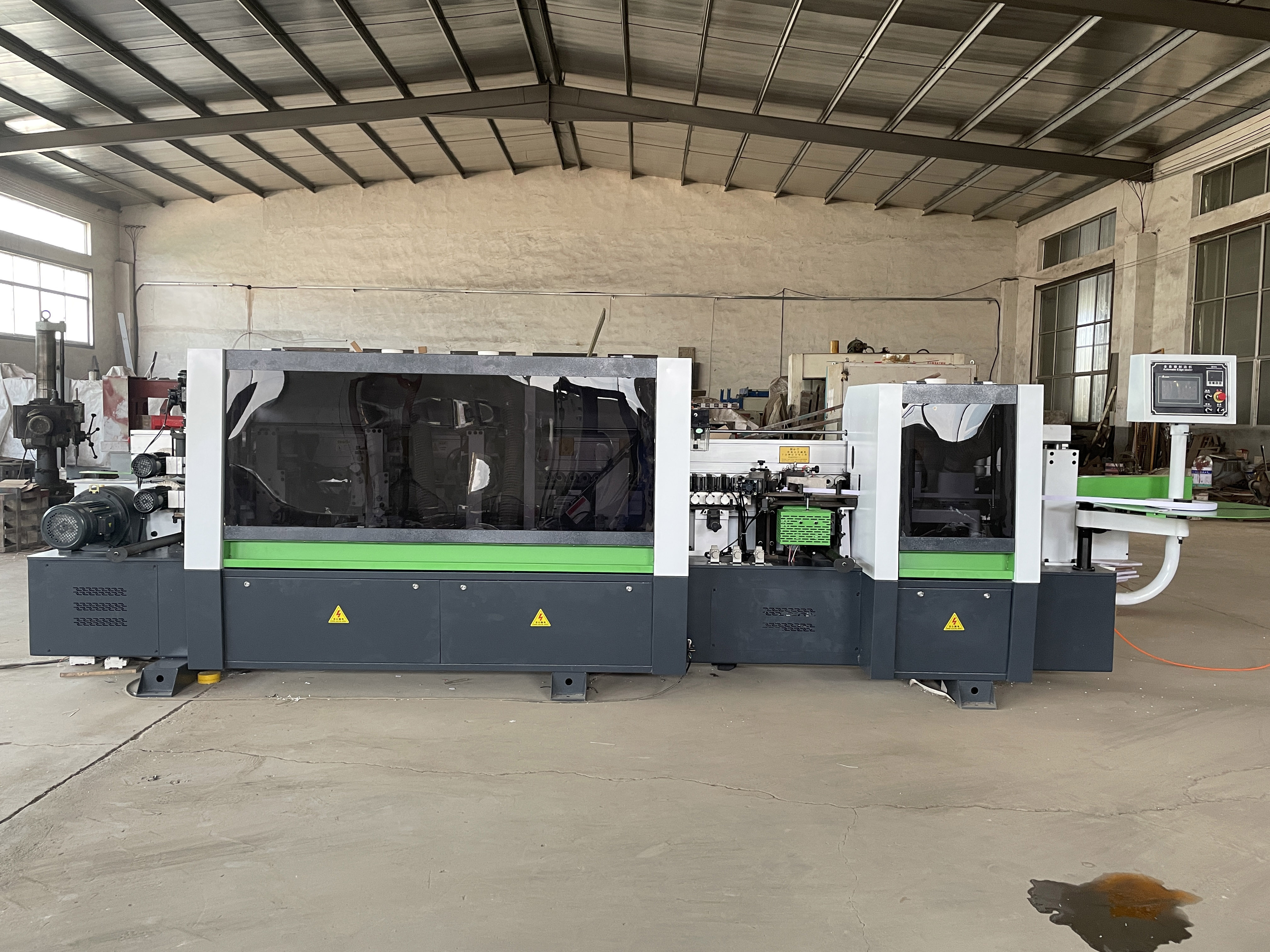

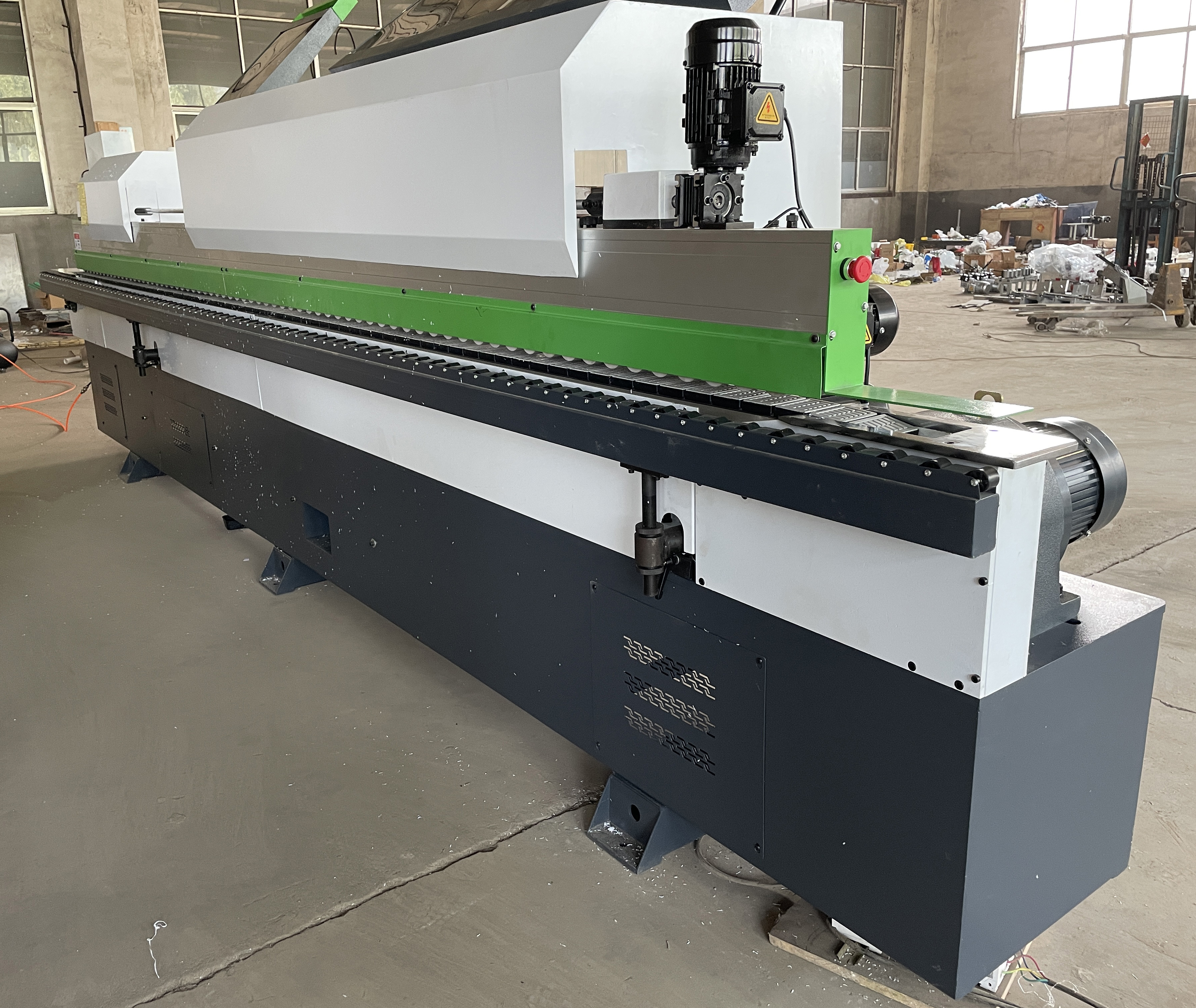

HAILIJU Dajidong B61 automatic edge banding machine
Dajidong B61 automatic edge banding machine
Dajidong B61 automatic edge banding machine
Product parameter
Total power 13.6kw Thickness of edge banding 0.4-3mm
Overall dimension 5100*980*1600mm Sheet width ≥40mm
Feed speed 12-20m/min Working pressure 0.8Mpa
Sheet thickness 10-60mm Weight 1.65T
Dajidong B61 automatic edge banding machine
Detailed function introduction

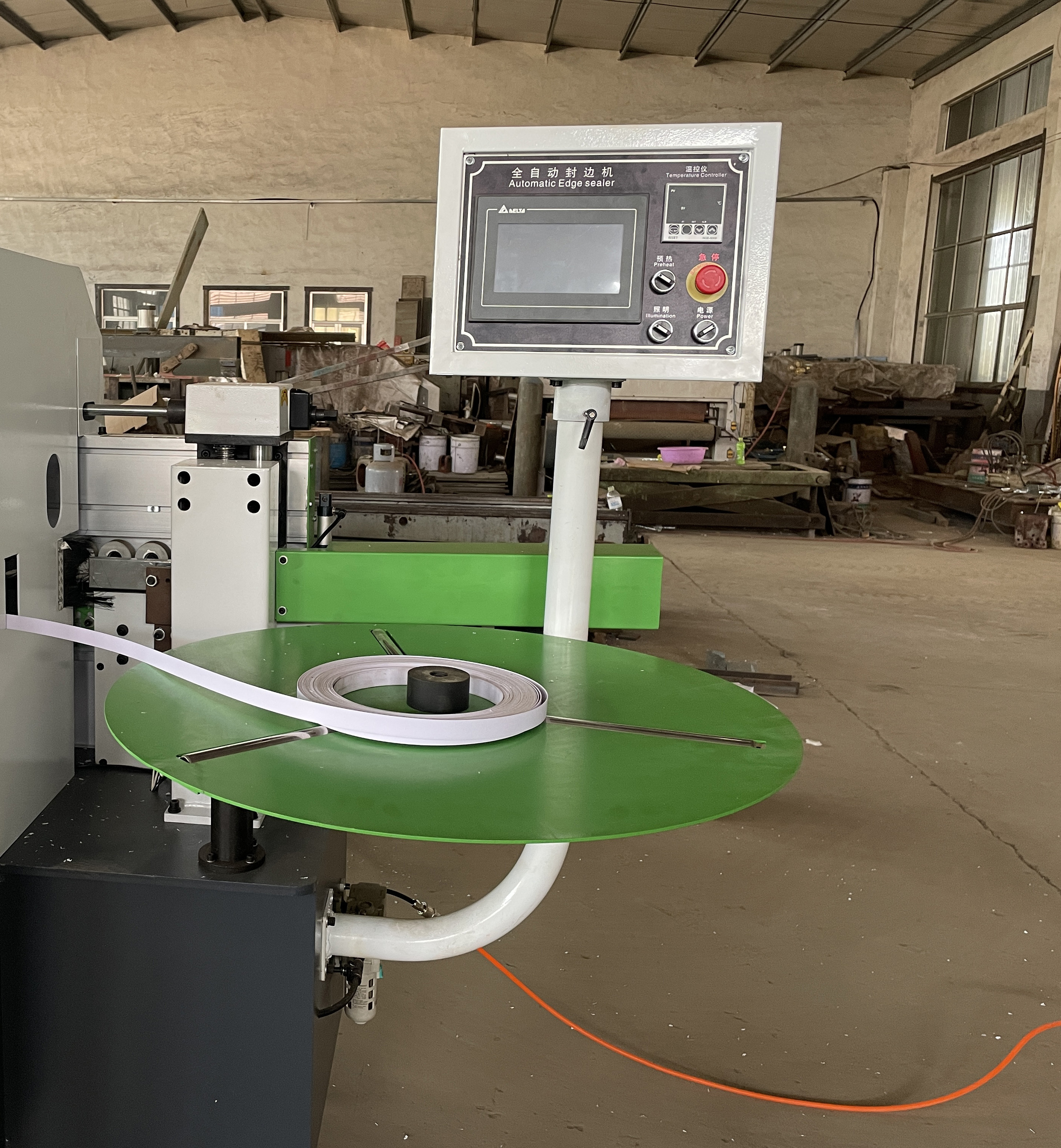

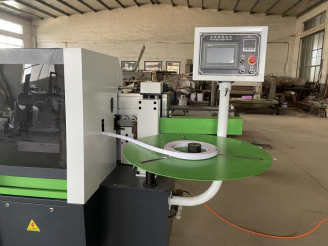

01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine, real-time monitoring, real-time adjustment and more accurate.

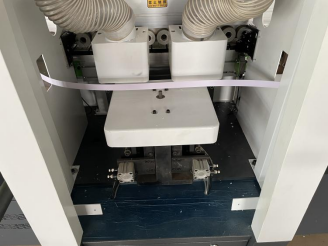

02.Pre milling device
Using double milling cutter to modify the phenomenon of mark and burr has achieved better edge sealing effect.
03.Adhesive tape
Apply glue by heating the glue pot and applying glue with imported scientific and technological structure, so that the glue plate and edge banding strip can be evenly applied, and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.
04.Front and back flush
Through professional linear guide rail movement, the profiling automatic following and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cutting section is flat and smooth.

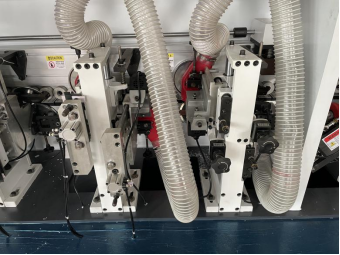

05.Pre milling device
The high hardness profiling wheel and profiling wheel are used to automatically track and finish trimming. The tool is made of high hardness alloy, and the manual digital display can be used to adjust the sleeve device, which can also trim up and down the edges of different thicknesses.
06.Finishing device
Automatic tracking of high hardness profiling wheel and profiling wheel pneumatic belt is used to complete precision trimming. The tool is made of high hardness alloy, and precision trimming is carried out for the parts after rough trimming and communication.
07.Edge scraping device
It is used to remove the ripple marks caused by trimming non-linear motion cutting process, so as to make the upper and lower parts of the plate more smooth and tidy.
08.Polishing device
Clean the processed plate with a cotton polishing wheel to remove the excess glue, and make the edge sealing end smoother by polishing.

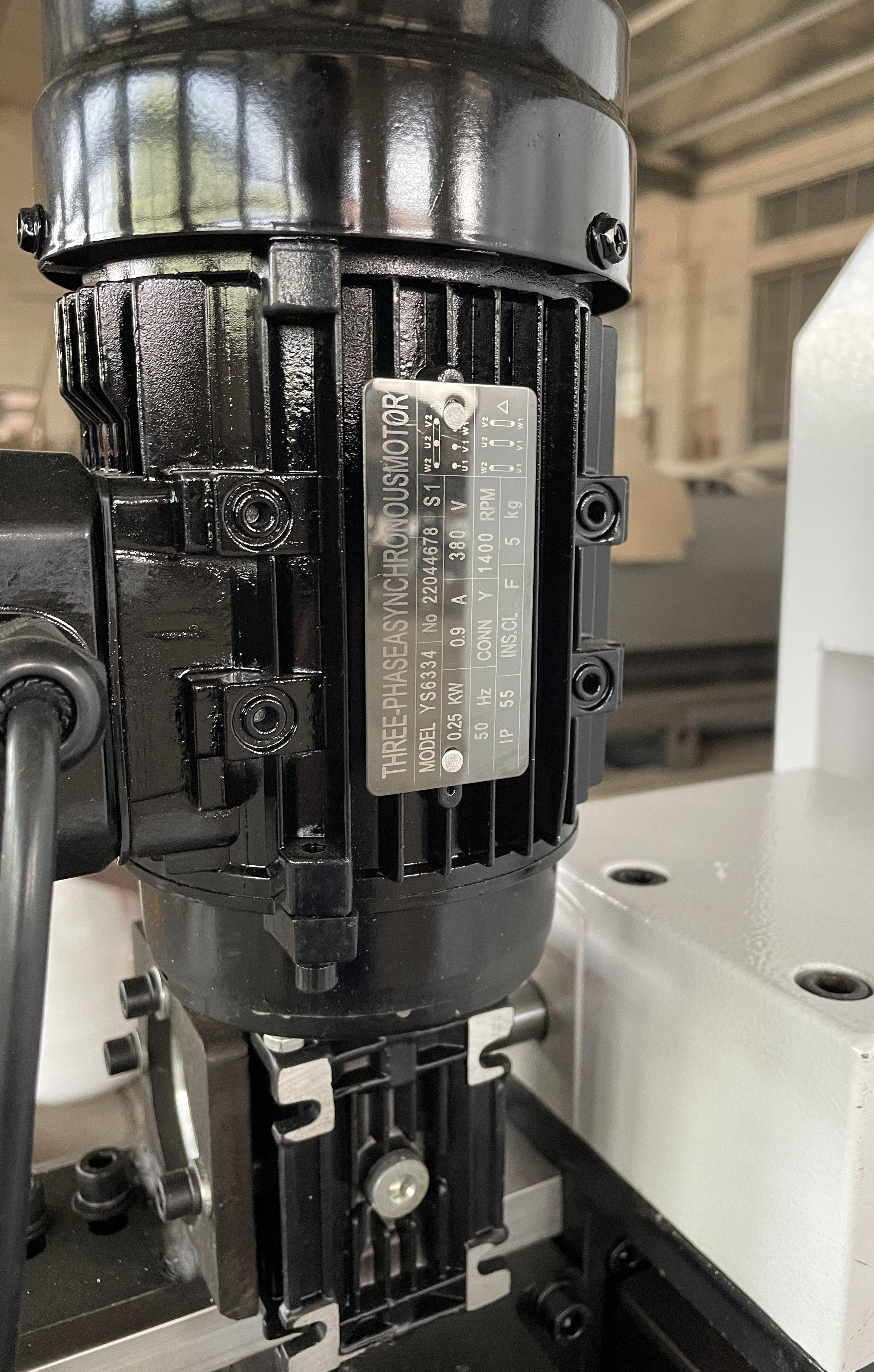

09.Pressure beam electric lifting motor
High quality pressure beam lifting motor has long service life and reliable quality.

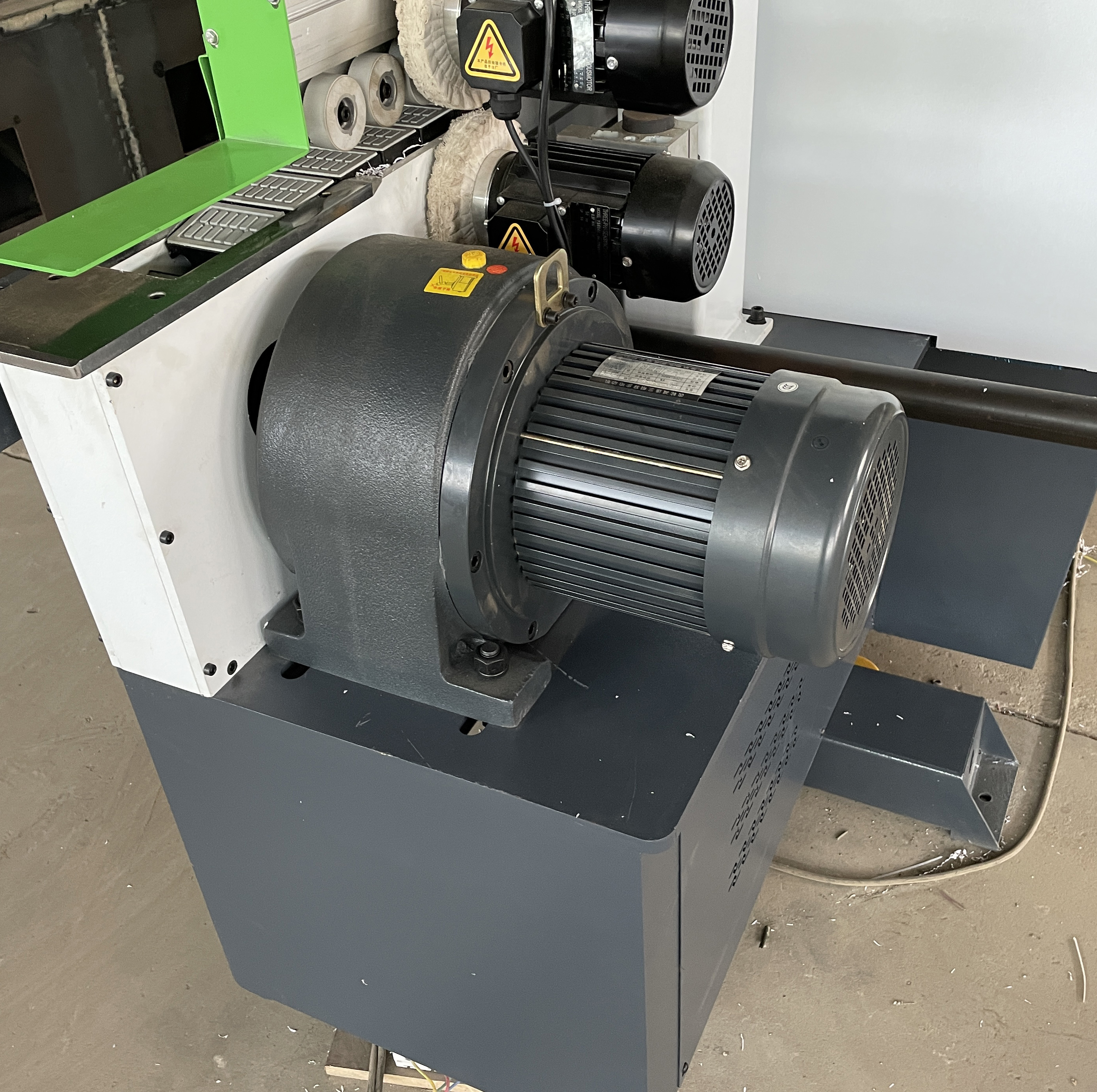

10.All copper reduction motor
All copper core motor, gear reduction, direct supply from the manufacturer, stable operation.
Dajidong B61 automatic edge banding machine
Certification
