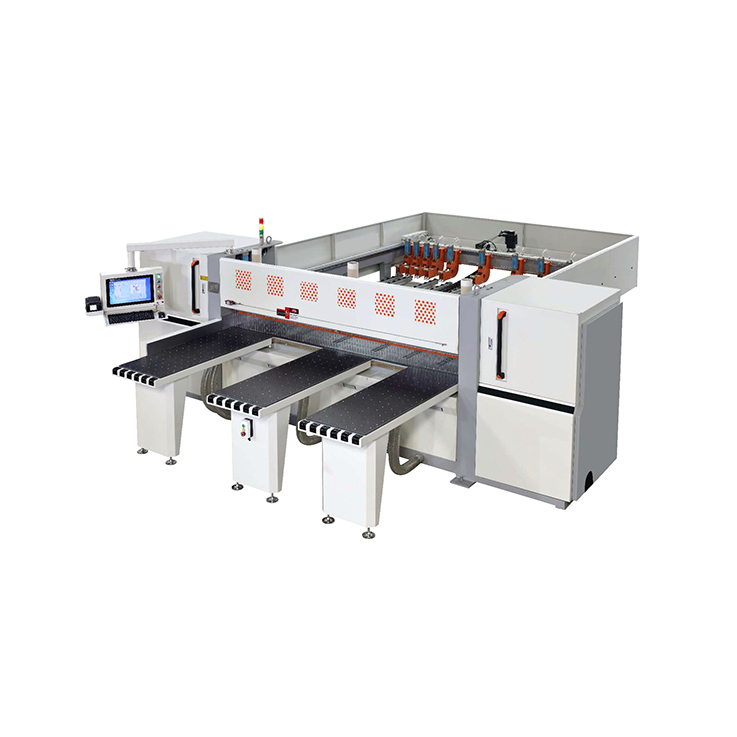

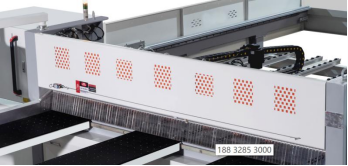

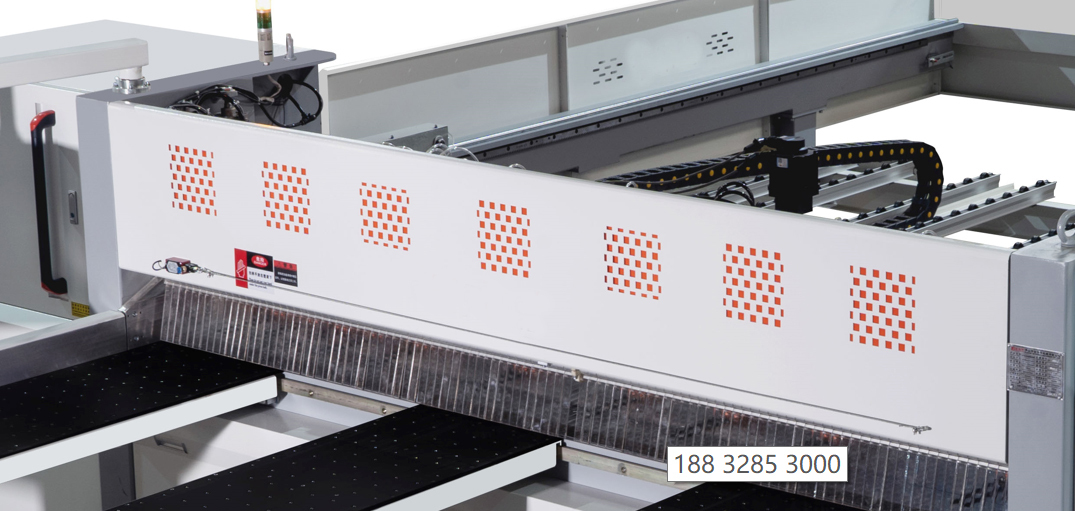

HAILIJU Computer panel saw（MJY-2850P）

Panel Saw Machine Panel Saw Machine For Sale Computer Beam Saw High Speed Cabinet Mdf Cnc Beam Saw Machine Wood Cutting Saw Machine Computer panel saw Computer panel saw（MJY-2850P）

Computer panel saw（MJY-2850P）

Computer panel saw（MJY-2850P）

Product  parameter

Model                                               MJY-2850P                                                     Max.Cutting lenght                                           2850MM

Max.Cutting thickness                80~100MM                                                    Positioning method                                           Automatic

Positioning accuracy                   ±0.02mm                                                        Cutting accuracy                                                 ±0.15mm

Main saw motor power             11kw                                                                Main saw blade diameter                                350~400mm

Main shaft diameter                   60mm                                                              Main saw speed                                                 3800r/min

Saw car servo motor power      1.5kw                                                      Mechanical hand servo motor                             1.5kw

Scoring saw motor power          2.2kw                                                      Vice saw blade diameter                                  180mm

Sub shaft diameter                      30mm                                                               Secondary saw speed                                        6100r/min

Feeding speed                              0~80M/min                                                      Cutting speed                                                       0~80M/min

Return speed                                0~120M/min                                                    Air pressure                                                          0.6-0.7MPA

Machine tool dimension           5200MM×5600MM                                          Net weight                                                            ≈3800KG

Total power                                  18kw

Computer panel saw（MJY-2850P）

Prodcuts details

01.Robot automatic

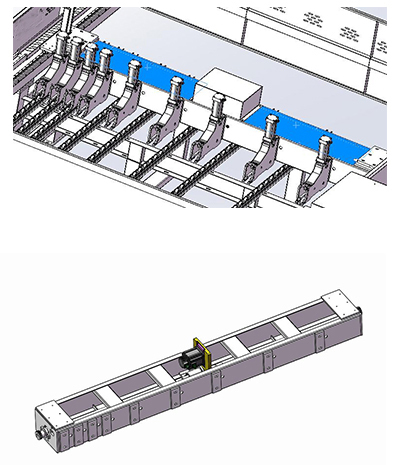

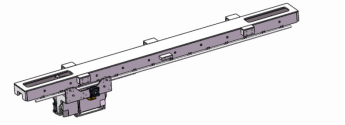

Feeding device Manipulator running beam device.

Robot automatic

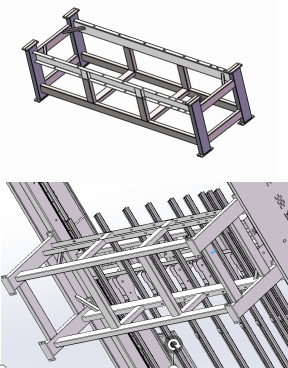

Feeding device Integrated support frame of left and right feeding beams.

Robot automatic



Grab plate push beam structure.

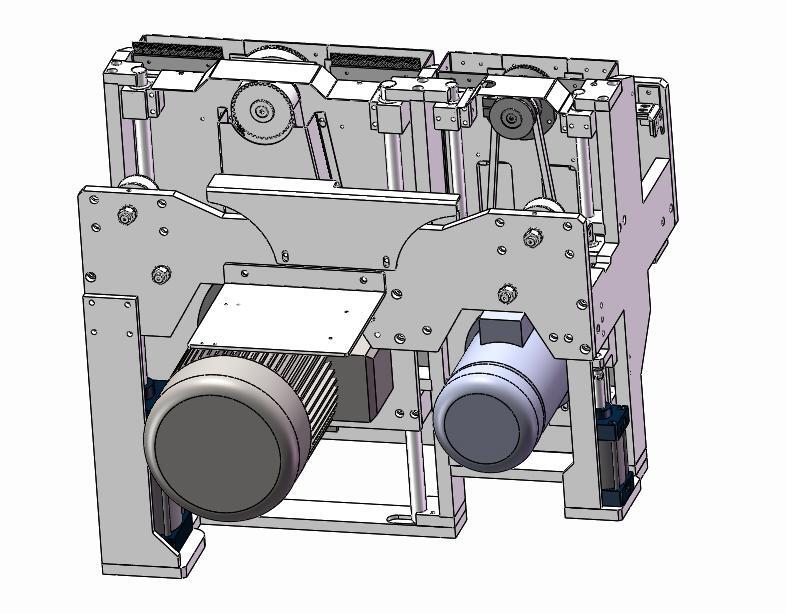

02.Saw car structure



The large and small saws are started independently and lifted vertically.Precise circular guide rail and slider.

03.Saw traction device

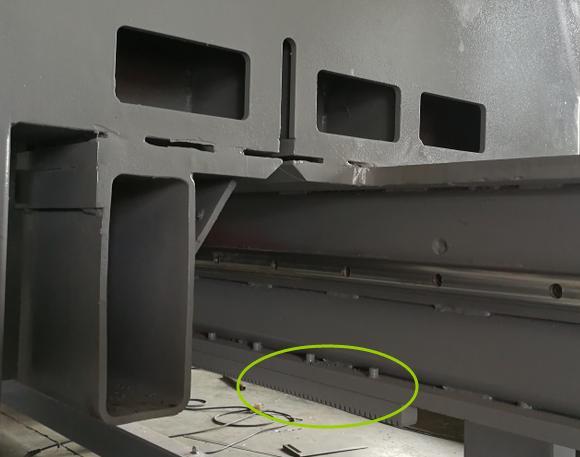

The sawing machine is driven by gear rack and servo motor.

04.Rack structure



18mm iron plate welding.

05.Transmission structure

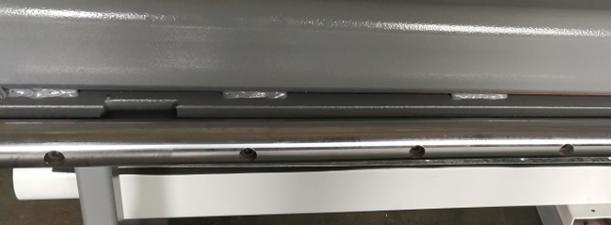

Guide rail device: high precision round imported from Taiwan φ 40 Guide rail Durable, wear-resistant, long-term guarantee of sawing accuracy and no deformation.

06.Electrical structure

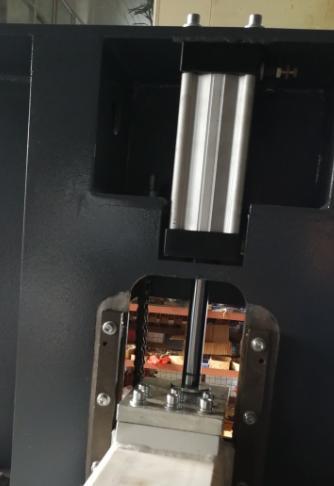

Pneumatic: cylinder diameter 80 * 100mm The pressure is greater, and multiple plates are not easy to slide.

07.electric machinery

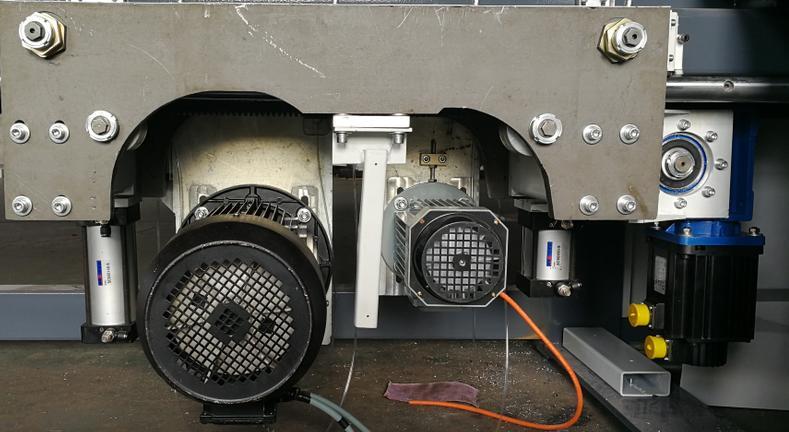

The main saw motor uses 11KW Small saw 2.2kw.

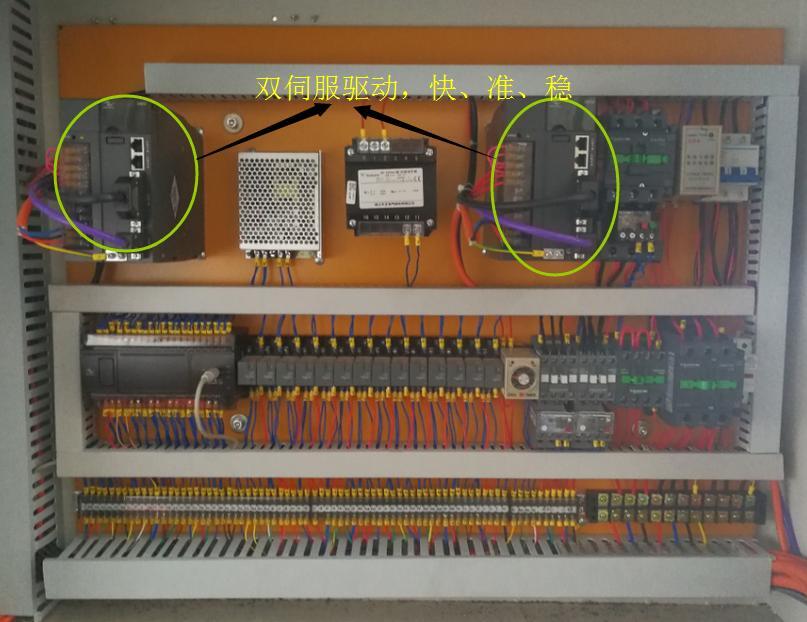

08.Electrical appliances

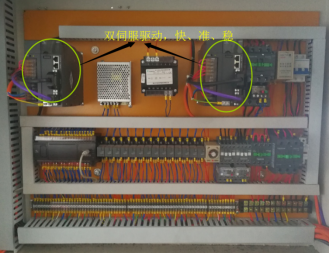

Huichuan PLC programming controller, imported electrical and contactor are used to extend the service life of the machine.Servo motor 1.5kw * 2.

09.Security structure



The manual pull wire emergency stop device is adopted at the feed inlet.Ensure more safety of personnel Transparent dust curtain can make the working environment cleaner and the sawing accuracy higher.

Computer panel saw（MJY-2850P）

Certification
