HAILIJU

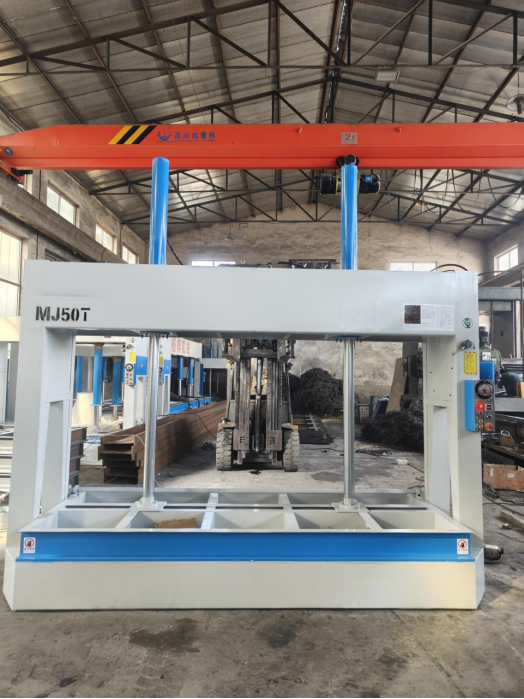

HAILIJU Cold press machine
Cold press machine
Technical parameter
Name Model 2500*1.25 trip1m
Pressing plate size 1250*2500
pressure 50T
Opening distance 1000m
Thickness of pressing plate 14mm
Installed power 4kw
Overall dimensions 2950*1300*2200mm
Net weight 1.9T
Pillar thickness 6mm
Top beam thickness 6mm
Hydraulic power 4kw
Motor brand Jubang Industry and Trade
Gears and racks one-plane balance
Number of oil cylinders 2 pieces
Oil cylinder specifications 140/125/90
Product details
01. Welded structure
The mesh type welding structure can make the whole table, make the pressure distribution uniform, and the pressing plate effect quality is better .
02.Gantry milling table
The table surface is processed by gantry milling to improve the precision of the pressing plate.
03. Heavy and thickened fuselage
The machine body is welded and formed by steel plate, and the table surface is processed by gantry milling, and the body is treated with anti-corrosion and rust removal.
04. Press plate lifting at constant speed
The lifting speed of the pressing plate is uniform, the pressure is uniform, and the working effect is better.
05. Integrated cylinder
The machine adopts integrated oil cylinder to ensure no oil leakage for a long time and achieve good pressure maintaining effect.
Certificate
