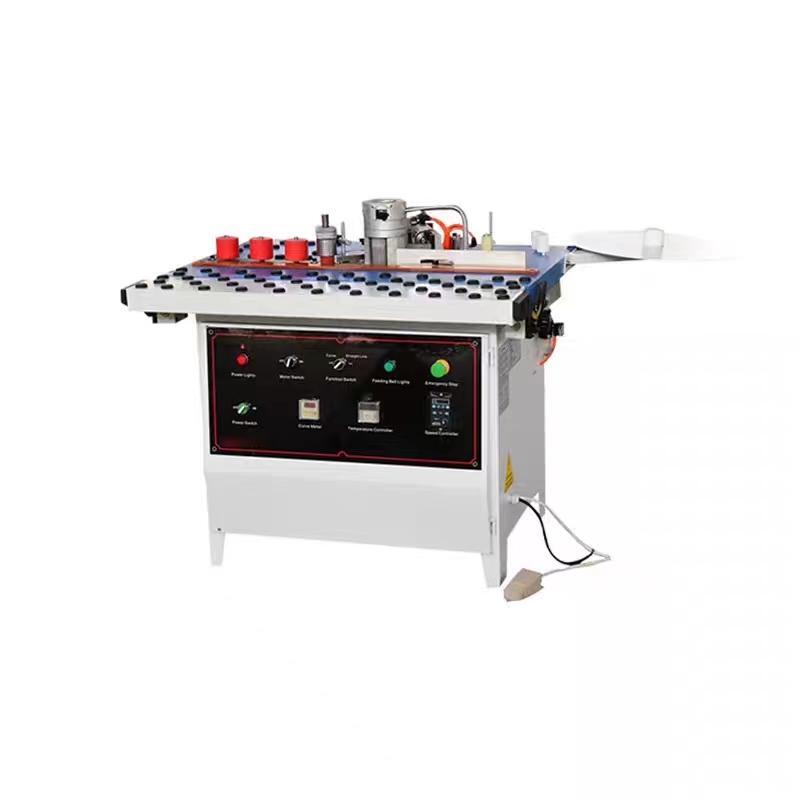

HAILIJU 45 degree edge banding machine
45 degree edge banding machine
45 degree edge banding machine
Product parameters
Edge sealing thickness 0.3-1.0mm Stretch film packaging dimensions 1100*740*1000mm
Edge width 15-50mm Wooden box size 1140*760*1100mm
Sealable angle 90°，45° Electrical machinery Elite motor
Cut to effective cutting area 50mm governor Stepless speed regulation
Heating plate (one size each) 1300W Temperature control Intelligent temperature control
Motor power 250W Switch Xianmei
Delivery speed 0.14m/min Motor configuration Pure copper high-efficiency motor
Air pressure greater than 16KG/cm2 Plates Sealable straight and inclined surfaces
Working power supply 2-phase 220V/3-phase 380V50Hz Glue pot Large capacity and high efficiency
Net machine weight 160kg Heating configuration Heating plate heating up quickly
45 degree edge banding machine
Product parameters

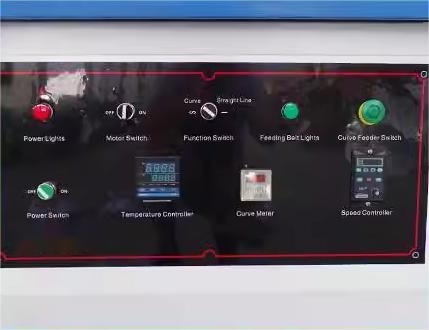

01. Automatic temperature control
The temperature controller can automatically control the temperature according to the required sol temperature for the edge banding machine and hot melt adhesive.

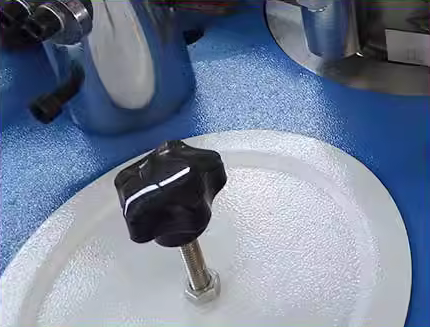

02.3 minutes preheating
Special rubber can insulation design, increased capacity and short preheating time.

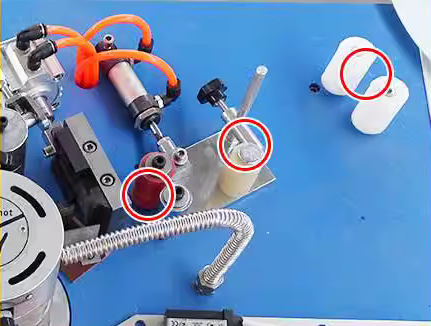

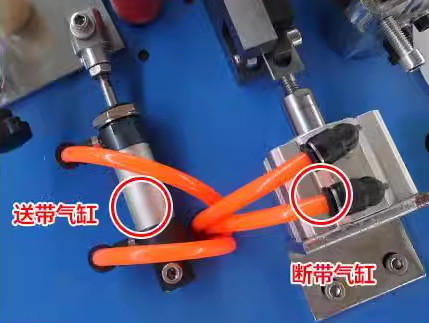

03. Dual cylinder automatic belt feeding/breaking
This machine is equipped with pneumatic belt feeding/breaking, which is precise and agile. High quality cylinder cutter with strong cutting force and long service life.
04. Large operating surface
The countertop is higher and larger, which conforms to ergonomics and is more comfortable to use.

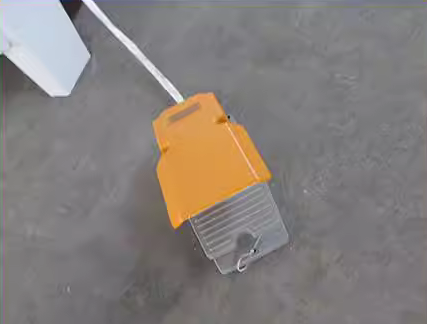

05. Intelligent single foot switch
Intelligent single foot switch to prevent disconnection in case of incorrect operation.

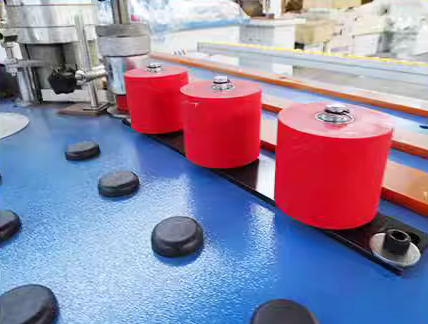

06. Anti deviation wheel
Three points and one line, auxiliary belt feeding to prevent deviation.

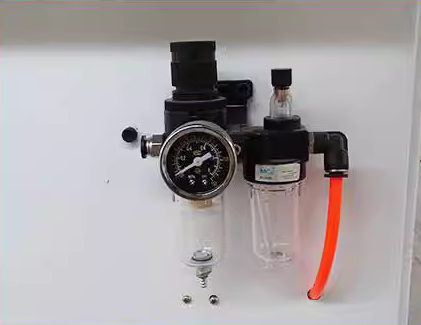

07. Oil water separator
Separate oil and water to improve machine

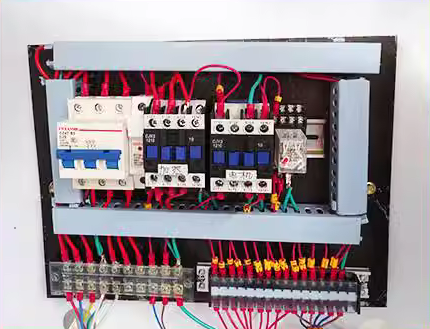

08. Distribution box
The wiring of the electrical box is neat and clear at a glance.
45 degree edge banding machine
Certificate
