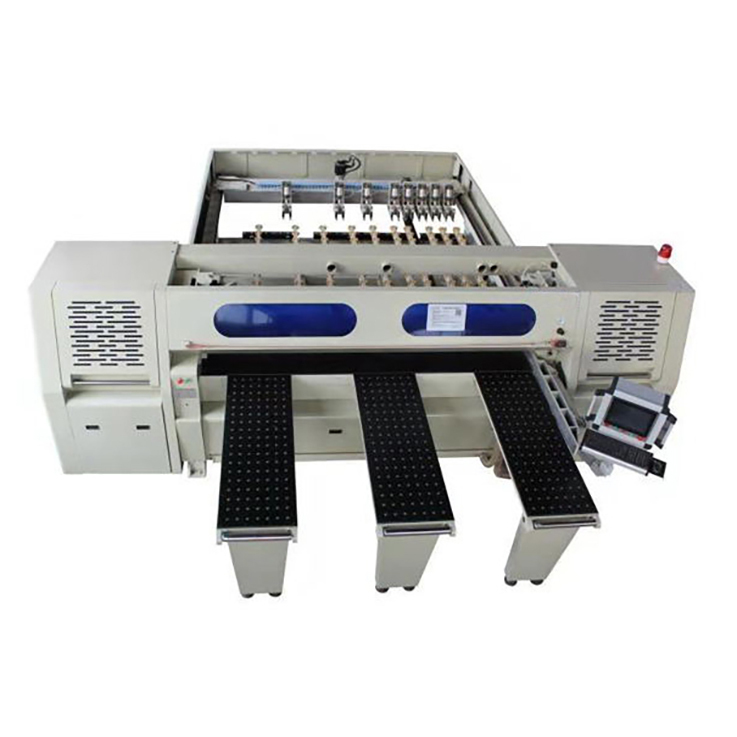

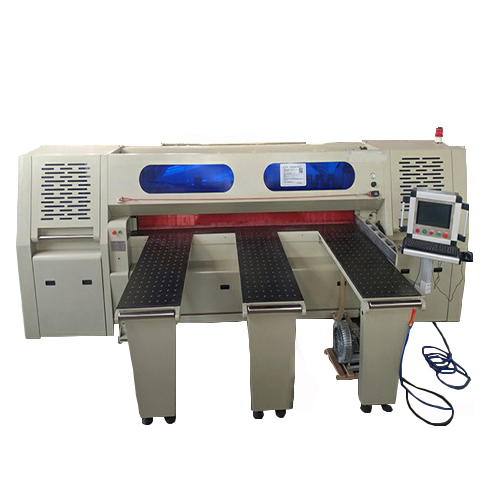

HAILIJU 3300PC-1CNC Beam saw machine
3300PC-1CNC Beam saw machine
3300PC-1CNC Beam saw machine
Product parameters
Product model 3300PC-1 Sawing length 3300mm Sawing thickness 75mm/100mm/120mm
Main saw blade diameter 355mm/400mm/460mm Main saw blade shaft diameter 30mm/60mm Main saw blade speed 3950/4500rpm
Saw blade diameter 180mm Saw blade shaft diameter 30mm Saw blade speed 5400rpm
Saw seat advance speed (stepless) 0-120m/min Saw seat retreating speed 60-120m/min Main saw motor 11kw/18kw
Sawing motor 1.5kw Saw seat drive servo motor 1.5kw Automatic feeding motor 1.5kw
Material pushing motor 2kw High pressure blower motor 2.2kw Automatic feeding speed 0-120m/min
Use air pressure 5-7kg/cm Height of workbench from the ground 950mm Net weight 6000kg
Machine size (length * width * height) 6100*6200*1700mm
3300PC-1CNC Beam saw machine
Product details
01.Steel ball air floating table
The air floating platform panel is made of melamine resin and phenolic resin by high temperature pressing.It has the characteristics of high mechanical properties, surface wear resistance, not easy to deform, aging and so on.In addition, the effect of pneumatic floating bead can achieve better cutting effect.
02. High performance servo manipulator
The servo manipulator grabs and controls the plate to be cut through the air cylinder to achieve stable and perfect push action.The upper, lower and front and rear are driven by air cylinders. High precision linear slide rails are used for walking,front and back, upper and lower arms, with high speed, low noise, accurate positioning, wear resistance,heat resistance, long service life and no deformation. The servo adopts Delta, the quality is guaranteed after sale.
03. German electronic ruler
Closed loop precision compensation and tolerance compensation of German electronic ruler ± 0.02mm high precision Swiss gear bar feeding walking mechanism.
04. Convenient saw blade loading and unloading system
The saw blade of the beam saw adopts a nut locking device, which is convenient for installation, disassembly and positioning.The main saw and the auxiliary saw of the beam saw can be raised and lowered, and the height can be adjusted.The size of the saw blade can be changed. The main saw blade and the auxiliary saw blade ensure the accuracy and surface finish when cutting.
05. Double servo control system
The electronic ruler implements precision compensation to reduce the error, and the automatic industrial control system is more stable.
06. Neat circuit control system
The electrical parts adopt international famous brands to ensure the stable and durable operation of the beam saw.
07. Practical touch screen control system
Safe and reliable operation, simple interface, with complete operation instructions and troubleshooting guidelines.It can edit and manage sawing scheme, edit and manage sawing task, and simulate sawing execution.Compatible with a variety of sawing optimization software, bar code management software, factory automation software integration.
08. Tracking down dust collector
The sawdust in the working process of the electronic cutting saw is sucked out to prevent the dust from blocking the saw blade.The processed product has ideal effect.
09. Pressure beam
The pressure beam of the beam saw is made of high-quality steel, with a thick rubber pad at the bottom. In addition,there is a large air cylinder on the left and right to drive the lifting, so that both sides of the pressure beam can be pressed up and down synchronously without damaging the plate surface.
10. Reinforced nylon wheel
The horizontal height of the reinforced nylon glass wheel is consistent, so that the plate surface is flat and pasted on the fluency wheel to prevent the plate from scratching and squeezing. The fluency wheel can rotate flexibly, so that the manipulator can easily drag the plate.
11. Two linear guides of saw carriage
The slider (Taiwan CSK) ensures the accuracy of the size of the cutting board, which is suitable for re cutting and has high speed.(Note: other brands of polished shaft, poor cutting size, difficult to re cut, slow speed)
12. Servo drive of saw carriage
The saw car adopts servo drive, with accurate size and high efficiency.
13. Three dimensional frame structure
The sawing car runs in the frame with stable performance and is suitable for heavy processing.
14. Rear frame structure
15 The left and right beams of manipulator are made of sliding rack
The left and right beams of the manipulator are all made of guide rail sliding rack, and the manipulator is running accurately, stably and rapidly.
16.Manipulator is servo driven
The manipulator adopts servo drive, with accurate size and higher efficiency.
17. Equipped with electronic ruler
Equipped with electronic ruler, calibration size, cutting plate more accurate.
