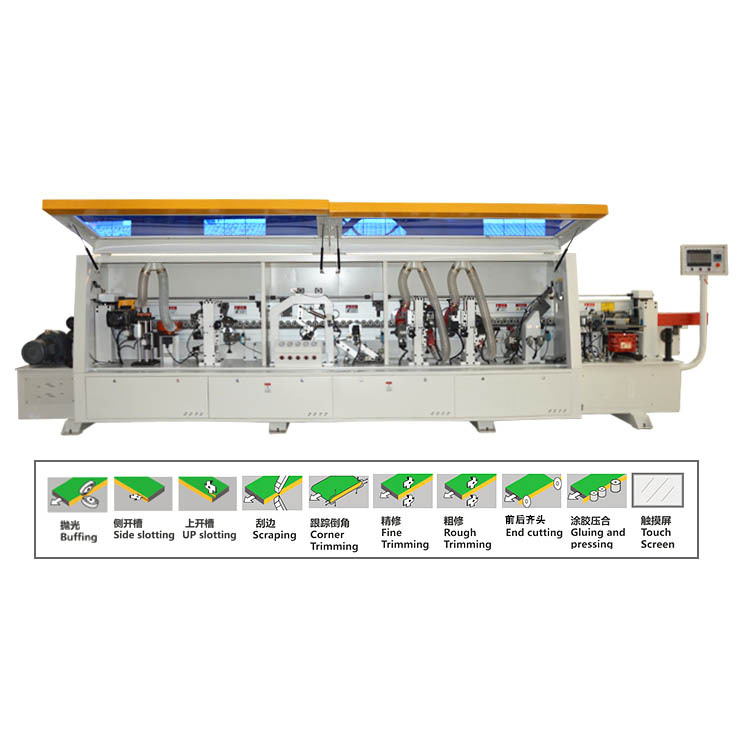

HAILIJU Slotting and edge sealing all-in-one machine
Slotting and edge sealing all-in-one machine
Slotting and edge sealing all-in-one machine
Product parameters
Product name Automatic edge banding machine Working air pressure 0.6Mpa
Panel thickness 8-60MM Machine size 2500*900*1600mm
Min working width ≥45mm Feeder speed 18-24m/min
Min working length ≥70mm Total power 16Kw
Edge bander thickness 0.3-3mm Weight 1800Kg(1.8T)
Voltage 380v/50hz Min edge banding thickness 45mm

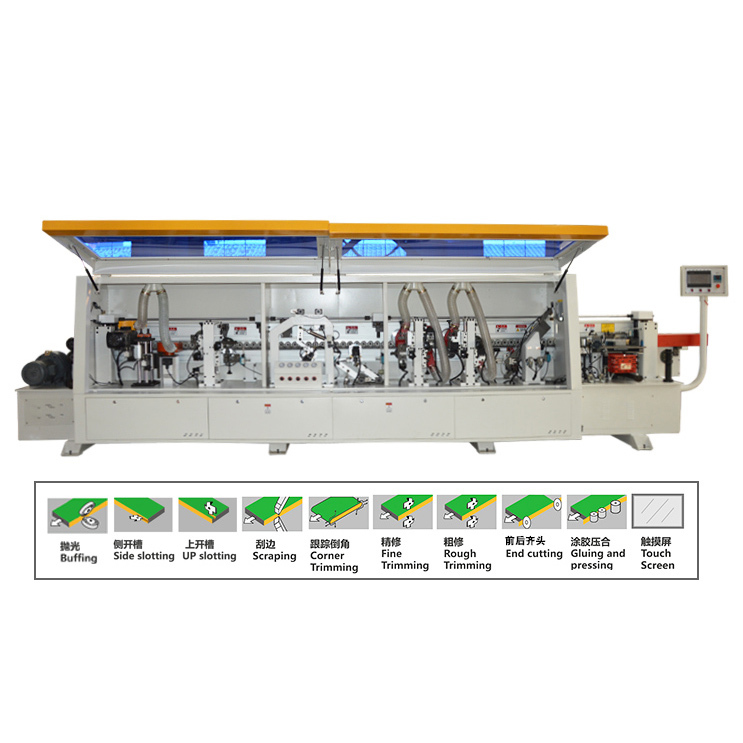

Slotting and edge sealing all-in-one machine
Detailed function introduction
01. PLC intelligent control
The independent LCD screen can more clearly and comprehensively see the operation process of the machine,real-time monitoring, real-time adjustment and more accurate.
02.Adhesive tape
Apply glue by heating the glue pot and applying glue with imported scientific and technological structure,so that the glue plate and edge banding strip can be evenly applied, and the edge banding belt and plate can be pressed tightly through the pressing wheel to bond firmly.

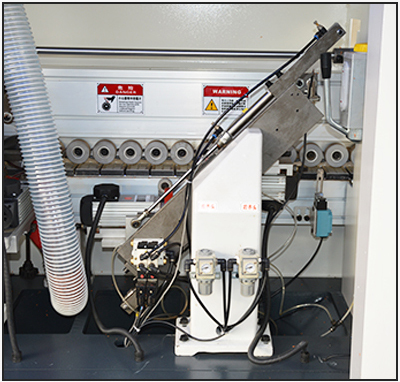

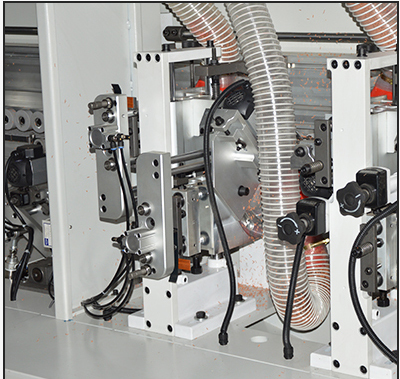

03. End trimming device
The front and rear end trimming device adopts German Haomai structure, with fast trimming speed and accurate cutting.Taiwan silver guide rail is selected, which runs stably and accurately. Through the precise linear guide rail movement,the structure of automatic profiling tracking and fast cutting by high-frequency high-speed motor is adopted to ensure that the cutting section is flat and smooth.A trimming protection device is installed to avoid the damage of improper operation.

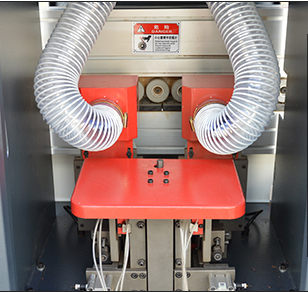

04. Rough trimming device
The rough trimming knife is a flat knife to prevent the wood skin from breaking when sealing thin skin.Rough trimming knife is used in the first flat knife process of PVC acrylic edge sealing,which can reduce the cutting rate and wear of props and have a long service life. For example,it is recommended to use the rough trimming function for sealing the edge cover above 1.2mm.

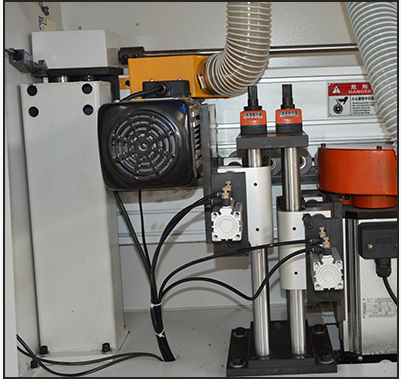

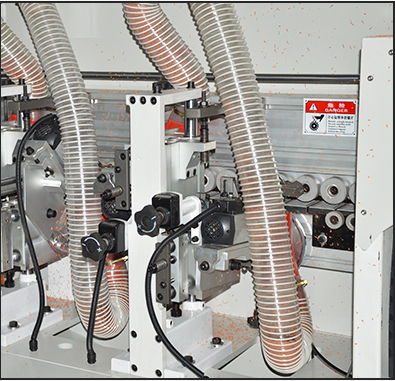

05. Fine trimming device
The linear bearing imported from Korea is adopted, and the structure of automatic tracking profiling wheel and high-speed motor are added. It is processed and formed at one time,and the error is as low as 0.02mm. The highlight of oblique trimming st g is that when sealing the edge sealing rip with high brightness such as acrylic, the edge sealing strip will not be scratched and will not.

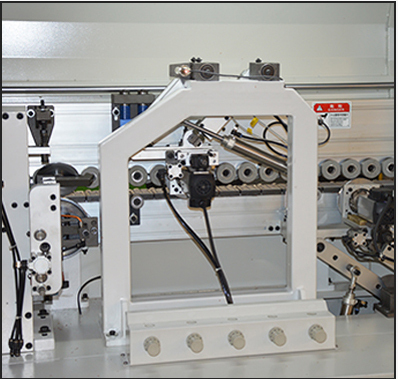

06. Rounding device
The profiling tracking and rounding device can make the section of the plate more smooth and beautiful.
07. Edge scraping device
The edge scraping device is used to eliminate the ripple marks caused by the cutting process due to the non-linear movement of trimming, so as to make the upper and lower parts of the plate more smooth and tidy.
08. Vertical slotting device
It can be used for slotting the back plate and edge sealing of plates, which is more convenient for one-time completion.
09. Horizontal slotting device
It can be used for the direct slotting of wardrobe side plate and floor, and also for the slotting of aluminum wrapped edge of door plate, so as to reduce the process of panel saw or vertical milling machine。

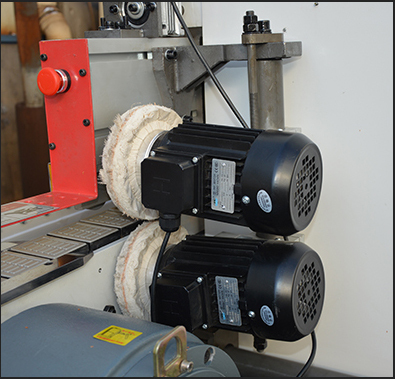

10. Polishing device
Clean the processed plate with the face value polishing wheel, and make the edge sealing section more smooth through polishing.
Additional functions can be added to meet your different needs

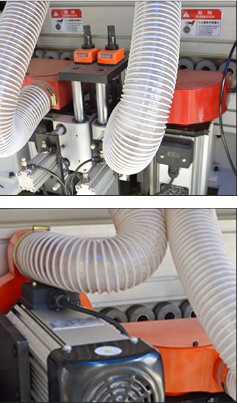

01.Pre milling device
Double milling cutters are used to modify the marks and burrs again,so as to achieve better edge sealing effect.
02.Slotting device
Horizontal slotting and vertical slotting are used for direct slotting of side plate,door pocket line and back plate, reducing the working procedures of panel saw and vertical milling machine,forming at one time, convenient and fast.
03.Profiling tracking device
The profiling tracking and rounding device can make the end face of the plate more smooth,and the plate with profiling tracking function looks more high-end and atmospheric.
04.Flat scraping device
After scraping, the plate is scraped and trimmed again, and the effect is good.
05.Wire breaking device
Cut off the excess trimming chips and do not roll the excess trimming chips onto the polishing wheel.
06.Double guide rail trimming device
The trimming head adopts double guide rails and double motors work separately,which has high trimming efficiency and fast edge sealing speed.
07.Small plate feeding device
When sealing the narrow plate, the feeding device can be raised,so as to more accurately and conveniently seal the narrow plate.
08. Manual tool adjustment mode
The traditional handle adjustment is adopted, and the size of the eye counter is adjusted.For example, the 1.5mm edge banding strip can be directly rotated to the value 00015, which is convenient and fast.
09.Pneumatic leather clip adjustment mode
Without adjustment, the edge banding strip can be cut directly and clamped on the clamping piece above the function. There is no need to adjust manually.This method is pneumatic automatic identification, convenient and practical.
10.Selection and adjustment mode of
pneumatic knife adjusting screen
The thickness of the edge banding strip is in the display screen.The thickness of the edge banding strip depends on the thickness of the edge banding strip.One click operation can work efficiently.
Slotting and edge sealing all-in-one machine
Certification
